Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHC800036 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Brand Name:: | UVIR | Ring Diameter:: | 180mm |
|---|---|---|---|
| Reflector:: | WIth White | Warranty(Year):: | 1-Year |
| Material:: | Quartz Tube | Input Voltage(V):: | 230 |
| Highlight: | O Type Ring Infrared Lamps,Ring Infrared Lamps Transparent Pitted |
||

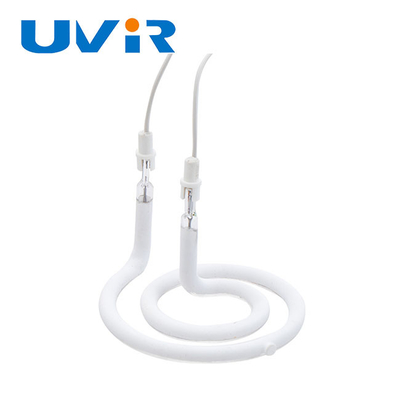

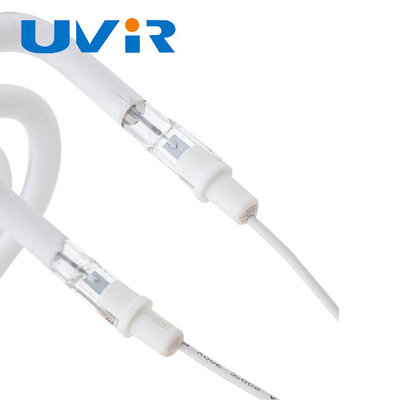

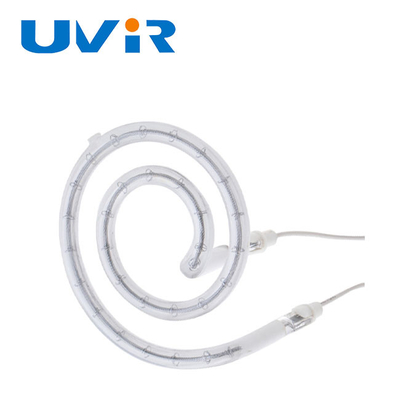

High Efficiency O Type White Ring Infrared Lamps Transparent Pitted Quartz Glass Filament
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
| Filament | Tungstan&Glass |
| Tube Color | White |
| Wavelength | 1.2μm |
| Voltage | 230V |
| Power | 5000W |
| Color Temp | 2450K |
| Common Diameter | 14mm |
| Life Time | 5000Hours |
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
Product Coding Rule Table:
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
* Expert sales teams are responsible for accurate communication.
* Professional technical teams are responsible for new product development.
* Technical production teams are responsible for assembly line production.
* Expert quality inspection teams are responsible for quality inspection.
* Experienced after-sales teams are for all customers.
Application
- Heater
- Plastic forming
- Bottle blowing
- Paint drying
- Food catering/processing and etc.
- Pre-heating of PET perform
- Fusing printing ink
- Drying process in paper mill
- Plastics thermoforming
- Silicon wafer manufacturing process in Semiconductor
- And various kind of drying processes
FAQ
1.What about the lead time?
15 days after receive your payment.
2.How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
3.About after-sale service?
Any quality issue, once confirmed, we will compensate our customer.
4.Where is your factory located?How can i visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome all the clients at home and broad to visit us!
