Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHC800029 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Heating Element: | Halogen Quartz | Name: | Heating Lamps |
|---|---|---|---|
| Power: | 1000W | Application: | Heater, Car Painting, Printing, Etc. |
| Wave Length: | Short Wave | Standard Packing: | Industrial Card / Single White Box |
| Voltage: | 240V | Tube Diameter: | 8mm |
| IR Diameter: | 65mm | ||
| Highlight: | PET Machine Ring Infrared Lamps,480V Ring Infrared Lamps,6000W Halogen Heater Rod |
||

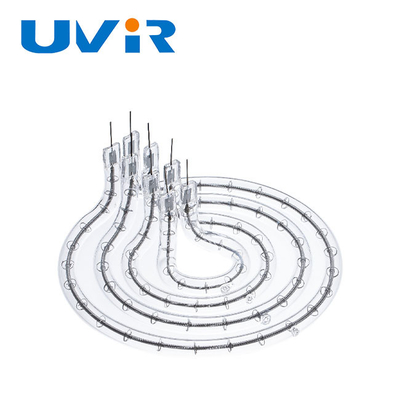

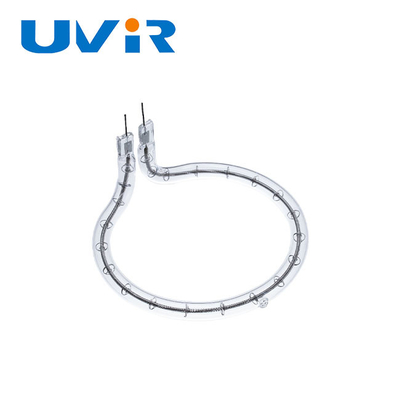

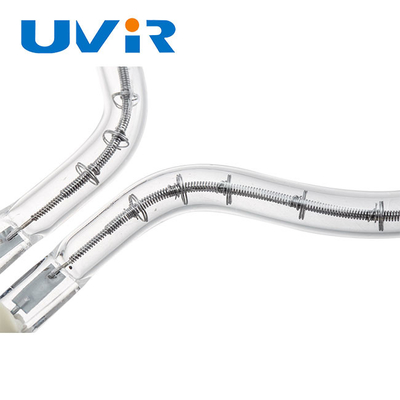

Quartz tube Ring Infrared Lamps , 240V 1000W Halogen Heater Rod
Main Design Characteristics
●Ring diameter from 39 up to 600 mm
●Voltage from 24 to 575 V
●Short, Medium and Long-Wave IR designs
●Availability in various tube colors
●The tube diameter can be from 8 - 14 mm.
Its selection depends on the heater' S diameter
and the voltage/wattage relationship
Standard stock items for immediate delivery
●Custom and OEM designs are available
Product information:
| Filament | Halogen |
| Coating | Without Coating |
| Tube diameter | 8mm |
| Voltage | 240V |
| Power | 1000W |
|
Certification: |
ce, CE, ROHS |
| IR Diameter | 65mm |
| Life Time | 5000Hours |
Product details
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
Product Coding Rule Table:
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.
SELECTED INFRARED HEATING APPLICATIONS
- Plastic forming
- Bottle blowing
- Paint drying
- Food catering/processing and etc.
- Pre-heating of PET perform
- Fusing printing ink
- Drying process in paper mill
- Plastics thermoforming
- Silicon wafer manufacturing process in Semiconductor
- And various kind of drying processes
FAQ
1. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
2. Could you provide sample for performance testing and appearance checking?
Yes, we can provide the sample based on your required specs.
3. Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will confirm with you whether it's free sample or not.
4. Where is your factory? Can I visit your factory?
We're in city Changzhou, middle of China. It's 1 hour by train from Shanghai, 2 hours by plane from Guangzhou.
You are warmly welcome to our factory, we will be happy to show you our production, QC, warehouse, etc.
