Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHG800063 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Name:: | Infrared Quartz Heat Lamp | Usage:: | Heating |
|---|---|---|---|
| Business Type:: | Manufacturer, Trading | Specification:: | OEM |
| Tube Material:: | Quartz Glass Tube | Voltage:: | 115V |
| Application:: | Drying, Heating, Printing | Certification:: | CE, ROHS ,ISO9001 |
| Power:: | 250W | ||
| Highlight: | Ring Halogen Infrared Heat Lamp,OEM Halogen Infrared Heat Lamp,infrared halogen lamp 115V 250W |
||

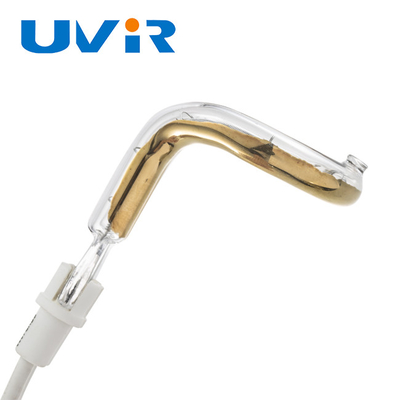

OEM Industrial Halogen Infrared Heat Lamp For Food And Chemical Industry
IR LAMPS
A tubular quartz infrared lamp is double side by tungsten coat quartz lamp light source with high power supply startup. The light source is a tungsten halogen lamp series.The light source can prevent darkened bulb,and prevent the use of infrared in the recession. Benefits in industrial application is efficient, responsive for power control, compact and light. According to different types, light position can level or any position. IR infrared lamp is a kind of industrial equipment used in the infrared heating and drying of the original. Clean with heats up quickly, heating process, long life light characteristics. It is widely used in plastic processing, print, copy, oven, infrared tunnel oven, auto paint lamp industry.
The Advantages Of UVIR Heat Lamp
Carbon fiber heat lamp
1.High-priced imported carbon fiber filament.
2.The finished filament is smooth and does not fluff.
3.The optimum power and maximum longevity.
Guartz glass tube
1.High quality high-temperature quartz glass.
2.Long serving life: over 5000 hours.
3.nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Product information
| Pipe diameter | 8mm |
| IR Diameter | 39mm |
| Voltage | 115V |
| Power | 250W |
| Wavelength | Short wave, medium wave, long wave |
| Coating | Gold/White/Clear |
| Shape | Ring, oval, omega, etc., can be customized according to customer requirements |

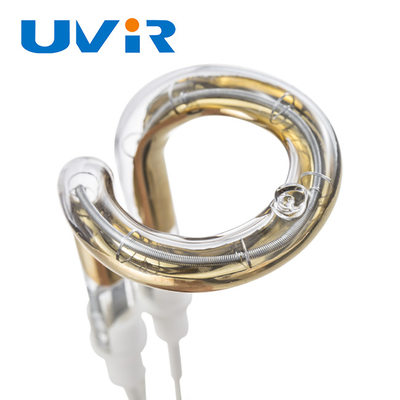

Ring Tube IR Lamps
Special Designs for Circular
2,3-D Surfaces
Main Design Characteristics
●Ring diameter from 39 up to 600 mm
●Voltage from 24 to 575 V
●Short, Medium and Long-Wave IR designs
●Availability in various tube colors
●The tube diameter can be from 8- 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
Standard stock items for immediate delivery
●Custom and OEM designs are available
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
Applications
-Laminating paper,plastics,metal,textiles
-Coating paints,adhesives
-Stretching foil
-High temperature disinfection
-Food catering backing,heating and heat preservation
-Industrial production oven.
-Car painting
-Wood drying and preheating before painting
-Beauty apparatus,infrared physical therapy care
-Drying for Shoes making machine
-Heating of PET preforms for bottles prior to strech-blow molding
-Heating PVC flooring prior to embossing
-Curing ink on plastic
-Curing water based reflective paint on aluminium light cluster
-Coating of lacquer to preserve metal tubes for pipelines
-Gelling and curing of powder coating on metal bottle openers
FAQ
1. What type of payment do you accept?
T/T, L/C.
We also accept Paypal, Aliexpress, Western Union for small amount.
2. Is it OK to print my logo on product?
Yes, it’s possible. But please kindly note we have MOQ request for different products. We highly recommend you using LiangDi brand, we will offer you extra discount.
3.. What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.
4. What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Generally, the lead time of MOQ is about 13 days. We suggest that you start inquiry at least two months before the date you would like to get the products at your country.
