Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHG800043 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Brand Name: | UVIR | Voltage: | 120V |
|---|---|---|---|
| Power: | 650W | Shape: | Ring |
| Pipe Diameter: | 8mm | Payment: | T/T,Western Union,MoneyGram,Paypal,L/C,D/A,D/P, |
| IR Diameter: | 32mm | Material: | Quartz |
| Place Of Origin: | Guangdong, China | Life Time: | 15000-20000h |
| Highlight: | 650W Ring Infrared Lamps,120V Ring Infrared Lamps |
||
1000W Bat Shaped Vacuum Golden Reflector Halogen Tube Lamp Ring Type Infrared Heating Elements
Product Description
For some applications, IR emitters in special shape might be a good option. Heat element developed quite a lot specials for countless clients, for example the omega-shaped, U shaped, bent or as a complete IR system.
| Filament | Tungstan/Quartz material |
| Tube Color | Gold |
| Pipe diameter | 8mm |
| Voltage | 120V |
| Power | 650W |
| IR Diameter | 32mm |
| Type | RING tube |
| Life Time | 15000-20000Hours |

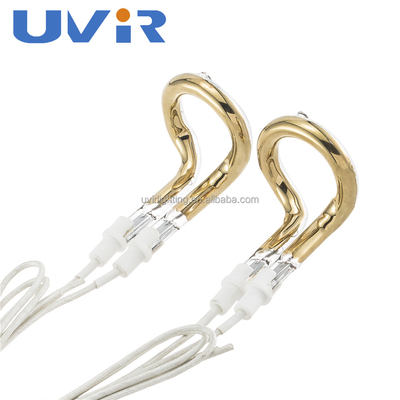

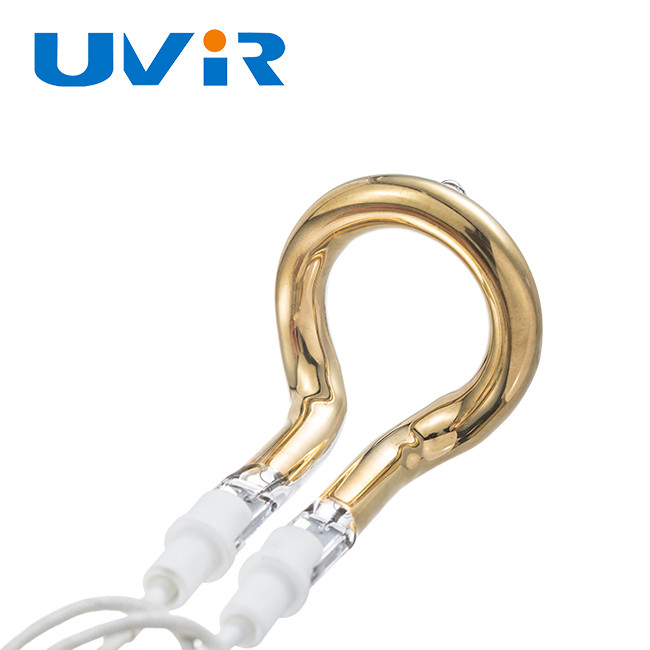

Ring Tube IR Lamps
Special Designs for Circular
2,3-D Surfaces
Main Design Characteristics
●Ring diameter from 39 up to 600 mm
●Voltage from 24 to 575 V
●Short, Medium and Long-Wave IR designs
●Availability in various tube colors
●The tube diameter can be from 8- 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
Standard stock items for immediate delivery
●Custom and OEM designs are available
Product details
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
Applications
--Laminating paper,plastics,metal,textiles
--Coating paints,adhesives
--Stretching foil
--High temperature disinfection
--Food catering backing,heating and heat preservation
--Industrial production oven.
--Car painting
--Wood drying and preheating before painting
--Beauty apparatus,infrared physical therapy care
--Drying for Shoes making machine
--Heating of PET preforms for bottles prior to strech-blow molding
--Heating PVC flooring prior to embossing
--Curing ink on plastic
--Curing water based reflective paint on aluminium light cluster
--Coating of lacquer to preserve metal tubes for pipelines
--Gelling and curing of powder coating on metal bottle openers
OEM Service
Thanks to its long track record and wide set of products always in stock, We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
1. Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will confirm with you whether it's free sample or not.
2. Can you do the design for us?
Yes. We have a professional team having rich experience in box design and manufacturing. Just tell us your idea and we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
3. What is your term of delivery?
We accept FOB, CIF, EXW etc. Usually our company send Express by DHL,UPS, FedEx,TNT,EMS. If weight is heavy, our company suggest it by Air or Sea.
4. Order quantity?
A: lamp tube and minimum order quantity is 10 above. The MOQ of the equipment is 1 set. Please refer to the instructions after contacting the customer service.
