Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHG800101 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Color:: | Clear, White, Ruby, Gold | Material:: | Tungsten (filament) |
|---|---|---|---|
| Quartz Tube: | 99.99% High Purity Quartz Glass | Power Source:: | Electric |
| Voltage:: | 12V-480V | Tube Cross Section 1:: | 8mm 10mm 12mm 12.8mm 14mm 15mm 19mm 22mm |
| Highlight: | Short Wave Ring Infrared Lamps,Ring Infrared Lamps tungsten filament,quartz glass tube heater Tungsten Filament |
||

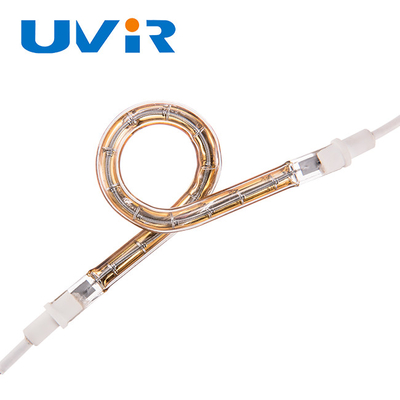

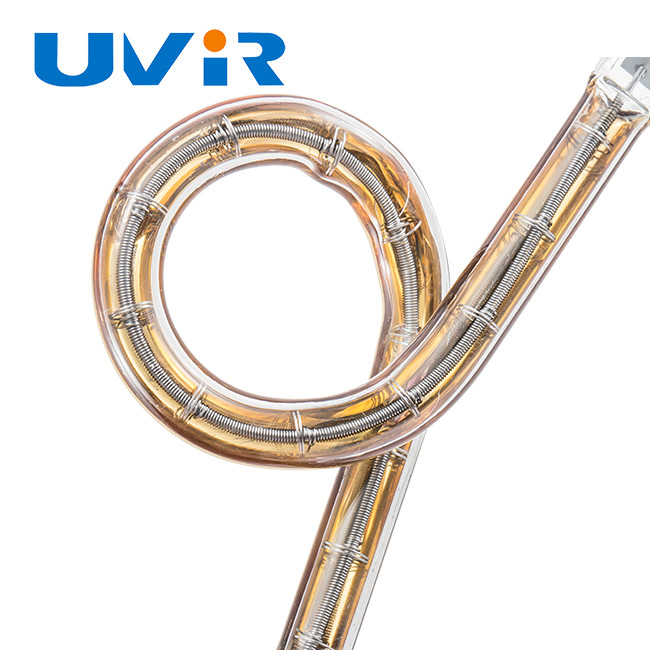

Customized Product Halogen Lamp Ring Type Infrared Tube Short-Wave Infrared Lamp
The Advantages Of OYATE Heat Lamp
Carbon fiber heat lamp (Middle wave infrared heat lamp)
*High-priced imported carbon fiber filament.
*The finished filament is smooth and does not fluff.
*Advanced carbon fiber weaving process,smooth surface.
*The optimum power and maximum longevity.
Guartz glass tube (Single tube and twin tube)
*High quality high-temperature quartz glass.
*Is totally transparent at IR radiation.
*If you need more heat under the same conditions, it is your best choice(twin tube).
Halogen Lamp Ring Type Infrared Tube Oven Heating Element
| Filament | Tungstan |
| Tube Color | Clear,White,Gold |
| Wavelength | 1.3μm |
| Voltage | 24-575V |
| Power | 100-7600W |
| Color Temp | 2450K |
| Common Diameter | 8-14mm |
| Life Time | 5000Hours |
Ring Tube IR Lamps
Special Designs for Circular
2,3-D Surfaces
Main Design Characteristics
●Ring diameter from 39 up to 600 mm
●Voltage from 24 to 575 V
●Short, Medium and Long-Wave IR designs
●Availability in various tube colors
●The tube diameter can be from 8- 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
Standard stock items for immediate delivery
●Custom and OEM designs are available
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
Infrared is divided into 3 segments by wavelengths measurements
* 1.0 ~1.3 μm Short-wave infrared
* 1.6 ~ 1.8 μm Miedium-short wave infrared
* 2.5 μm Medium-wave infrared
Reflector heat lamp
* To transmit and focus heat more efficiently on the material.
* A special reflector is directly applied on the quartz tube.
* According to the specific application and customers’ needs.
*We usually applies gold, white and ruby reflectors on heat lamp.
Ruby heat lamp & all gold heat lamp
* Reduce the brightness of visible light.
* Reduce wavelength, increase heat.
White heat lamp
* Imported ceramic white plating material.
* The white reflector coating is stable, not easy to fall off.

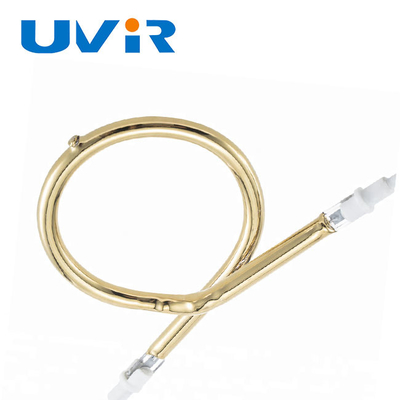

Gold heat lamp
* Imported gold plated material,gold water plated.
* Reflect heat use,Stronger reflection efficiency.
* Reflection effect is better than white plated.
Reflector lamps focus infrared heat forward in the direction where it is required, reducing the loss of heat to the rear and improving efficiency. A reflective coating is applied to the surface of the lamp, usually covering 180° of the quartz tube. Infrared heat is emitted forward through the quartz tube, or is reflected off the back of the tube to then pass outfrom the front. Infrared heat lamps, with a reflector coating or clear heat lamp be used in various machines.
* Short wave clear heat lamp
* Short wave white heat lamp
* Short wave gold heat lamp
FAQ
1. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
2. How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained
CE, ROHS, ISO9001.
3. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
