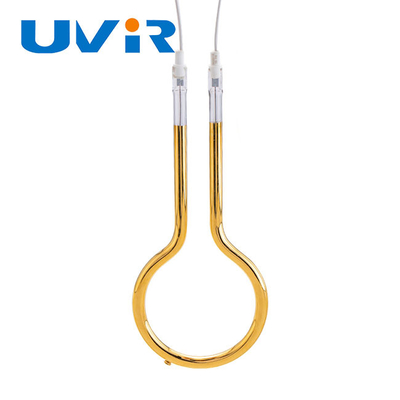

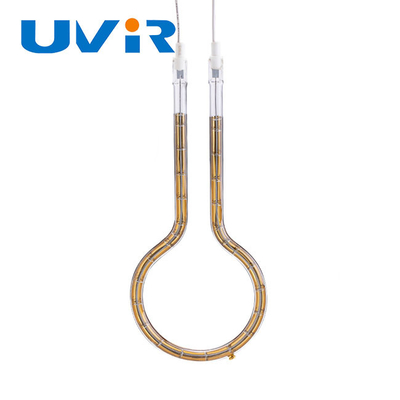

Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHG800025 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Brand Name:: | UVIR | Heating Element:: | Halogen |
|---|---|---|---|
| Certification:: | CE, ROHS | Use:: | Other, Bathroom, Bedroom, Garden, Microwave Oven Parts,Food Warmer |
| Electric Heater Type:: | Infrared Heater | IR Diameter :: | 102mm |
| Installation:: | Desktop, Freestanding | Power：: | 1850W |
| Voltage:: | 230V | ||
| Highlight: | Infrared Halogen Heating Lamp 5000h,Infrared Halogen Heating Lamp 1850W |
||
Benefits and features
(1) Long life:5000h on average
(2) High speed:within a second to switch on
(3) High power density:up to 110W/cm
(4) Flexible:special emitter designing service on demand is available
(5) High efficiency:more than 85% heat efficiency of full power
(6) High controllability:neither ballast nor special circuits are necessary for basic usage
(7) No air draughts:because of radiation
(8) Clean and odorless:no risk of contamination over environment or target object to be heated
(9) Extensive assortment:many types of voltage,wattage,length,base,cables,universal burning position is available
Heating Tube for Industrial application
| Support(zone) | Application | Suggest the ir lamp type |
| Plastics | • Bottle blowing • Thermoforming • Plastic forming • Welding • Serigraphy • Strapping |
Half white reflector infrared lamp |
| Paper | • Drying • Copying • Offset printing • Ink jet • Serigraphy |
Clear short wave heat lamp Half white heat lamp |
| Food | • Food catering • Food processing |
Ruby heat lamp round halogen oven lamp |
| Wood & Composites | • Drying • Curing • Powder coating | white reflecter infrared heat lamp Gold relfetcer heat lamp |
| Shoes & Fabrics | • Drying • Curing |
White relfecter/gold reflecter/clear/ruby |
| Metal | • Strapping • Coil coating • Powder coating |
Gold relfetcer heat lamp/twin tube ir lamp |
| Paint | • Automobile repair shops • Powder coating | Ruby jacked heat lamp/relfecter lamp |
| Animal care | • Breeding and rearing of animals • Veterinary clinics, zoos,pet shops and beauty parlors | Ruby ir lamp |
Main Design Characteristics
● Ring diameter from 39 up to 600 mm
● Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Availability in various tube colors
● The tube diameter can be from 8 - 14 mm.
Its selection depends on the heater's diameter
and the voltage/wattage relationship
● Standard stock items for immediate delivery
● Custom and OEM designs are available
Product details
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
Advantages
Carbon fiber heat lamp
* High-priced imported carbon fiber filament.
* The finished filament is smooth and does not fluff.
* The optimum power and maximum longevity.
Guartz glass tube
* High quality high-temperature quartz glass.
* Is totally transparent at IR radiation.
Reflector heat lamp
* To transmit and focus heat more efficiently on the material
* According to the specific application and customers’ needs.
* We usually applies gold, white and ruby reflectors on heat lamp.
Ruby & All gold heat lamp
* Reduce the brightness of visible light.
* Reduce wavelength, increase heat.
White heat lamp
* Imported ceramic white plating material.
* The white reflector coating is stable, not easy to fall off.
Gold heat lamp
* Imported gold plated material,gold water plated.
* Reflect heat use,Stronger reflection efficiency.
* Reflection effect is better than white plated.
Our Services
a. 24 hours online service
b. Enquiry will be replied in 2 hours
c. Long life more than 5000 hours
d. OEM & ODM projects are highly welcomed
e. Good after-sale service offered
FAQ
1. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
2. How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained
CE, ROHS, ISO9001.
3. Are you a factory or trading company?
We are a professional factory.
4. Where is your factory located?How can I visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome all the clients at home and broad to visit us!
5. Can I get some samples?
We are happy to offer samples for you to check and test.
6. Do you have any MOQ limit?
Low MOQ,2pcs for sample checking is available.
7. What about the lead time?
15-20days after receive your payment.
