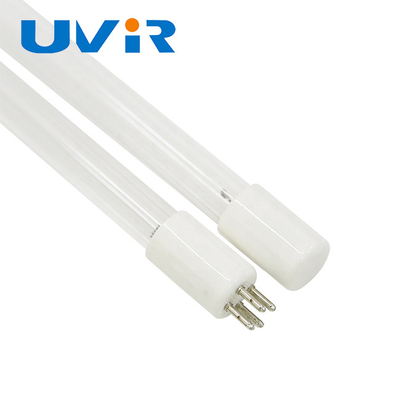

T5 150mm UVC Germicidal Lamp bulb 8W 4 PIN Double End Quartz Tube

T5 150mm 8W 4pin quartz glass far- UVC Germicidal Lamp uv water lamp sterilizer







Germicidal lamps

---

The UVC lamp is made by quartz tube which can penetrate the ultraviolet wavelength 254nm,ultraviolet wave 185nm produces ozone which be dissolved in water to destroy the walls of the cells of microorganism ,and thereby kill them immediately.



Ultraviolet technology has been one of the most effective methods of water treatment and air purification.UV germicidal lamp isthe ideal solution for water disinfection application in a safe way,without using any chemicals.



1. Four-Pin, single ended UV germicidal lamps.

2. Made of high quality quartz.

3. Average lamp life is 10,000 hours.

4. Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.







About UV Germicidal

---



Product Description

Product name	4 PIN Double End For UV germicidal lamp
Model NO.	GPH150T5L/4P
Overall Length	150mm
Watt	8W
Diameter	15mm
Ultraviolet intensity at 1 meter	20uw/cm2 1.7W
Current	425mA
Liftime	10000-13000hrs

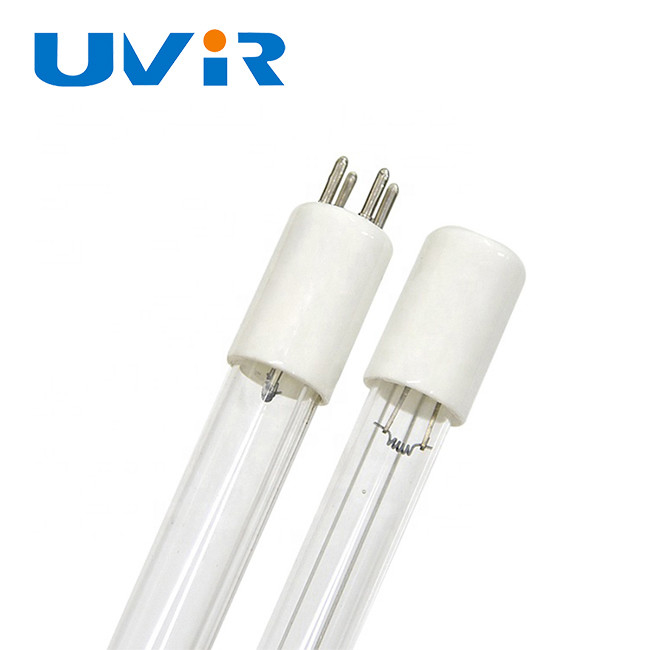

Each end of the tube is made of ceramic material,not easy to age, safe and insulated,easy to install and maintain.



Specification Details

---

Main body material: High quality Quartz glass

Ends material: Ceramic, aluminum, plastic

Color : Main body tubes are clear, the ends color can be made according to customers' request.

Tube Voltage: can make according to customized request.

Wattage: can make according to customized request.

Type: Single end or Double-end

Average Lifetime: 10000h - 13000h







The length of this series of lamps can be customized,single-head wiring,easy installation,especially suitable for water treatment.

GPH118T5L/4P	4pin	118	6	15	25	21	425	13	1.4
GPH150T5L/4P	4pin	150	8	15	27	22	425	20	1.7
GPH212T5L/4P	4pin	212	10	15	30	25	425	26	2.7
GPH287T5L/4P	4pin	287	14	15	41	34	425	40	4
GPH303T5L/4P	4pin	303	15	15	43	35	425	43	4.3
GPH357T5L/4P	4pin	357	17	15	51	42	425	57	5.7
GPH436T5L/4P	4pin	436	21	15	62	51	425	72	7.3
GPH550T5L/4P	4pin	550	28	15	69	60	425	85	8.5
GPH793T5L/4P	4pin	793	37	15	112	92	425	120	13
GPH843T5L/4P	4pin	843	40	15	120	98	425	135	15
GPH1148T5L/4P	4pin	1148	55	15	165	135	425	170	20
GPH1554T5L/4P	4pin	1554	75	15	220	179	425	220	30
GPH1630T5L/4P	4pin	1630	79	15	231	189	425	228	32





                       Low pressure quartz amalgam germicidal lamp

A high-tech mercury-blocking coating is attached to the inner wall of the lamp tube, so that its UV intensity still maintains a high level at the end of its life.

The amalgam UV lamp has a wider range of adaptability to the ambient temperature, which means that in a more severe working environment, the amalgam lamp can still perform more stable performance.

Model No	Base	OverallL ength	Watt	Diameter	Voltage 50/60	Current	Ultraviolet intensity at 1 meter	UVC254nm UV output	Lifetime
		(mm)	(W)	(mm)	(V)	(mA)	uw/cm²	W	(h)
GPHA357T5L	4pin	357	42	15	36	1.2	110	11	13000
GPHA843T5L	4pin	843	105	15	88	1.2	320	35	13000
GPHA1000T5L	4pin	1000	127	15	107	1.2	370	42	13000
GPHA1145T5L	4pin	1145	150	15	130	1.2	395	54	13000
GPHA1554T5L	4pin	1154	190	15	164	1.2	500	68	13000

Tube Diameter:T6=19mm

GPHA357T6L	4pin	357	57	19	32	1.8	130	13	13000
GPHA843T6L	4pin	843	130	19	71	1.8	400	43	13000
GPHA1000T6L	4pin	1000	150	19	84	1.8	460	52	13000
GPHA1554T6L	4pin	1554	240	19	134	1.8	600	84	13000
GPHAA357T6L	4pin	357	65	19	31	2.1	140	14	13000
GPHAA843T6L	4pin	843	172	19	85	2.1	490	54	13000
GPHAA1000T6L	4pin	1000	207	19	99	2.1	570	65	13000
GPHAA1554T6L	4pin	1554	320	19	154	2.1	750	105	13000

Tube Diameter:T8=25mm

GPHAA1510T8L

4pin

1510

250

25

83

3.1

650

90

13000

Tube Diameter:T10=32mm

GXA1500T10L	4pin	1500	270	32	75	3.8	650	93	13000
GPHA1515T10L	4pin	1515	270	32	75	3.8	650	93	13000
GPHAA1515T10L	4pin	1515	330	32	84	3.8	850	110	13000
GPHAA1310T10L	4pin	1310	400	32	82	5	1050	130	13000
GPHAA1554T10L	4pin	1554	500	32	90	5.5	1300	165	13000







Application

---

Disinfecting cabinets,microwave ovens,air conditioners,air purfiers and other home appliances;

Disinfect  the air and surface of goods in the hospitals,schools,restaurants,home and offices.







Caution

---

• UVC Ray is harmful to eyes and skin, don't look at the lamp when it's light up.
• People/pets/plants can't expose to the light. When the germicidal lamp is working, people, pets and plants must leave.
• After use, because the lamp killed a lot of bacteria in the room, please open the windows and doors, allow the room to ventilate 15 minutes then enter.
