Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHG800310 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15-20Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Color: | Gold-plated | Material: | Quartz Tube |
|---|---|---|---|
| Voltage: | 220V | Main Application: | Automobile, Printing, Hot-melt |
| Power: | 1000W | Custom Form:: | Come To A Sample Or A Drawing |
| Diameter: | 39-606mm | Specification:: | Can Be Made As Required |
| Highlight: | Gold Reflector Ring Infrared Lamps,220V Ring Infrared Lamps,1000W Quartz Tube Infrared Heaters |
||

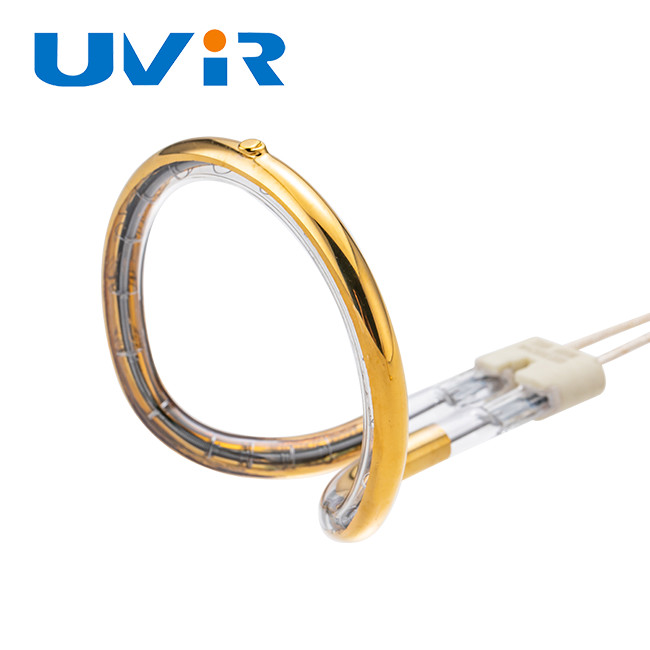

Gold-Reflector Ring quartz tube Infrared Heating Lamp Special Type heater Lamp
The Advantages Of UVIR Heat Lamp
heat lamp
1.High-priced imported carbon fiber filament.
2.The finished filament is smooth and does not fluff.
3.The optimum power and maximum longevity.
Guartz glass tube
1.High quality high-temperature quartz glass.
2.Long serving life: over 5000 hours.
3.nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
Product parameters
| Product name | Special-type Halogen Ring Infrared Ir Heating Lamp |
| Voltage | 220V |
| Length | 39-606MM Can be customized |
| Shape | Round or alien, can be customized |
| Pipe diameter | 10-18mm |
| Material | Quartz tube |
| Coating | Gold |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Stock and Standard (Non-Stock) Short-Wave Ring Lamps
| 115 | 250 | 8 | 39 | 0 | RHC800023 | RHG800063 | RHG800064 | RHG800065 |
| 120 | 650 | 10 | 32 | 90 | RHC800028 | RHG800078 | RHG800043 | RHG800093 |
| 230 | 1500 | 8 | 80 | 0 | RHC800024 | RHG800066 | RHG800067 | RHG800068 |
| 230 | 1850 | 8 | 102 | 90 | RHC800025 | RHG800025 | RHG800025 | RHG800025 |
| 230 | 2000 | 8 | 154 | 90 | RHC800026 | RHG800072 | RHG800073 | RHG800074 |
| 230 | 2200 | 8 | 180 | 90 | RHC800027 | RHG800075 | RHG800076 | RHG800077 |
| 240 | 1000 | 10 | 65 | 90 | RHC800029 | RHG800079 | RHG800048 | RHG800094 |
| 240 | 1600 | 10 | 97 | 90 | RHC800030 | RHG800080 | RHG800049 | RHG800095 |
| 240 | 1750 | 10 | 129 | 90 | RHC800031 | RHG800081 | RHG800050 | RHG800096 |
| 480 | 2100 | 10 | 161 | 90 | RHC800032 | RHG800082 | RHG800051 | RHG800097 |
| 480 | 2500 | 10 | 193 | 90 | RHC800033 | RHG800083 | RHG800052 | RHG800098 |
| 480 | 2850 | 10 | 223 | 90 | RHC800034 | RHG800084 | RHG800053 | RHG800099 |
| 480 | 3180 | 10 | 252 | 90 | RHC800035 | RHG800085 | RHG800054 | RHG800100 |
| 480 | 3520 | 10 | 282 | 90 | RHC800036 | RHG800086 | RHG800055 | RHG800101 |
| 480 | 3800 | 10 | 312 | 90 | RHC800037 | RHG800087 | RHG800056 | RHG800102 |
| 480 | 4200 | 10 | 341 | 90 | RHC800038 | RHG800088 | RHG800057 | RHG800103 |
| 480 | 4600 | 14 | 371 | 90 | RHC800039 | RHG800089 | RHG800058 | RHG800104 |
| 480 | 5000 | 14 | 404 | 90 | RHC800040 | RHG800090 | RHG800059 | RHG800105 |
| 480 | 5700 | 14 | 478 | 90 | RHC800041 | RHG800091 | RHG800060 | RHG800106 |
| 480 | 6000 | 14 | 511 | 90 | RHC800042 | RHG800092 | RHG800061 | RHG800107 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
Product Coding Rule Table:
IR LAMPS DETAL
The top quality of filament can let the lamp keep long time life
*High efficiency.
*Economical to run.
*Have a fast response switching on and off time.
*Effectively transmit and focus heat on materials.
High purity99.99% qurtz glass tube
*Is totally transparent at IR radiation.
*quartz is used in halogen bulbs because it can withstand high temperatures. Quartz also ensures against heat shock.
Infrared lamp application field
1.Infrared Heating For Plastics Process
IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles
2.Infrared Heating For Photovoltaic Industry
IR heating for string soldering
IR preheating for sputtering processes
3.Infrared Heating For Printing Industry
IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products ,such as using in banners machine
4.Infrared Heating For Food And Chemical Industry
IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice
5.Infrared Heating For Glass Industry
IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass
6.Infrared Heating For Textiles Industry
IR drying of coatings on textiles
IR heating for laminating of fabrics
7.Infrared Heating For Electronic Industry
Coatings on electronic components
The aging of the electronic components
OEM Service
We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
FAQ
Q1: Are you a factory or trading company?
A1 We are manufacturer.
Q2: Can I have a sample order for led light?
A2: Yes, we accept sample order to test and check quality.
Q3. What's the lead time for sample and batch order?
A3.5-7 days for samples, 2-3 weeks for batch order. We normally have inventory for some of the models.
