Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | RHG800130 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 5-8 Work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Specification:: | Shortwave Lamp | Material:: | Glass |
|---|---|---|---|
| Beam Angle(°):: | 360° | Application:: | Car, RV, Outdoor, Hotel, Garage, Commercial, Household, |
| Product Name:: | Circular Heating Halogen Lamp | Wattage:: | 2700W |
| Tube Diameter:: | 8mm | Lighting Solutions Service:: | Project Installation |
| Lifetime:: | 5000 Hours | Ceramic Cap:: | SK15 / R7S /RX / TC01 And Etc |
| Voltage: | 380V | ||
| High Light: | Circular Ir Heat Lamp 380V,Circular Ir Heat Lamp 2700W,Circular infrared heat lamp Gold Coating |
||

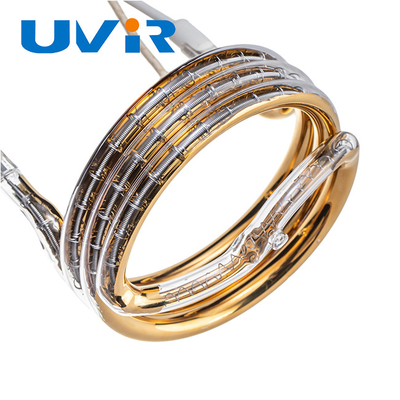

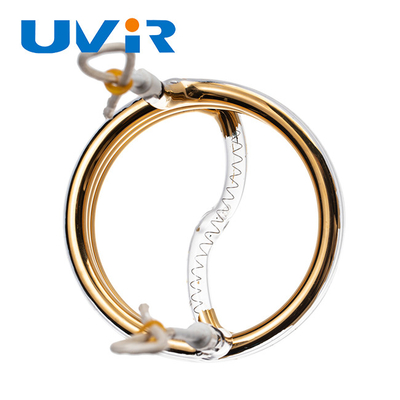

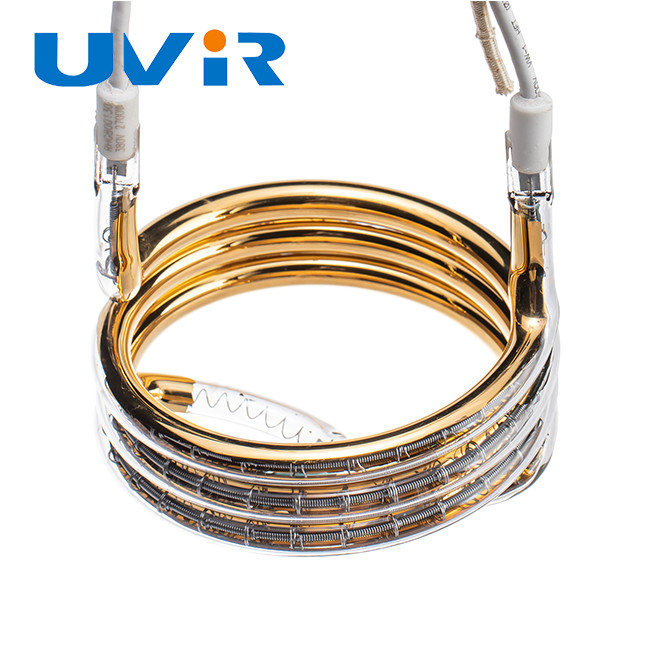

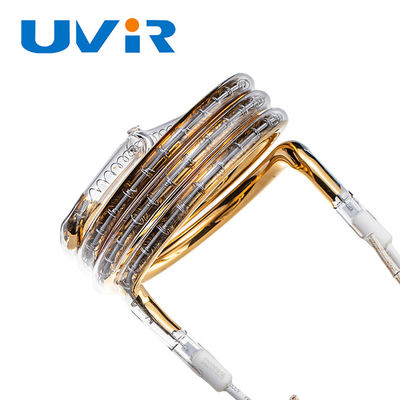

Professional Supply IR Lamp Circular 380V 2700W Round Infrared Heat Lamp
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our
professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
RING TUBE IR LAMPS
1. Special Designs for Circular 2.3-DSurfaces
2. Main Desian Characteristics
3. Ring diameter ftom 39 up to.600 mm.
4. Voltage from 24 to 575 V
5. Short, Meum and Long-Wave 1R desgns Madabilty in vanous tube colors
6. The tube diameter can befrom8-14mm.
7. Its selection depende on teleer's diatnete and the wotaoo wattage relationship
8. taeelant sbock terns forntmediahe delivery.
9. Custom and OEM desgns are avadable
Product parameters
| Product name | Special-type Halogen Ring Infrared Ir Heating Lamp |
| Voltage |
380V |
| Power | 2700W |
| Shape | Round or alien, can be customized |
| Pipe diameter | 10-18mm |
| Material | Quartz tube |
| Coating | Gold |
| OEM/ODM | many types of voltage,wattage,length,base,cables,universal burning position is available |
Selected Stock and Standard (Non-Stock) Contour
Short-Wave IR Lamps for 3-D Applications
| 115 | 410 | 10 | SHG300169 | SHW300001 | SHC300002 | 280770 | |
| 115 | 510 | 10 | SHG300049 | SHW300002 | SHC300003 | 284343 | |
| 115 | 520 | 10 | SHG300043 | SHW300003 | SHC300004 | 282094 | |
| 115 | 600 | 10 | SHG300050 | SHW300004 | SHC300005 | 282016 | |
| 115 | 710 | 10 | SHG300164 | SHW300005 | SHC300006 | 282014 | |
| 115 | 1100 | 10 | SHG300165 | SHW300006 | SHC300007 | 283932 | |
| 115 | 1100 | 11x23 | THG300039 | THW300001 | THC100001 | 282002 | |
| 115 | 1320 | 10 | SHG300037 | SHW300007 | SHC300008 | 280773 | |
| 120 | 1330 | 10 | SHG300166 | SHW300008 | SHC300009 | 284058 | |
| 120 | 1450 | 10 | SHG300170 | SHW300009 | SHC300010 | 305417 | |
| 120 | 1630 | 10 | SHG300035 | SHW300010 | SHC300011 | 305418 | |
| 230 | 2000 | 10 | SHG300167 | SHW300011 | SHC300012 | 314255 | |
| 230 | 2200 | 10 | SHG300045 | SHW300012 | SHC300013 | 282009 | |
| 230 | 2200 | 10 | SHG300046 | SHW300013 | SHC300014 | 282008 | |
| 230 | 2290 | 14 | SHG300171 | SHW300014 | SHC300015 | 297058 | |
| 230 | 2800 | 11x23 | THG300038 | THW300002 | THC300002 | 281997 | |
| 240 | 800 | 10 | SHG300052 | SHW300015 | SHC300016 | 283640 | |
| 240 | 810 | 10 | SHG300168 | SHW300016 | SHC300017 | 280728 | |
| 240 | 800 | 10 | SHG300042 | SHW300017 | SHC300018 | 292093 | |
| 240 | 880 | 10 | SHG300056 | SHW300018 | SHC300019 | 280727 |
If the parameter is not suitable for you,Please contact me.We have a professional elite team,will provide the professional knowledge and drawings for you!
SAFETY PRECAUTIONS
A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.
Scope of application
Heater: Space heater, Sauna, Electric hot table, Incubating, Brooders, Farm green house.
- Automotive: Primer/Color/Powder coat, Seat de-wrinkling, Head liner forming
- Plastics: Welding, Forming, Softening, Curing, Drying
- Printing: Ink drying, Silk Screening, Bindings, Glue drying
- Food: Baking, Browning, Dehydrating, Pasteurizing
- Textiles: Web Drying, Finishing, Pre-shrinking
- Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit.
FAQ
1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
3. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
