240V Mediumwave Longwave Ring Infrared Lamps with Gold Reflector for Automotive Applications

240V Mediumwave Longwave Ring Infrared Lamps with Gold Reflector for Automotive Applications

Brand Name:	UVIR
Model Number:	RHG800049
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Power:

1600W

Certification:

Voltage:

240V

Reflector:

Gold / Ceramic White

Type:

Infrared Heater

Tube Diameter:

10mm

IR Diameter:

97mm

Material:

Quartz

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1600W Ring Infrared Lamps

ROHS Ring Infrared Lamps

Gold Reflector Infrared Heating Tubes

Product Description

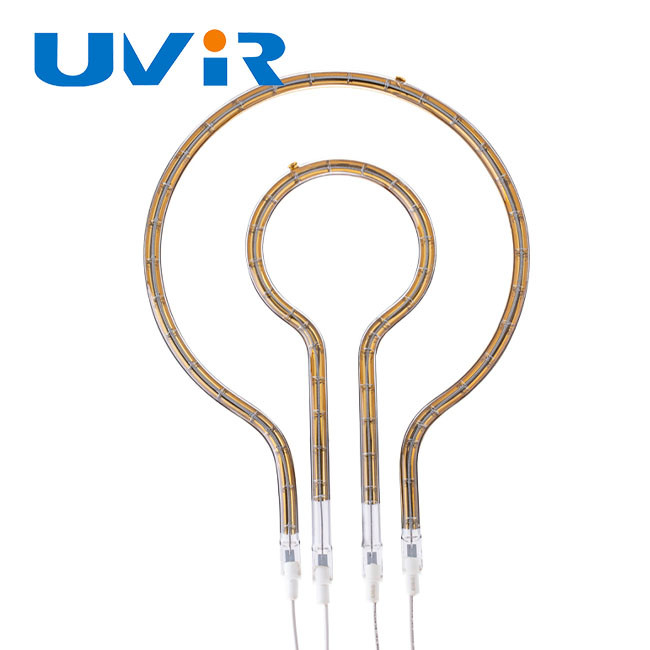

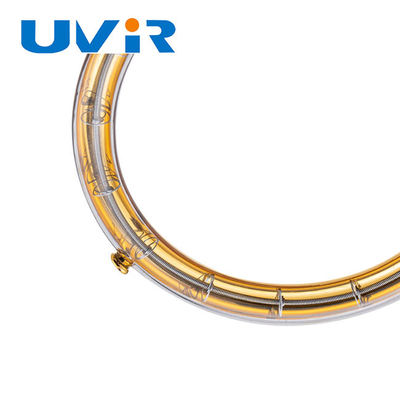

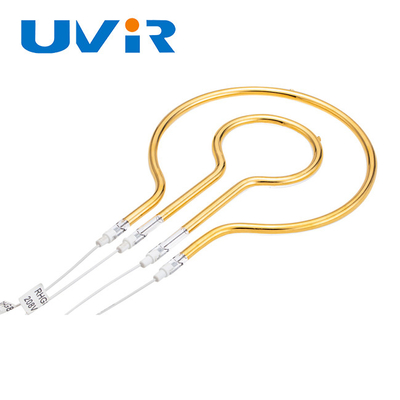

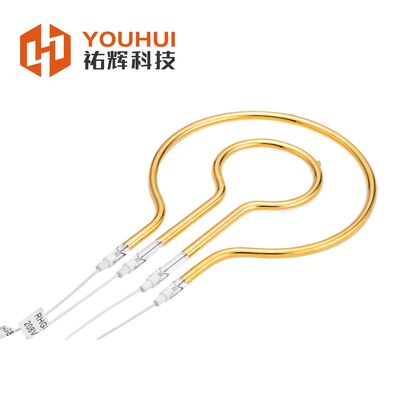

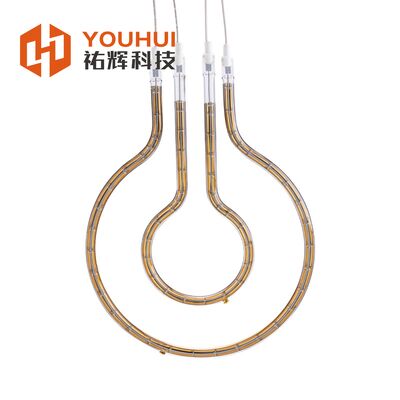

1600W Ring Infrared Lamps with Gold Reflector ROHS Infrared Heating Tubes

Gold Reflector Ring Shape IR Emitter Lamp Infrared Heater for Automotive

UVIR Infrared Lamp Advantages

Our professional infrared technology delivers precise heating exactly where needed, with the optimum wavelength for your product. These infrared heaters provide energy savings of up to 50% compared to other technologies.

Product Parameters

Product Name	Special-type Halogen Ring Infrared IR Heating Lamp
Voltage	240V
Wavelength	Shortwave, Mediumwave, Longwave
Shape	Round or custom shapes available
Pipe Diameter	10mm
Material	Quartz tube
Coating	Gold
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning positions available

Product Features

High-quality filament ensures long lifespan
High efficiency operation
Economical to run
Fast response switching on and off
Effectively transmits and focuses heat on materials
99.99% pure quartz glass tube
Completely transparent to IR radiation
Quartz withstands high temperatures and heat shock

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065
120	650	10	32	90	RHC800028	RHG800078	RHG800043	RHG800093
230	1500	8	80	0	RHC800024	RHG800066	RHG800067	RHG800068
230	1850	8	102	90	RHC800025	RHG800025	RHG800025	RHG800025
230	2000	8	154	90	RHC800026	RHG800072	RHG800073	RHG800074
230	2200	8	180	90	RHC800027	RHG800075	RHG800076	RHG800077

If these parameters don't meet your requirements, please contact us. Our professional team can provide technical knowledge and custom drawings.

Product Coding Rule Table

Applications

Safety Precautions

Operate only under these conditions:
- Relative humidity ≤ 95%
- No flammable, explosive, corrosive gases or conductive dust
- No violent impact or vibration
- Working voltage ≤ 1.1 × rated value with proper grounding
- Insulation resistance ≥ 1MΩ, dielectric strength: 2KV/1min
Properly position and fix heating pipes using appropriate clamps
For temperatures >200°C, use high-temperature wire and screw connections rated for 400°C+
Handle quartz glass carefully to avoid mechanical damage

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples require 5-7 days, mass production about 30 days.

Q3. Do you have any MOQ limit?

A: Minimum order quantity is typically 2 pieces per model.

Q4. How do you ship the goods?

A: Samples ship via DHL, UPS, FedEx or TNT. Large quantities via air or sea freight.

Q5. How to proceed with an order?

A: Process:

Share your requirements/application
We provide quotation
Confirm samples and place deposit
We arrange production

Q6: How to deal with faulty products?

A: Our strict quality control minimizes defects. During warranty, replacements ship with next order.
