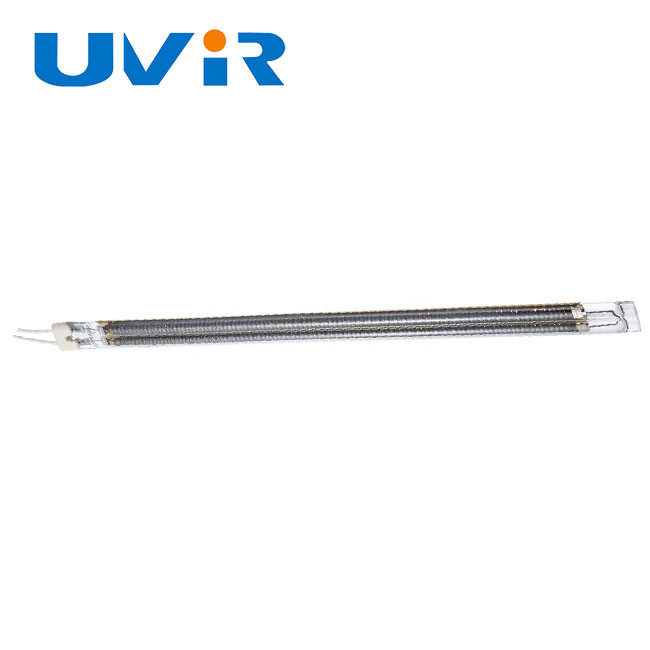

Factory Supply Carbon Fiber Infrared Heating Lamp Longlife IR Lamp Customized IR Lamp
No.1 Customized ultraviolet lamps according to your specific needs
Almost everything about the lamp can be customized, including length and diameter, power, fitting sockets, and ceramic bases. Our proprietary ceramic bases are resistant to UVC radiation, ozone, heat and moisture and have a high-quality appearance. Other base materials are available upon request.
No.2 Advantages
1. Versatility of heat source:
Wide range of lamps lengths and power available
Voltage:55-480V
Watts: 200-60000w
Length: 60-3000mm
2. Instant heat: More than 90% emission within 1 second
3. Clean: No byproducts, no pollution
4. Safe: Quartz envelope, heat shock resistant
5. Economical: More than 85% of consumed energy transmitted into infrared heat
6. Fully dimmable: Fully controllable accurately(0% to 100%)
7.Possibility to put people sensor: On/Off switches do not affect life time of the lamps
8.Long life: More than 5000 hours
9.Heat can be focused: Same optical properties as light, can be directed by reflectors
10.Compact heater: Compact heat sources, narrow diameter of lamps
No.3 Filament Structure of Carbon Infrared Emitters
No.4 Infrared lamps for Industrial applications
| Support(zone) | Application | Suggest the ir lamp type |
| Plastics | • Bottle blowing • Thermoforming
• Plastic forming • Welding
• Serigraphy • Strapping
|
Half white reflecter infrared lamp |
| Paper | • Drying • Copying • Offset printing • Ink jet • Serigraphy |
Clear short wave heat lamp Half white heat lamp |
| Food | • Food catering • Food processing | Ruby heat lamp. round halogen oven lamp |
| Wood & Composites | • Drying • Curing • Powder coating | white reflecter infrared heat lamp Gold relfetcer heat lamp |
| Shoes & Fabrics | • Drying • Curing | White relfecter/gold reflecter/clear/ruby |
| Metal | • Strapping • Coil coating • Powder coating |
Gold relfetcer heat lamp/twin tube ir lamp |
| Paint | • Automobile repair shops • Powder coating | Ruby jacked heat lamp/relfecter lamp |
No.5 FAQ
1. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
But if it is a new project or it is the first time for you to use infrared emitter, just tell us about your application in details like object material, required working temperature, required time, heating size..
2. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
3. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
