Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE & ROHS |
| Model Number: | TMG100016 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box |
| Delivery Time: | 15 Work day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Name:: | Carbon Fiber Infrared Heating Lamp | Material :: | Quartz Glass & Carbon Fiber |
|---|---|---|---|
| Reflector :: | Ceramic, Gold And No Reflector | Coating:: | Gold Coating |
| Warranty Period :: | 20,000 Hours | Application :: | Used In All Kinds Of Industry Heating Process |
| Shape :: | Straight | ||
| High Light: | Quartz Twin Tube Carbon Infrared Emitters,Carbon Infrared Emitters 15x33mm,quartz tube infrared heaters Gold Coating |
||

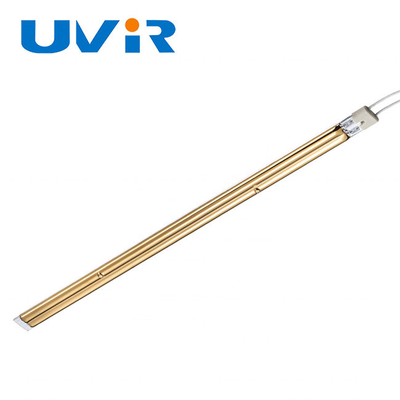

Quartz Twin Tube Carbon Infrared Emitter Used In Industry Heating Process
No.1 Product Descriptions
This is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of carbon fiber material which runs in U shape in the tube which is filled with inert gas.
Power Density up to 150w/cm is achieved. Heating up and cooling down time is approximately 3-5 seconds.

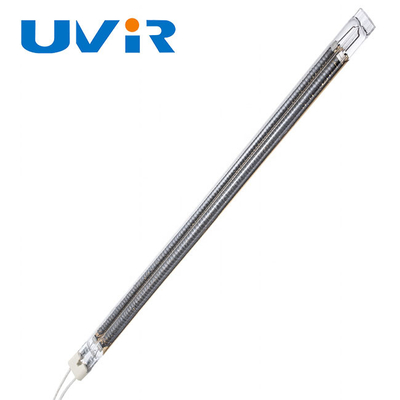

These heaters are available with gold or white reflector and without reflector.
Reflector is in the form of gold coating on outer rear side of the tube, due to reflector heat loss from backside is prevented and thus power saving is achieved, and also results in making surrounding work area cooler and increases the efficiency and directionality of the heater.
| Voltage(V): | 220 |
| Wattage(W): | 1700 |
| Twin Tube: | 15x33 |
| Total Length: | 1280 |
| Heated Length: | 1200 |

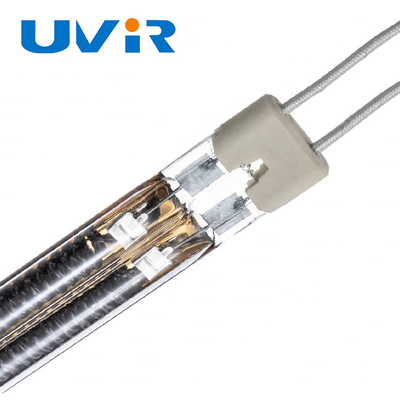

No.2 Filament Structure of Carbon Infrared Emitters
No.3 Benefits of Coating
1.All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output.
2. The emitters with coating are highly economical, converting practically all the consumed
electrical power into heat.
3.For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C .
In addition to 180°(half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
No.4 Customized Application
No.5 Why choose us
| Great Quality |
The materials used for our lamps are at good quality approval UL testing |
| Rich Experience | As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years |
| Factory production directly | We are factory, so we can control the delivery date, material, quality directly |
| Best After-service | For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming |
| Safe Pakage | Safe package to protect lamps from being broken during shipping |
| Fittings perfect | we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp) |
| Various Payment | wire transfer(T/T), paypal, western union |
| Diversified shipping ways | Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea |
No.6 FAQ
1. What is the payment term?
prepayment 100% advance via wire transfer, Paypal, Western Union
2. Could you provide sample for performance testing and appearance checking?
Yes, we can provide the sample based on your required specs
3. What information should i provide when enquire?
Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.
But if it is a new project or it is the first time for you to use infrared emitter, just tell us about your application in details like object material, required working temperature, required time, heating size.
