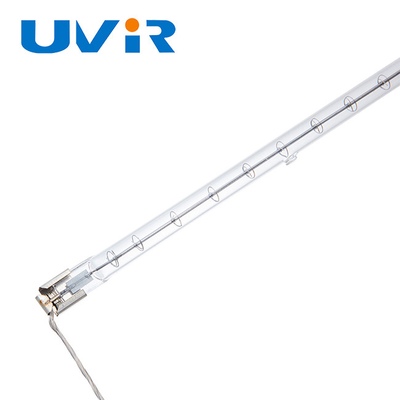

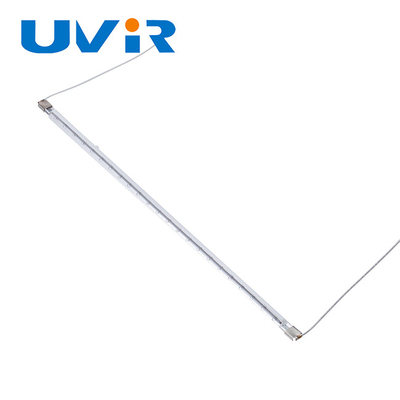

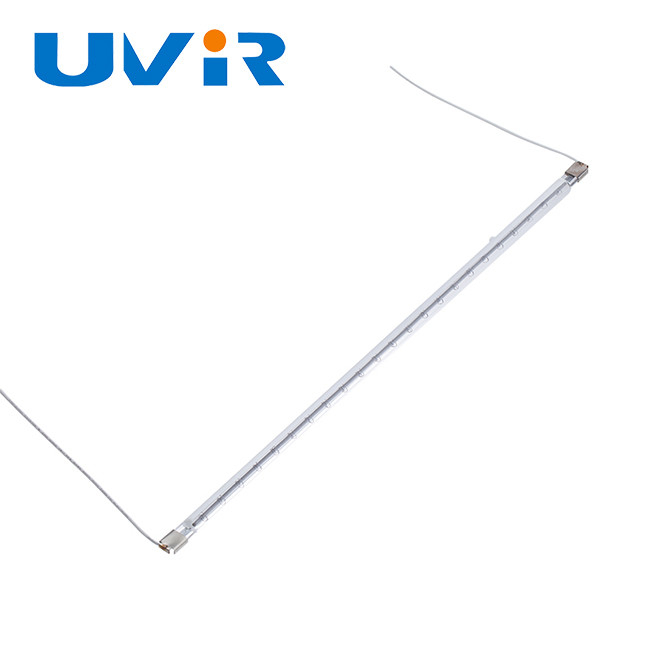

SK17 Quartz Infrared Heating Lamp 1000W 235V

SK17 Quartz Infrared Heating Lamp 1000W 235V

Brand Name:	UVIR
Model Number:	SHC100150
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Heating

Keywords:

Infrared Lamp Heater

Wavelength:

1-2μm

Power:

1000W

Voltage:

235V

Base:

SK17

Reponse Time:

Lamp Tube Material:

Quartz Tube

Heating Length:

280mm

Total Length:

355

Tube Diameter:

10mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Quartz Infrared Lamps 1000W

Quartz Infrared Lamps 230V

CE Quartz Infrared Lamps

Product Description

CE SK17 Quartz Infrared Lamps 1000W 230V High Thermal Efficiency

Attribute	Value
Application	Heating
Wavelength	1-2μm
Power	1000W
Voltage	235V
Base	SK17
Response time	1s
Lamp tube material	Quartz tube
Heating length	280mm
Total length	355mm
Tube diameter	10mm

SK17 Short Wave Quartz Tube Halogen Infrared Paint Curing Lamp

Factory Workshop

Our company produces and wholesales ultraviolet lamps, infrared lamps, ultraviolet germicidal lamps, xenon lamps and other special light sources with peripheral accessories including lamp stands and transformers. Custom solutions available.

Product Specifications

Watts	1000W (Customizable)
Voltage	235V (Customizable)
Length	Customizable
Pipe diameter	10mm
Base	SK17
Material	Quartz glass, Ceramic head, Braided wire, Tungsten wire
Application	Car painting, Oven, Baking glass, Plastic spray baking room, Paper drying, Circuit board, Warming
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning positions available

High Temperature Heating with Long Life

Tungsten wire heats the gas in the quartz tube under AC voltage, producing infrared radiation. Features include:

High thermal efficiency
High power density
Rapid heating
Energy saving
Long operational life

Standard Single Tube Construction Types

Additional standard end terminations available upon request.

If these parameters don't meet your requirements, contact us for custom solutions. Our professional team can provide technical specifications and drawings.

Application Areas

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products (e.g., banners machine)

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

Product Certification
