235V 1000W Short Wave IR Quartz Heater Lamp for Industrial Heating

235V 1000W Short Wave IR Quartz Heater Lamp for Industrial Heating

Brand Name:	UVIR
Model Number:	SHC100150
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty(Year):

1-Year

Wave Length:

Short Wave

Filament Temperature:

1100-2600°C

Heating Length:

280mm

Reflector:

Clear

Application:

Heating/Drying/Printing

Tube Material:

Tungsten、quartz Glass

Reponse Time:

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Power:

1000W

Voltage:

235V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

UVIR Quartz Infrared Lamps

230V Quartz Infrared Lamps

1000W Quartz Glass Heater

Product Description

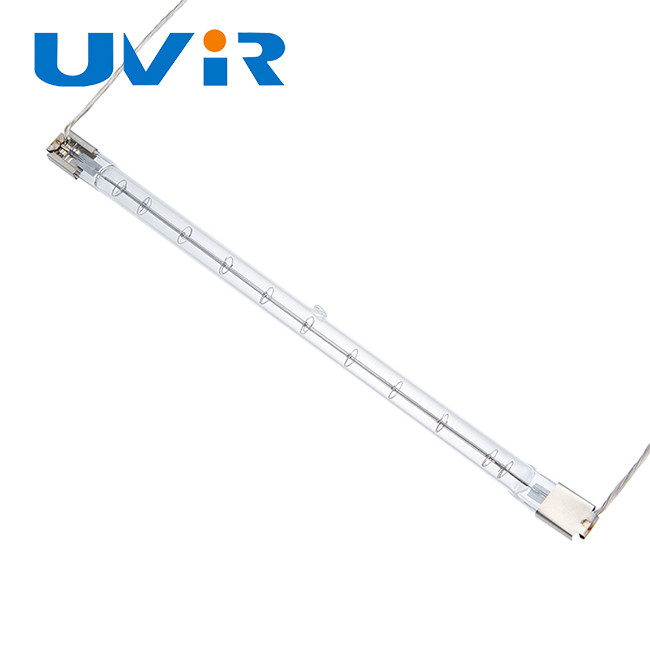

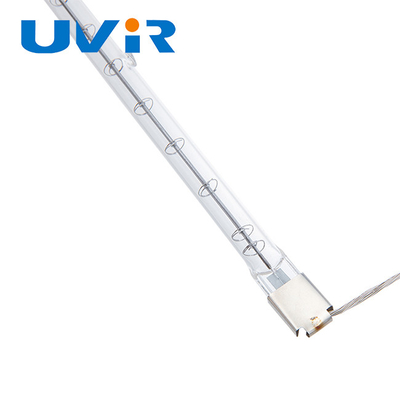

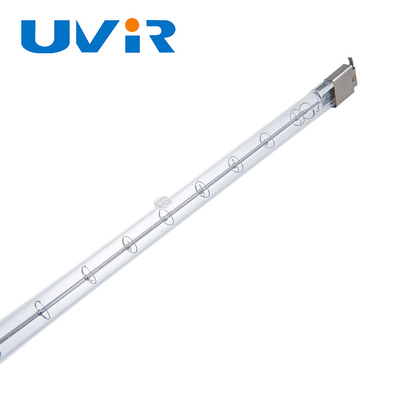

UVIR Quartz Infrared Lamps, 235V 1000W Quartz Glass Heater for Blowing Machine

Product Specifications

Attribute	Value
Warranty	1-Year
Wave Length	Short wave
Filament temperature	1100-2600°C
Heating length	280mm
Reflector	Clear
Application	Heating/Drying/Printing
Tube material	Tungsten, quartz glass
Response time	1s
Power	1000W
Voltage	235V

SK17 Short Wave IR Radiant Emitter Halogen Quartz Glass Heater

Our premium infrared heater provides energy savings of up to 50% compared to conventional heating technologies.

Key Advantages

Exceptional energy efficiency matched to material heating requirements
Consistent, reliable performance and stable quality
24-hour customer support
Certified to CE, ISO9001, RoHS, and SGS standards
Low minimum order quantity - samples available

Technical Details

Filament	Tungsten
Lamp reflector	Metal
Voltage	235V
Wattage	1000W
Base	SK17
Life Time	>5000hrs

Design Characteristics

Power range: 200 to 5,000 W
Voltage options: 24 to 575 V
Available in short, medium, and long-wave IR designs
Filament temperatures: 1,100°C to 2,600°C
Heat lengths: 50 to 1,500 mm
Reflective layers: gold or white
Fast response time (1 second for short-wave)
Tube diameters: 8 to 25 mm
Standard items available for immediate delivery
Custom and OEM designs available

Standard single tube construction types. Additional standard end terminations available upon request.

IR lamp for PET blowing machines. Contact us for custom specifications - our professional team can provide technical support and drawings.

Industrial Applications

Frequently Asked Questions

Are you a factory or trading company?

We are a professional factory.

Where is your factory located? How can I visit?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We welcome all clients to visit us.

Can I get samples?

We are happy to provide samples for testing.

What is your minimum order quantity?

Low MOQ - samples available from 1 piece.

What is your production lead time?

Samples: 3-7 working days. Mass production: 10-20 working days for orders over 1000 pieces.

What certifications do you have? What is the lamp lifespan?

Certified to CE, ISO9001, RoHS, and SGS standards. Each lamp has a lifespan of 5000-20000 hours.

Do you offer product guarantees?

Yes, we provide product guarantees. The specific guarantee period will be confirmed in our formal quotation along with the product datasheet.
