Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE |
| Model Number: | - |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box. |
| Delivery Time: | 15-20 work days |
| Power(W): | 2000W | Working Time: | 5000h |
|---|---|---|---|
| Heating Length: | 50-1500mm | Reflector: | Gold |
| Base: | SK17 | Filament Type: | Tungsten |
| Reponse Time: | 1s | Tube Diameter: | 10mm |
| High Light: | 2000W Quartz Halogen Infrared Heater Lamps,White quartz halogen infrared heater lamps,SK15 quartz infrared halogen lamp |
||

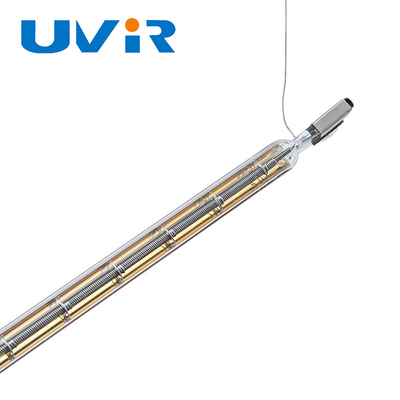

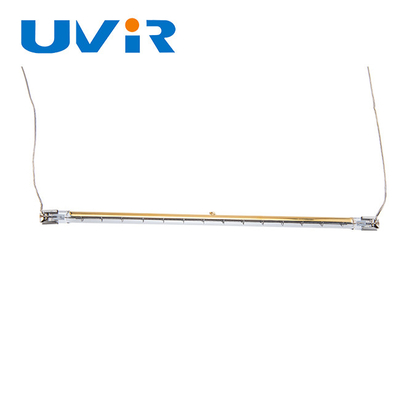

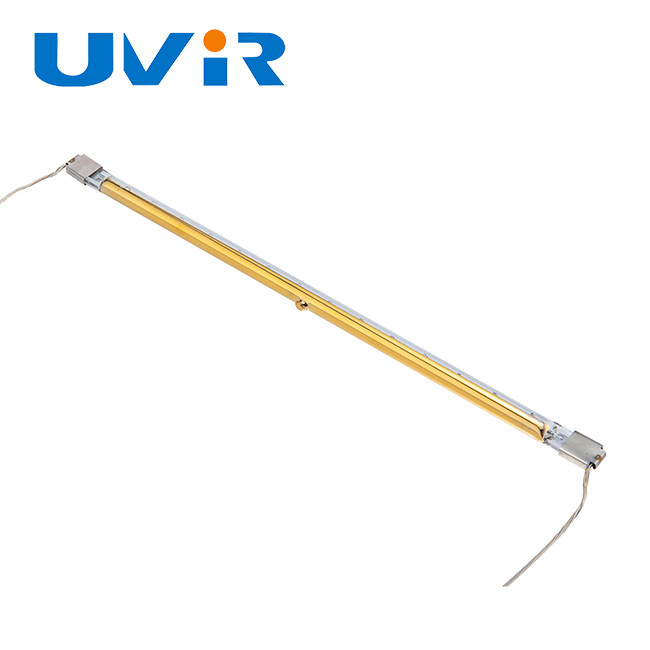

SK17 2000W Single tube gold-coating quartz Halogen infrared heat lamps for paint drying
UVIR IR Lamp Advantage
Products Description
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
| Product |
IR lamp for PET BLOWING MACHINES |
| Coating |
Gold |
| Voltage |
55-575V |
| Wattage |
2000W |
| Base |
SK17 |
|
Material |
Quartz tube |
| Reflector |
Metal |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |
High-quality coating(can choose)
The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss.
Main Design Characteristics
Power from 200 to 5,000 W
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Filament temperatures from 1,1 00°C to 2,600°C
Heat lengths from 50 to 1 ,500 mm
Reflective layers: gold, white
Fast response time, 1 second for S-W
Tube diameters from 8 to 25 mm
Standard stock items for immediate delivery
Custom and OEM designs are available
SINGLE TUBE IR HEATING LAMP
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
| Toshiba |
Wattage (W) |
Voltage(V) |
Base |
Reflector |
|
JHC 235V 1000W 272 BfH |
1000W | 230-240 |
SK15/SK16/SK18 |
White |
|
JHS 235V 1000W 272 JU |
1000W | 230-240 | X | Clear |
|
JHC 235V 1000W 272 JH |
1000W | 230-240 | X | White |
|
JHC 144V 1200W 155 BfH |
1200W | 144V | SK15/SK16/SK18 | White |
|
JHC 235V 1200W 155 BfH1 |
1200W | 230-240V | SK15/SK16/SK18 | White |
| JHC 240V 1200W 155 BfH1 | 1200W | 230-240V | SK15/SK16/SK18 | White |
| JHC 235V 1500W 280 BfH1 | 1500W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 144V 1600W 155 JcH |
1600W | 144V | SK17 | White |
|
JHC 144V 1600W 155 BfH |
1600W | 144V | SK15/SK16/SK18 | White |
| JHC 235V 1600W 155 BfH1 | 1600W | 230-240V | SK15/SK16/SK18 | White |
| JHC 240V 1600W 406 BfH | 1600W | 230-240V | SK15/SK16/SK18 | White |
| JHC 235V 2000W 280 BfH | 2000W | 230-240V | SK15/SK16/SK18 | White |
| JHC 235V 2000W 280 BfH2 | 2000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 235V 2000W 410 JH |
2000W | 230-240V | X | White |
|
JHC 235V 2000W 500 BfH |
2000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 235V 2000W 700 BfH |
2000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 235V 2500W 280 BfH3 |
2500W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 400V 2500W 280 BH |
2500W | 400V | SK15/SK16/SK18 | White |
|
JHC 400V 2500W 315 BH |
2500W | 400V | SK15/SK16/SK18 | White |
|
JHC 235V 3000W 280 BfU |
3000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 400V 3000W 280 BH |
3000W | 400V | SK15/SK16/SK18 | White |
|
JHC 400V 3000W 315 BH |
3000W | 400V | SK15/SK16/SK18 | White |
|
JHC 235V 3000W 700 BfH2 |
3000W | 400V | SK15/SK16/SK18 | White |
|
JHC 400V 3000W 700 BfH1 |
3000W | 400V | SK15/SK16/SK18 | White |
Product Coding Rule Table:
APPLICATION SCENARIO
Our lamps also can used in more industries,such as:The floor,glass,metal,paper,packaging,
powder,coating,rubber,textile,wood,semiconductors and etc...
If you have any requirement,please contact us.
FAQ
1.Are you a factory or trading company?
We are a professional factory.
2.Where is your factory located?How can I visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome
all the clients at home and broad to visit us!
3. Can I get some samples?
We are happy to offer samples for you to check and test.
4.Do you have any MOQ limit?
Low MOQ,1pcs for sample checking is available.
5.What about the lead time?
15days after receive your payment.
6.How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has
gained CE,ISO9001,RoHS,SGS authentication.
7.Can I customize the printing of the packing and print our logo on the ir lamps?
Yes.we provide OEM and ODM service. our advantage is customized according your request.
