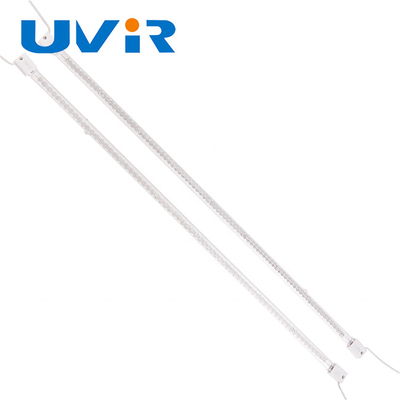

SK15 IR Halogen Lamps Quartz Glass Tube , 800w Tungsten Halogen Heat Lamp

SK15 Tungsten Halogen Infrared Heating Element Quartz glass tube Industrial Drying







Benefits of Infrared Heat

---

Carbon fiber heat lamp

• High-priced imported carbon fiber filament.
• The finished filament is smooth and does not fluff.
• The optimum power and maximum longevity.



Guartz glass tube

• High quality high-temperature quartz glass.
• Long serving life: over 5000 hours.
• Nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.





Products Description:

Product name	Short wave infrared heating lamp
Heating length	50-1500mm,Customizable
Voltage	24-575V
Wattage	200-4000W
Base	SK15
Material	Quartz tube
Reflector	Clear
OEM/ODM	many types of voltage,wattage,length,base,cables,universal burning position is available

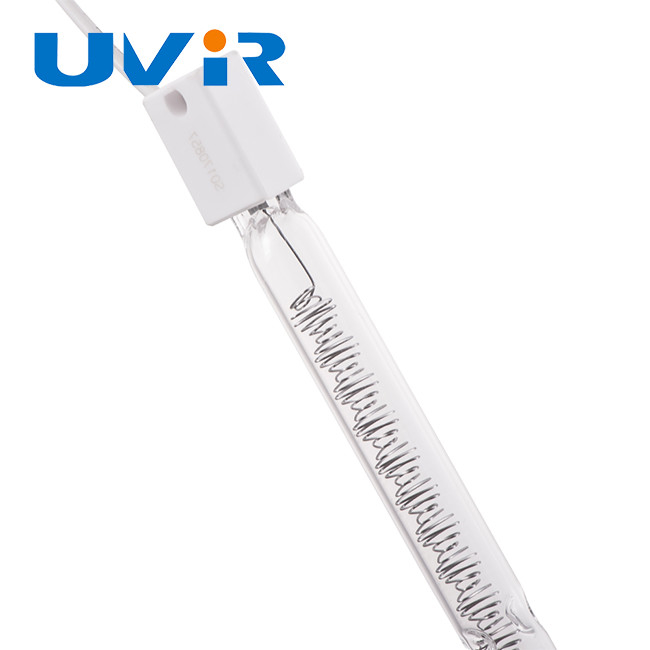

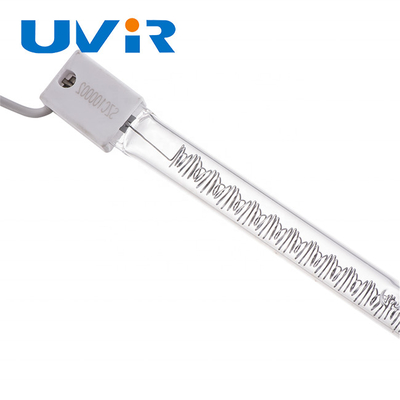

SK15 Tungsten Halogen heating lamps
Adopt high-quality transparent quartz tube material, effectively increase the radiation density of infrared rays.





END TERMINATIONS FOR SINGLE TUBE IR LAMPS







Infrared wavelengths are in the range of the

750nm to 1mm electromagnetic spectrum.









Product Coding Rule Table:







APPLICATION SCENARIO

---

1.Infrared Heating For Plastics Process

• IR drying of coatings on plastics
• IR stretching or shrinking plastics
• IR Heating For Plastic Packaging
• IR heating for blow moulding of PET bottles

2.Infrared Heating For Photovoltaic Industry

• IR heating for string soldering
• IR preheating for sputtering processes

3.Infrared Heating For Printing Industry

• IR curing ink on cloth
• IR drying for inkjet-based CTP plates
• IR drying of printing products ,such as using in banners machine

4.Infrared Heating For Food And Chemical Industry

• IR heating for disinfection of tableware
• IR heating of chicken and vegetables
• IR heating of natural herbal medicine
• IR heating for removing snow and ice

5.Infrared Heating For Glass Industry

• IR preheating of car glass
• IR drying of coatings on glass
• IR heating for manufacturing and cutting laminated glass

6.Infrared Heating For Textiles Industry

• IR drying of coatings on textiles
• IR heating for laminating of fabrics

7.Infrared Heating For Electronic Industry

• Coatings on electronic components
• The aging of the electronic components









OEM Service

---

We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.



We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
