Single Tube Quartz Infrared Lamps with 1s Response Time 500mm Total Length and 430mm Heating Length for Industrial Applications

Single Tube Quartz Infrared Lamps with 1s Response Time 500mm Total Length and 430mm Heating Length for Industrial Applications

Brand Name:	UVIR
Model Number:	SHW100325
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Wave Length:

Short Wave

Color:

Ceramic White

Reponse Time:

Place Of Origin:

Guangdong, China

Filament Temperature:

1100-2600°C

Material:

Tungsten(filament),quarz(tube)

Power:

2000W

Lifetime:

5000h

Voltage:

220V

Total Length:

500mm

Heating Length:

430mm

Tube Diameter:

10mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Single Tube Quartz Infrared Lamps

Quartz Infrared Lamps RS Base

Product Description

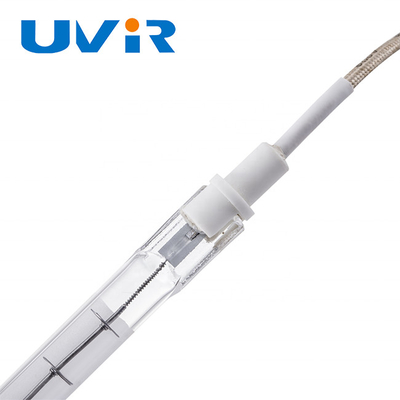

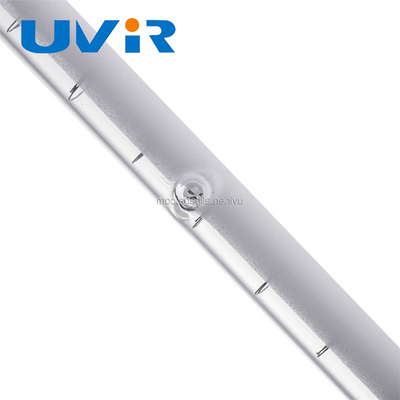

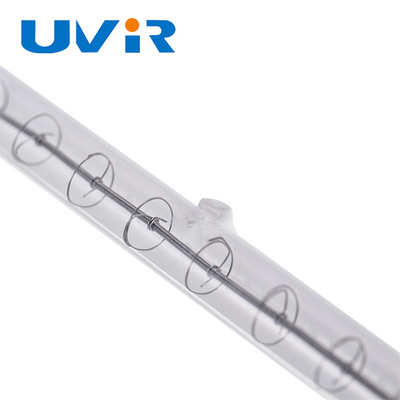

Single Tube Quartz Infrared Lamps RS Base with white coating

Single tube RS Base Quartz halogen heating lamp infrared heater lamps with white coating

Infrared lamps for Industrial application

Support(zone)	Application	Suggest the IR lamp type
Plastics	• Bottle blowing • Thermoforming • Plastic forming • Welding • Serigraphy • Strapping	Half white reflector infrared lamp
Paper	• Drying • Copying • Offset printing • Ink jet • Serigraphy	Clear short wave heat lamp Half white heat lamp
Food	• Food catering • Food processing	Ruby heat lamp round halogen oven lamp
Wood & Composites	• Drying • Curing • Powder coating	White reflector infrared heat lamp Gold reflector heat lamp
Shoes & Fabrics	• Drying • Curing	White reflector/gold reflector/clear/ruby
Metal	• Strapping • Coil coating • Powder coating	Gold reflector heat lamp/twin tube IR lamp
Paint	• Automobile repair shops • Powder coating	Ruby jacked heat lamp/reflector lamp
Animal care	• Breeding and rearing of animals • Veterinary clinics, zoos, pet shops and beauty parlors	Ruby IR lamp

IR Lamp Description

Product name	Single tube infrared heating lamp
Material	Quartz glass
Voltage	220V, Customized
Wattage	2000W, Customized
Base	RS
Warranty	5000h
Reflector	White
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position is available

STANDARD SINGLE TUBE CONSTRUCTION TYPES

Additional Standard End Terminations Available Upon Request

SINGLE TUBE RS INFRARED LAMPS

High Quality Raw Material

Combining high-quality transparent quartz tube materials and halogen principles, effectively increasing the density of infrared radiation. This achieves the user's ideal heating purpose.

OEM Service

We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer's specific technical instructions.

We can produce many sizes and types heat lamp according to customers requirement, and so on. If have drawing is best, then we can do samples for you.

FAQ

Q1. Can all the products be customized?

A: We are the factory of making IR lamps, UV lamp, IR accessories. All the our products can be made by the details you provide.

Q2. What is the outer package of the product?

A: carton packing or wooden packing.

Q3. Processing cycle?

A: Some of products we have in stock. Usually need about 15 days to make.

Q4. Order quantity?

A: Customized IR Lamps Usually is 10 pieces.
