Your Infrared Radiator Customization Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | UVIR |
| Certification: | CE |
| Model Number: | SHW100135-8 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | Each lamp in a cylinder .Then in a professional plywood box. |
| Delivery Time: | 15-20 work days |
| Power(W): | 3000W | Working Time: | 5000h |
|---|---|---|---|
| Heating Length: | 280mm | Reflector: | White |
| Base: | SK18 | Filament Type: | Tungsten |
| Reponse Time: | 1s | Voltage: | 400V |
| Total Length: | 355mm | ||
| Highlight: | 3000W Quartz Infrared Heaters Lamp,400V Quartz Infrared Lamp,SK18 Base Quartz Infrared Heaters Lamp |
||

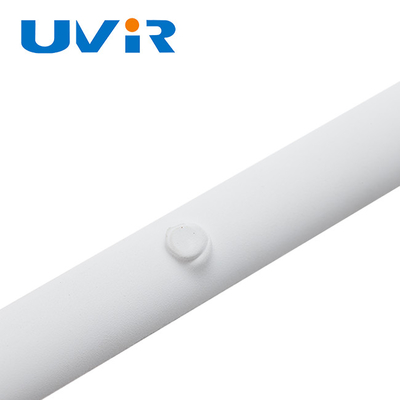

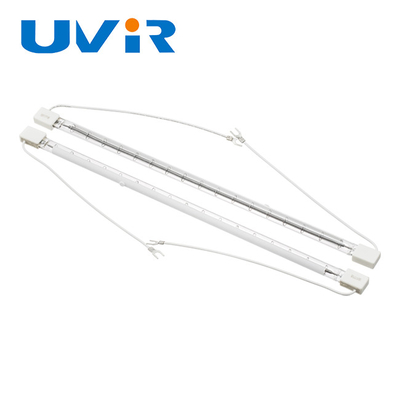

SK18 White reflector infrared single tube lamp 3000W 400V quartz infrared heaters lamp
UVIR Heating Lamp Advantage
- Lamp materials: manufactured from foreign imported high-end quartz tube.
- Longer serving life:the mid-temp and low-temp ones 5000 hours.
- Hight efficiency:more than 85% heat efficiency of full power.
- More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
- Clear heating means:Don't worry about surface corrosion and dropping off.
- Quick controllable heat:the heating time is controllable as it is needed.
- Clean and adorless:no risk of contamination over environment or target object to be heated.
- Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
- Energy Saving:less energy consumption,smaller footprint and better heating results.
Products Description
Infrared heater which is best matched to the materials to be heated, can provide energy savings of up to 50% over other technologies. and our professional Infrared technology can know heat exactly where it is needed, with the optimum wavelength for the product.
| Product |
IR lamp for PET BLOWING MACHINES |
| Model |
SHW100135-8 |
| Voltage |
400V |
| Wattage |
3000W |
| Base |
SK18 |
|
Material |
Quartz tube |
| Reflector |
Ceramic white |
|
OEM/ODM |
many types of voltage,wattage,length,base,cables,universal burning position is available |

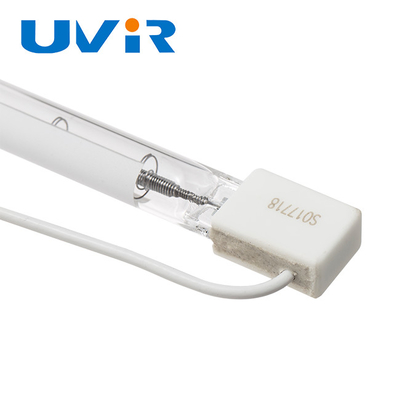

Ceramic terminal
Made of ceramic materials, it is resistant to high temperature and not easy to age.
END TERMINATIONS FOR SINGLE TUBE IR LAMPS
IR lamp for PET BLOWING MACHINES
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!
| Toshiba |
Wattage (W) |
Voltage(V) |
Base |
Reflector |
|
JHC 235V 1000W 272 BfH |
1000W | 230-240 |
SK15/SK16/SK18 |
White |
|
JHS 235V 1000W 272 JU |
1000W | 230-240 | X | Clear |
|
JHC 235V 1000W 272 JH |
1000W | 230-240 | X | White |
|
JHC 144V 1200W 155 BfH |
1200W | 144V | SK15/SK16/SK18 | White |
|
JHC 235V 1200W 155 BfH1 |
1200W | 230-240V | SK15/SK16/SK18 | White |
| JHC 240V 1200W 155 BfH1 | 1200W | 230-240V | SK15/SK16/SK18 | White |
| JHC 235V 1500W 280 BfH1 | 1500W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 144V 1600W 155 JcH |
1600W | 144V | SK17 | White |
|
JHC 144V 1600W 155 BfH |
1600W | 144V | SK15/SK16/SK18 | White |
| JHC 235V 1600W 155 BfH1 | 1600W | 230-240V | SK15/SK16/SK18 | White |
| JHC 240V 1600W 406 BfH | 1600W | 230-240V | SK15/SK16/SK18 | White |
| JHC 235V 2000W 280 BfH | 2000W | 230-240V | SK15/SK16/SK18 | White |
| JHC 235V 2000W 280 BfH2 | 2000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 235V 2000W 410 JH |
2000W | 230-240V | X | White |
|
JHC 235V 2000W 500 BfH |
2000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 235V 2000W 700 BfH |
2000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 235V 2500W 280 BfH3 |
2500W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 400V 2500W 280 BH |
2500W | 400V | SK15/SK16/SK18 | White |
|
JHC 400V 2500W 315 BH |
2500W | 400V | SK15/SK16/SK18 | White |
|
JHC 235V 3000W 280 BfU |
3000W | 230-240V | SK15/SK16/SK18 | White |
|
JHC 400V 3000W 280 BH |
3000W | 400V | SK15/SK16/SK18 | White |
|
JHC 400V 3000W 315 BH |
3000W | 400V | SK15/SK16/SK18 | White |
|
JHC 235V 3000W 700 BfH2 |
3000W | 400V | SK15/SK16/SK18 | White |
|
JHC 400V 3000W 700 BfH1 |
3000W | 400V | SK15/SK16/SK18 | White |
Product Coding Rule Table:
APPLICATION SCENARIO
Our lamps also can used in more industries,such as:The floor,glass,metal,paper,packaging,
powder,coating,rubber,textile,wood,semiconductors and etc...
If you have any requirement,please contact us.
FAQ
1.Are you a factory or trading company?
We are a professional factory.
2.Where is your factory located?How can I visit there?
Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome
all the clients at home and broad to visit us!
3. Can I get some samples?
We are happy to offer samples for you to check and test.
4.Do you have any MOQ limit?
Low MOQ,10pcs for sample checking is available.
5.What about the lead time?
15days after receive your payment.
6.How does your factory do regarding quality control?
"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has
gained CE,ISO9001,RoHS,SGS authentication.
7.Can I customize the printing of the packing and print our logo on the ir lamps?
Yes.we provide OEM and ODM service. our advantage is customized according your request.
