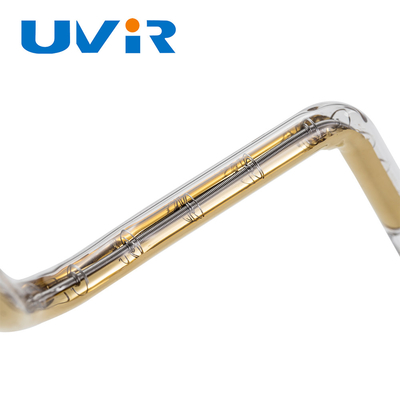

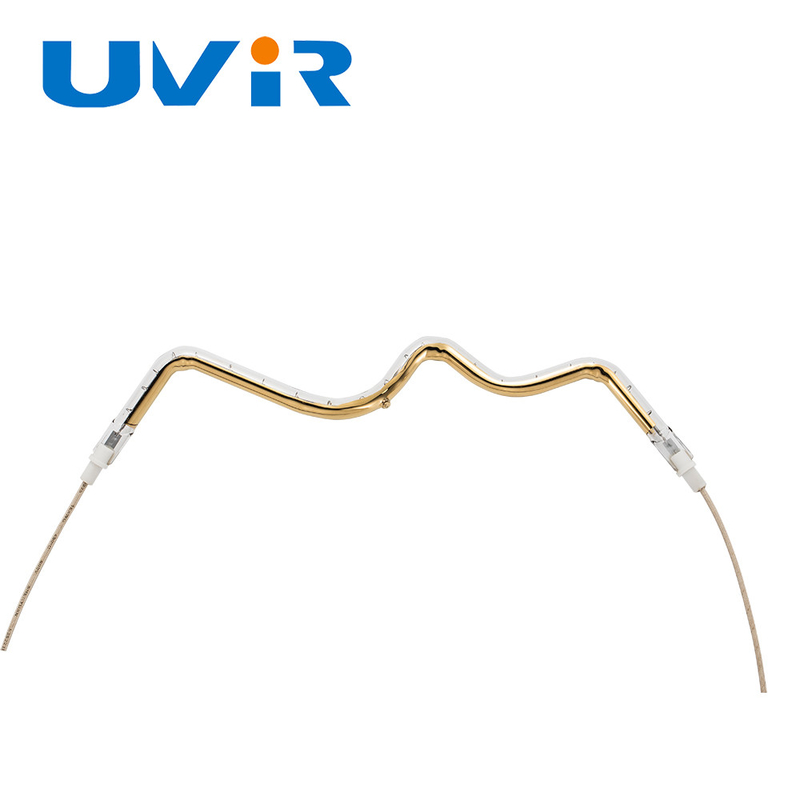

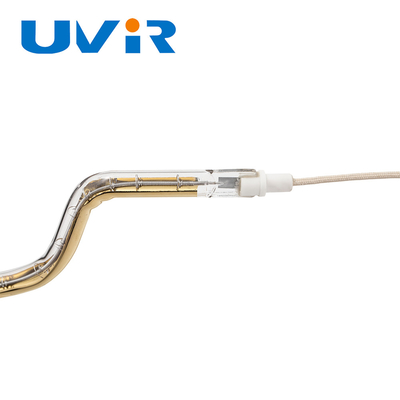

UVIR Gold Quartz Infrared Heating Tube 1800-2200°C

Name: UVIR Gold Quartz Infrared Heating Tube 1800-2200°C
Brand: Guangdong Youhui Technology Co., Ltd.
SKU: 3D Contoured
Price: 101.00 USD
Availability: InStock

Brand Name:	UVIR
Model Number:	3D Contoured
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Brand Name:

UVIR

Material:

Quartz Tube

Filament Temp:

1800° C-2200° C

Color:

GOLD

Beam Angle(°):

360

Peak Wavelength:

1.2 - 1.4 μm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

1.4um Infrared Heating Element Tube

360 Degree Infrared Heating Element Tube

3D Contoured Infrared Heating Tube

Product Description

Customized Special Shape Infrared Heating Tube Lamp Single Element

Product Specifications

Brand Name	UVIR
Material	Quartz Tube
Filament Temperature	1800°C - 2200°C
Color	GOLD
Beam Angle	360°
Peak Wavelength	1.2 - 1.4 μm

Product Overview

Customized special shape heating lamp single tube infrared Element Tube designed for precision industrial heating applications.

IR Lamp Configuration Options

Customizable lamp type, total length, and heating length
Adjustable wattage and voltage specifications
Ceramic end connections available
Standard 300mm lead wire length (custom lengths available)
Coating options: Gold coating or Ceramic coating

Product Name	3D Contoured emitters
Voltage (V)	45-480V
Wattage (W)	150-6000W
Material	Quartz Tube
Light Source	Tungsten filament
Reflector	GOLD

Infrared Heating Technology Advantages

Our quartz infrared lamps deliver rapid, efficient heating with precise wavelength matching for industrial applications:

Instant activation (1-2 second response time)
Precise temperature control (±1℃ accuracy)
Adjustable output via voltage regulation
Compact design with flexible mounting options
High-efficiency gold reflector coating (90% reflectivity)
Available in multiple wavelength ranges:
- Short wave (0.9~1.4μm)
- Fast response medium wave (1.4~2.0μm)
- Carbon medium wave (2.0~2.5μm)
- Medium wave (2.2~3.2μm)

Standard Contour IR Lamps for 3D Applications

Contact us for custom configurations if our standard models don't meet your requirements. Our engineering team can provide technical drawings and specifications.

Industrial Applications

Plastic forming and thermoforming
Bottle blowing and PET preform heating
Paint drying and ink fusing
Food processing and catering equipment
Paper mill drying processes
Semiconductor manufacturing
Various industrial drying applications

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1pc for sample checking is available.

What about the lead time?

15 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." Our factory maintains CE, ISO9001, RoHS, and SGS certifications with strict quality control from raw materials to finished products.

About customized service?

We provide OEM services including custom heat solutions and logo printing to meet your specific requirements.

About after-sale service?

Any confirmed quality issues will be promptly addressed and compensated.
