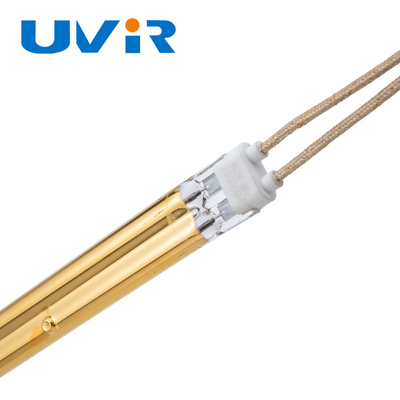

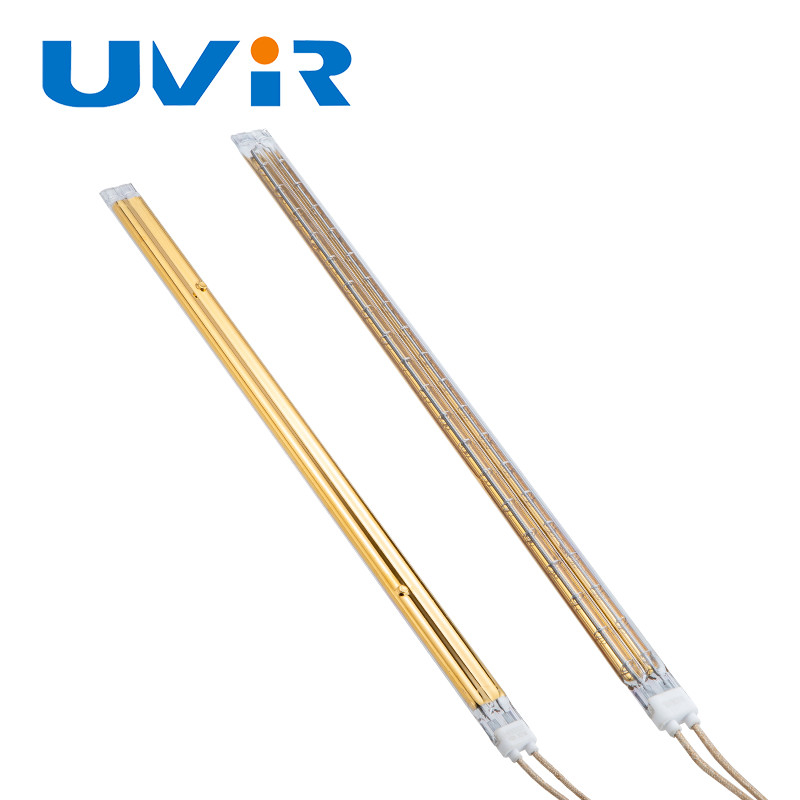

TC05 Quartz Halogen Infrared Heat Lamp 3825W 400V Gold

Brand Name:	UVIR
Model Number:	THG100124
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Color:

Gold

Power:

3825W

Material:

Quartz Tube

Reponse Time:

1-2s

Cable Wire:

High Temperature Resistant Wire

Voltage:

400V

Total Length:

445mm

Heating Length:

390mm

Type:

Size:

11*23mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Product Description

TC05 Quartz Halogen Infrared Heat Lamp 3825W IR For Paint Drying

Product Specifications

Color	Gold
Power	3825W
Material	Quartz Tube
Response time	1-2s
Cable Wire	High Temperature Resistant wire
Voltage	400V
Total length	445mm
Heating length	390mm
Type	B
Size	11*23mm

Short Wave IR Lamp Advantages

Wavelength controlled in the range of 0.76~1.4μm, allowing selection based on workpiece material characteristics
High thermal efficiency with infrared radiation efficiency over 86% in specific wavelengths
Rapid response: reaches 50% power in 1-2 seconds, full power in 2-4 seconds
Compact size with high power capacity (single tube up to 6000W)
Optional gold-containing directional reflecting layer for improved efficiency
Premium quartz glass and heating wire materials ensure long service life (5000+ hours)
Compatible with automatic temperature control systems for precise regulation

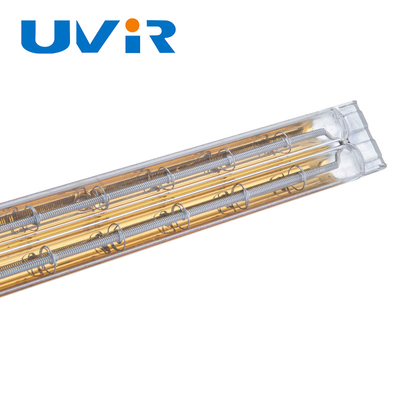

Twin Tube Short-Wave IR Lamps

Main components:

Technical Specifications

Type	Twin Tube Short Wave Halogen Infrared Heating Lamp
Size	11*23mm
Coating	White/Gold/Clear
Power	3825W
Voltage	400V
Customization	Available for voltage, wattage, length, base, cables, and burning position
