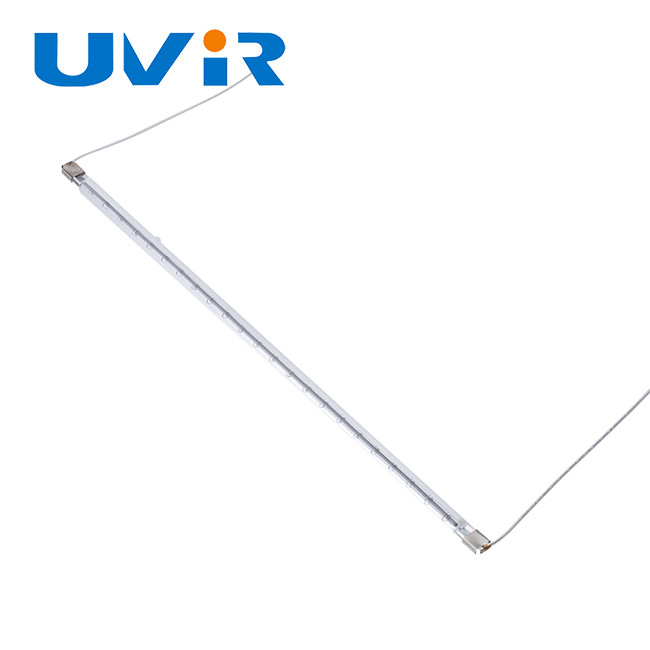

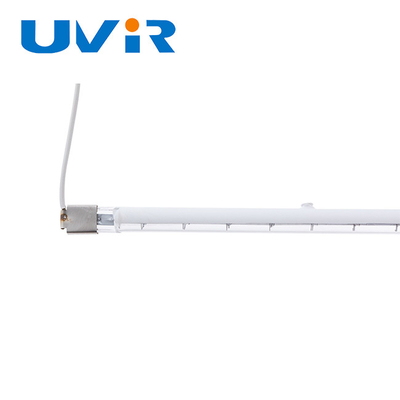

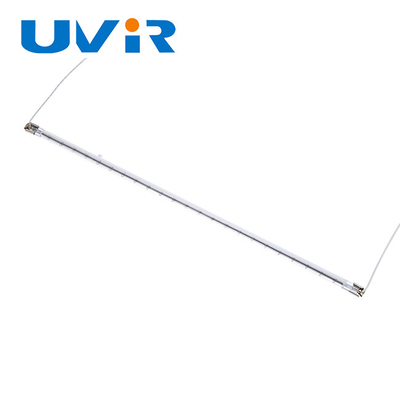

SK17 Short Wave IR Halogen Heater Lamp 3200W 384V

SK17 Short Wave IR Halogen Heater Lamp 3200W 384V

Brand Name:	UVIR
Model Number:	SHW100268
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Wave Length:

Short Wave

Reflector:

White

Application:

Heating

Material:

Tungsten(filament),quartz(tube)

Lamp Base:

SK17

Working Time:

5000h

Filament Temperature:

1100-2600°C

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Power:

3200W

Voltage:

384V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

SK17 Quartz Halogen Infrared Heater Lamps

Quartz Halogen Infrared Heater Lamps Tube

Industrial quartz infrared heating lamp

Product Description

SK17 Quartz Halogen Infrared Heater Lamps Single tube for Industrial

Product Specifications

Attribute	Value
Wave Length	short wave
Reflector	White
Application	Heating
Material	Tungsten (filament), quartz (tube)
Lamp Base	SK17
Working time	5000h
Filament temperature	1100-2600°C
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available
Power	3200W
Voltage	384V

Product Description

Heating element SK17 Single tube quartz infrared heating lamp for Industrial heating

Applications by Industry

Industry	Applications	Recommended Lamp Type
Plastics	• Bottle blowing • Thermoforming • Plastic forming • Welding • Serigraphy • Strapping	Half white reflector infrared lamp
Paper	• Drying • Copying • Offset printing • Ink jet • Serigraphy	Clear short wave heat lamp Half white heat lamp
Food	• Food catering • Food processing	Ruby heat lamp round halogen oven lamp
Wood & Composites	• Drying • Curing • Powder coating	White reflector infrared heat lamp Gold reflector heat lamp
Shoes & Fabrics	• Drying • Curing	White reflector/gold reflector/clear/ruby
Metal	• Strapping • Coil coating • Powder coating	Gold reflector heat lamp/twin tube IR lamp
Paint	• Automobile repair shops • Powder coating	Ruby jacked heat lamp/reflector lamp
Animal care	• Breeding and rearing of animals • Veterinary clinics, zoos, pet shops and beauty parlors	Ruby IR lamp

IR Lamp Specifications

Product name	Single tube IR heating lamps
Material	Quartz glass
Voltage	384V, customized
Wattage	3200W, customized
Base	SK17
Warranty	5000h
Reflector	White
OEM/ODM	Many types of voltage, wattage, length, base, cables, universal burning position available

Design Characteristics

• Power from 200 to 5,000 W

• Voltage from 24 to 575 V

• Short, Medium and Long-Wave IR designs

• Filament temperatures from 1,100°C to 2,600°C

• Heat lengths from 50 to 1,500 mm

• Reflective layers: gold, white

• Fast response time, 1 second for S-W

• Tube diameters from 8 to 25 mm

• Standard stock items for immediate delivery

• Custom and OEM designs available

Standard Single Tube Construction Types

Additional Standard End Terminations Available Upon Request

High-Quality Coating (Optional)

The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss.

After Sales Service

Package tracking
Technical support
24 hours working time
Discount for reorder
Replacements for quality problems
Confidentiality of customer information

Frequently Asked Questions

1. Are you a factory or trading company?

We are a professional factory.

2. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We warmly welcome all clients to visit us!

3. Can I get some samples?

We are happy to offer samples for you to check and test.

4. Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

5. How long shall I wait for quotation?

Usually we will quote you the best price within 24 hours after your inquiry. For special customized heating lamps, the time needed for samples could be longer.

6. Do you offer guarantee for the products?

Yes, we will confirm the guarantee period in formal quotation together with data sheet.
