SK15 Carbon Fiber Infrared Heating Lamp 1100-2600°C Medium Wave

SK15 Carbon Fiber Infrared Heating Lamp 1100-2600°C Medium Wave

Brand Name:	UVIR
Model Number:	SCW100029
MOQ:	2
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Carbon Medium Wave IR Lamp

Base Type:

SK15

Warranty(Year):

1 Year

Color:

White

Wave Length:

Medium Wave

Filament Temperature:

1100-2600°C

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

SK15 Carbon Fiber Infrared Heating Lamp

1100 degree Carbon Fiber Infrared Heating Lamp

2600 Degree Medium Wave Infrared Heater

Product Description

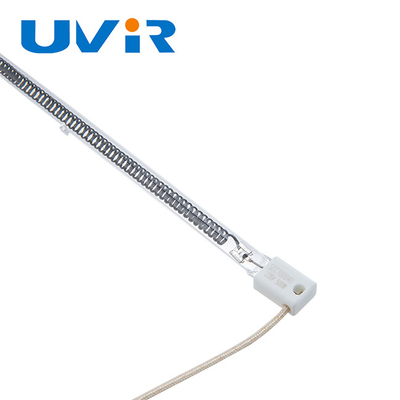

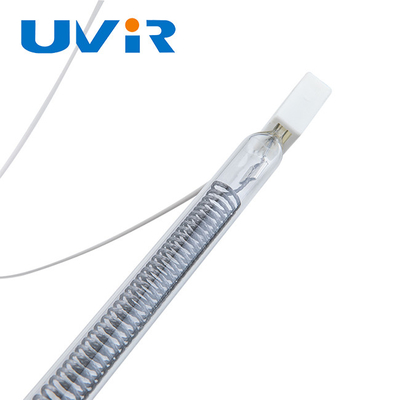

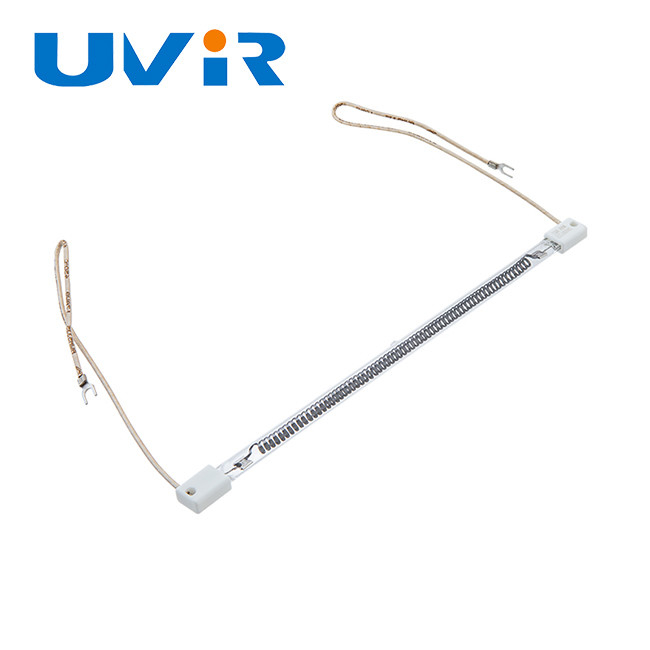

SK15 Carbon Fiber Infrared Heating Lamp

1100-2600 Degree Medium Wave Infrared Heater

Product Specifications

Attribute	Value
Type	Carbon medium wave IR lamp
Base Type	SK15
Warranty	1 Year
Color	White
Wave Length	Medium wave
Filament temperature	1100-2600°C
OEM/ODM	Custom voltage, wattage, length, base, cables, and universal burning position available

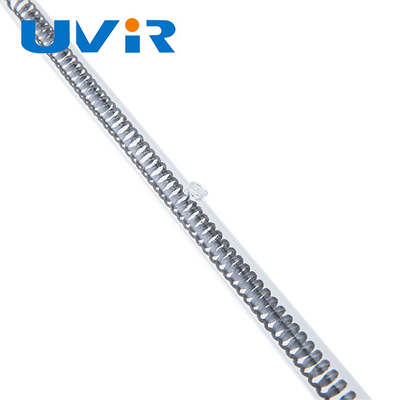

Carbon Fiber Infrared Heating Element

Medium wave quartz tube for curing applications

Key Benefits

Carbon Fiber Heat Lamp

High-quality imported carbon fiber filament
Smooth finished filament that doesn't fluff
Optimized power for maximum longevity

Quartz Glass Tube

High-temperature quartz glass construction
Extended service life: over 5000 hours
Non-toxic with no odor, eliminating contamination risks

Technical Details

Product name	Medium wave Carbon IR heating lamp
Heating length	50-1500mm (Customizable)
Voltage	220V (Customizable)
Wattage	1000W (Customizable)
Base	SK15
Material	Quartz tube
Reflector	White

High Temperature Ceramic Base

The infrared heating lamp ceramic is made of high-quality ceramic material, which is resistant to high temperature.

High-Quality Coating (Optional)

The semi-plated white coating uses special technology with quartz powder to reflect more than 90% of infrared heat in the same direction, reducing energy loss.

Infrared wavelengths are in the range of the 750nm to 1mm electromagnetic spectrum.

Application Scenarios

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products (e.g., banner machines)

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

Frequently Asked Questions

Can all the products be customized?

We are the factory specializing in IR lamps, UV lamps, and IR accessories. All our products can be manufactured to your specifications.

What is the outer package of the product?

Carton packing or wooden packing options available.

Processing cycle?

Some products are available in stock. Custom orders typically require about 15 days for production.

Order quantity?

Minimum order quantity for customized IR lamps is usually 2 pieces.
