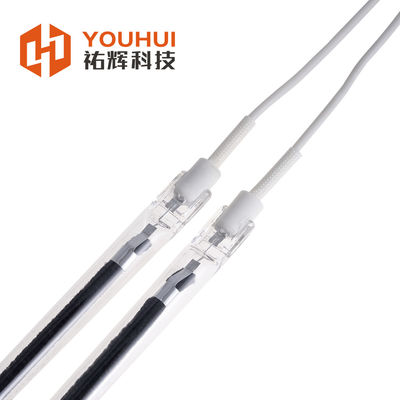

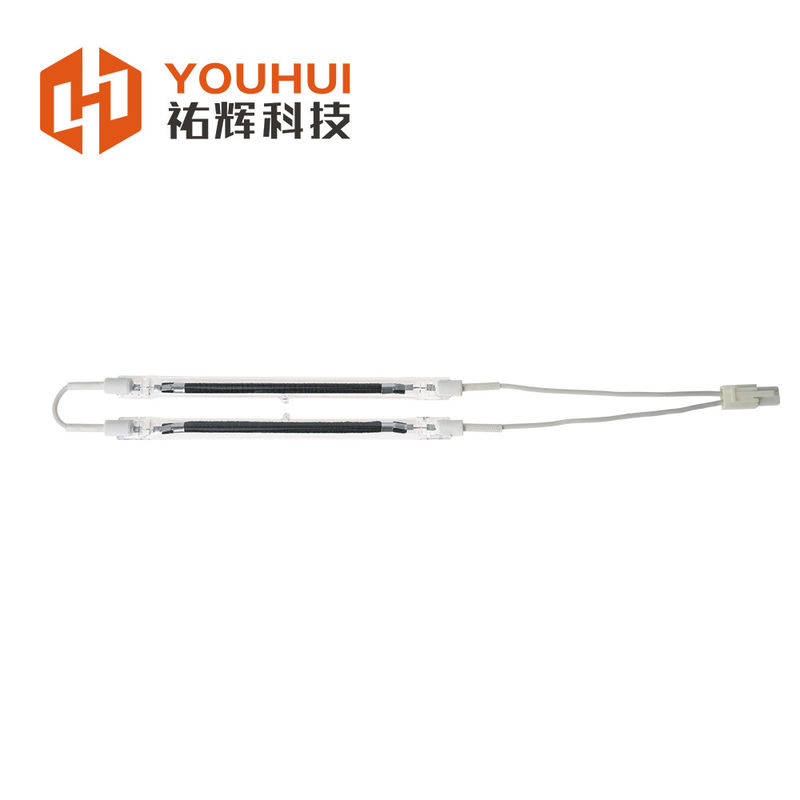

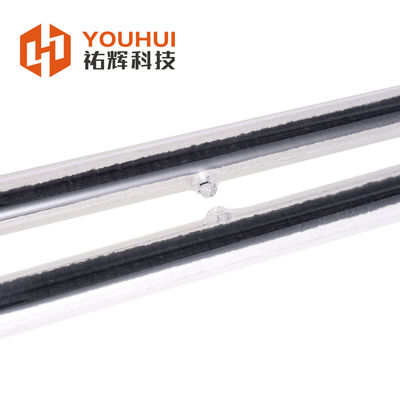

Single Tube Carbon Felt IR Heating Lamp R7S Base for Industrial Drying

Single Tube Carbon Felt IR Heating Lamp R7S Base for Industrial Drying

Brand Name:	UVIR
Model Number:	SCC100078
MOQ:	2
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty(Year):

1year

Heating Length:

50-1500mm

Reflector:

Clear

Base Type:

R7S

Material:

Quartz Tube/tungsten Wire

OEM/ODM:

Many Types Of Voltage,wattage,length,base,cables,universal Burning Position Is Available

Type:

Single Carbon IR Lamp

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Drying carbon felt infrared heating lamp

carbon felt infrared heating lamp

Product Description

Single Tube Carbon Felt Infrared Heating Lamp For Drying And Heating Water-based Paint

Product Specifications

Attribute	Value
Warranty	1 year
Heating length	50-1500mm
Reflector	Clear
Base type	R7S
Material	Quartz tube/tungsten wire
OEM/ODM	Available for voltage, wattage, length, base, cables, universal burning position
Type	Single Carbon IR Lamp

IR Lamp Advantages

Premium materials: Manufactured from imported high-end quartz tube
Extended lifespan: 5000 hours for mid-temp and low-temp models
High efficiency: Over 85% heat efficiency at full power
Energy-saving reflective layer: Gold or non-organic coating concentrates radiation energy
Clean heating process: No surface corrosion or material dropping
Precise heat control: Adjustable heating time as needed
Environmentally friendly: No contamination risk to environment or target objects
Customizable: Wavelength, dimensions, and filaments can be adjusted
Energy efficient: Lower consumption, compact size, superior heating results

Product Description

Our infrared heaters provide optimal energy savings of up to 50% compared to other technologies, with precise heating at the required wavelength for your specific application.

Type	Short wave IR lamps
Model	SCC100078
Voltage	55-575V
Wattage	200-4000W
Base	R7S
Lamp tube material	Quartz tube
Reflector	Clear
OEM/ODM	Available for voltage, wattage, length, base, cables, universal burning position

Carbon Felt Infrared Heating Lamp

High-Quality Coating (Optional)

The semi-plated white coating uses quartz powder technology to reflect over 90% of infrared heat in one direction, minimizing energy loss.

Safety Precautions

Install in environments free from flammable, explosive, corrosive gases and conductive dust
Ensure proper positioning and fixation using appropriate metal or ceramic pipe clamps
Handle quartz glass components carefully to prevent mechanical damage
Implement necessary protective measures based on the heated object's specific conditions

Frequently Asked Questions

1. Are you a factory or trading company?

We are a professional factory.

2. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We warmly welcome all clients to visit us!

3. Can I get some samples?

We are happy to offer samples for you to check and test.

4. Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

5. What about the lead time?

15 days after receiving your payment.

6. How does your factory do regarding quality control?

"Quality is priority." We maintain strict quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

7. About customized service?

We provide tailored heating solutions and OEM services, including custom branding as required.

8. About after-sale service?

Any confirmed quality issues will be compensated to our customers.
