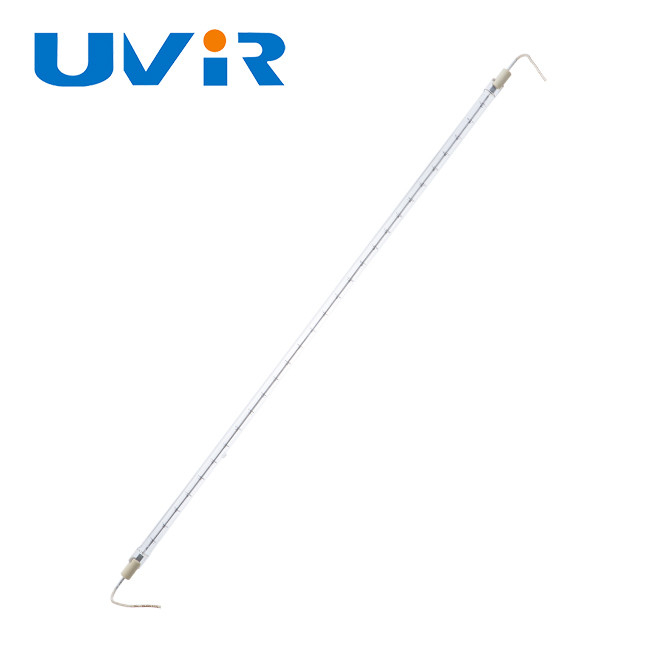

R7 Base Quartz Infrared Lamp 200-4000W Tungsten Filament

Name

R7 Base Quartz Infrared Lamp 200-4000W Tungsten Filament

Brand Name:	UVIR
Model Number:	SHC100506
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Item:

Short Wave Single IR Lamp

Lamp Base:

R7

Power:

200-4000W

Total Length:

50-1500mm

Tube Diameters:

8-24mm

Material:

Quartz Tube/tungsten Wire

Worktime:

5000h

Filament Temperature:

1100-2600°C

Application:

Infrared Heater, Painting Drying

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

UVIR Quartz Infrared Lamps

,

Tungsten Wire Quartz Infrared Lamps

,

R7 Base Uv Ir Lamps

Product Description

UVIR Quartz Infrared Lamps R7 Base Tungsten Wire with Transparent Tube

Product Specifications

Attribute	Value
Item	Short wave Single IR Lamp
Lamp Base	R7
Power	200-4000W
Total length	50-1500mm
Tube diameters	8-24mm
Material	Quartz tube/tungsten wire
Worktime	5000h
Filament temperature	1100-2600°C
Application	Infrared heater, Painting drying

Custom Infrared Heat Element

R7 base IR quartz heat tube with transparent tube designed for efficient infrared heating applications.

UVIR Infrared Lamp Applications

Infrared radiators offer superior performance compared to traditional hot air, ceramic, gas, or metal radiators. Key advantages include:

No contact or intermediate conversion medium required
Rapid energy release for precise heating control
Energy savings up to 50% compared to conventional methods

Technical Parameters

Parameter	Specification
Product name	Single tube shortwave IR Lamp
Filament	Tungsten
Voltage (V)	55-575V
Wattage (W)	200-4000W
Base type	R7
Tube material	Quartz tube/tungsten wire
Reflector	Clear
Customization	Available for voltage, wattage, length, base types, cables, and universal burning positions

R7 Base Quartz Infrared Lamp 200-4000W Tungsten Filament 0

Performance Features

High temperature heating with high thermal efficiency and long life.

Tungsten wire heats the gas in the quartz tube under AC voltage, producing efficient infrared radiation. Features include:

Excellent quality quartz tube
High power density
Rapid heating response
Energy efficient operation
Extended service life

R7 Base Quartz Infrared Lamp 200-4000W Tungsten Filament 1

Infrared Spectral Comparison

Different infrared spectral radiation curves at the same power level.

R7 Base Quartz Infrared Lamp 200-4000W Tungsten Filament 2

About Our Company

We specialize in manufacturing and wholesale distribution of:

Ultraviolet lamps
Infrared lamps
UV germicidal lamps
Xenon lamps
Special light sources and accessories
Lamp stands and transformers

Custom solutions available to meet specific customer requirements.

After Sales Support

Package tracking
Technical support
24-hour response time
Discounts for repeat orders
Quality problem replacements
Strict customer confidentiality
