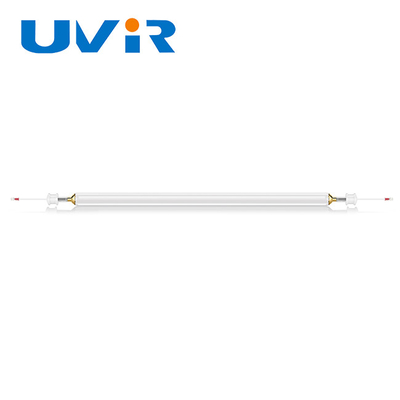

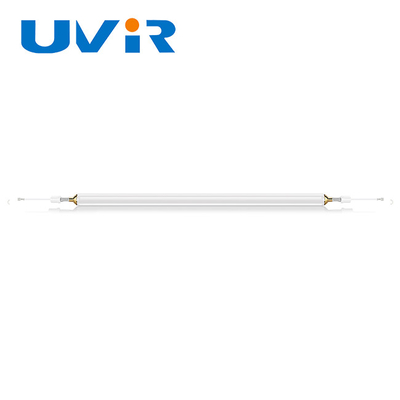

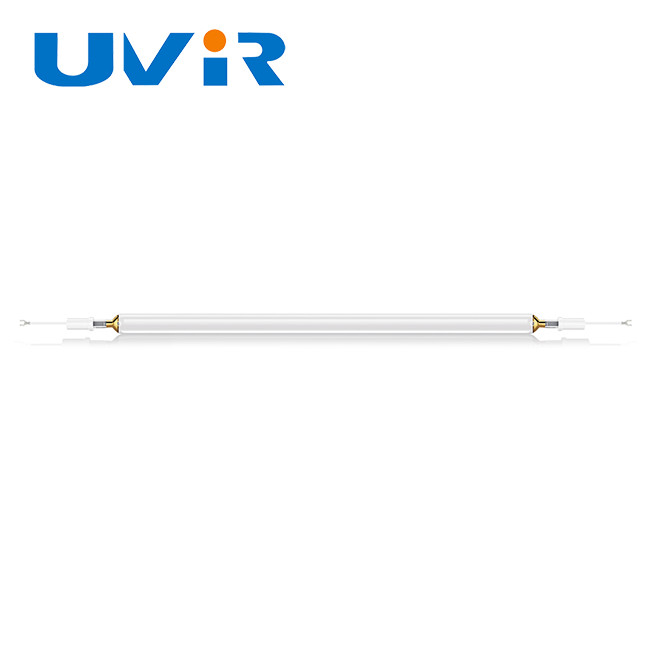

Metal Halide UV Curing Lamp 19.9kW 660V for Industrial Applications

Metal Halide UV Curing Lamp 19.9kW 660V for Industrial Applications

Brand Name:	UVIR
Model Number:	XUV 105199 DC
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Metal Halide Lamp

Place Of Origin:

Guangdong, China

Head Base:

Ceramic

Application:

Light Curing, UV Printing,UV Drying

Total Length:

1145mm

Voltage:

660V

Base:

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Medium pressure UV Curing Lamp

RoHS UV Curing Lamp

SGS metal halide light bulb

Product Description

Medium Pressure UV Curing Lamp Metal Halide RoHS SGS Authentication

Product Attributes

Attribute	Value
Type	Metal halide lamp
Place of Origin	Guangdong, China
Head Base	Ceramic
Application	Light curing, UV printing, UV drying
Total length	1145mm
Voltage	660V
Base	DC

Product Description

Iron lamp Medium pressure UV lamp curing lamp for Fiber Manufacturing

Features of Metal Halide Lamp

Metal Halide - By adding other elements/additives such as iron, lead, gallium, indium, etc. to the lamp tube, we can make a range of metal halide lamps. These additives alter the wavelength composition of the UV output of the lamp, making it suitable for deep UV curing of ultra-thick coatings. According to this characteristic, Yuyu metal halide lamps are widely used in PCB, wood-based coating, electronic product coating, optical fiber manufacturing, etc.

Our Advantages

Very Good And Stable Quality
24Hrs Customer Support
CE, ISO9001, RoHS, SGS authentication
Low MOQ, 1pcs for sample checking is available

Lamp Parameter

Power output	19.9kw
Wavelength	417nm
Arc length	1055mm
Material	High Quality Quartz Tube
End caps	Ceramic / metal
Service life	800 to 1000 hour

Provide you with professional curing solutions

We have professional team, can customization the UVA-UVB-UVC-UVV spectrum Provide technical support and overall design service for the painting, coating, glue, paint ink, coating UV curing and air purification, water treatment, UV photochemical reaction.

Other Parameters

Model No.	Power (KW)	Voltage (V)	Current (A)	Total Length (mm)	Arc length (mm)	Tube Φ (mm)	Lamp Base	Wave Peak
XUV 005004 FC	0.4	90	5	115	50	17	FC	365nm
XUV 020010 BC	1	135	8	335	200	22	BC	365nm
XUV 025020 AC	2	300	7.5	400	250	22.5	AC	365nm
XUV 025030 AC	3	700	5	360	250	25	AC	365nm
XUV 025040 DC	4	320	14	330	250	25	DC	365nm
XUV 070056 BC	5.6	950	7.2	825	700	25	BC	365nm
XUV 050060 AC	6	850	7.8	640	500	22.5	AC	365nm
XUV 065070 HC	7	928	7.4	780	653	22.5	HC	365nm
XUV 100080 BC	8	850	9	1172	1028	22.5	BC	365nm
XUV 124096 AC	9.6	1500	8	1387	1247	25	AC	365nm
XUV 112100 AC	10	1500	7.2	1260	1120	23	AC	365nm
XUV 130120 AC	12	1800	7.5	1440	1300	25	AC	365nm
XUV 120144 AA	14	2300	6.3	1328	1200	26	AA	365nm
XUV 077150 AH	15	1250	12	870	770	25	AH	365nm
XUV 107160 AC	16	2000	8	1185	1070	28	AC	365nm
XUV 150180 BC	18	1730	10.6	1600	1500	25	BC	365nm
XUV 105199 DC	19.9	660	30	1145	1055	27	DC	365nm
XUV 143200 AC	22	2000	11	1430	1530	28	AC	365nm

If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!

Application Area

UV Printing: Offset plate, letterpress, flexo, inkjet, glue, hot melting, inseparably linked printing
UV Painting: For CD; for electronic components; such as printed circuit boards and resistors; film coating; photo conductor; wood, plastic; UV coating of three-dimensional objects made of plastic, glass and wood
UV disinfection: sterilization and disinfection of food packaging materials, air, packaging films and etc.
UV adhesion; for DVD; electronic components, display screen, sensors; for glass; jewelry, furniture; plastic parts; precision mechanical components; medical technology; needles, catheters; optical components; lenses, prisms and optical conductors
UV embedment: UV light curing in the glass industry, electronic components and mechanical components, medical technology, manufacturing of optical products, and stone manufacturing

After Sales Service

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 5-7 days, about 30 days for mass production.

Q3. Do you have any MOQ limit?

A: Usually MOQ is 100pcs for each model.

Q4. How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT for sample. Airline and sea shipping for large quantity

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system. Secondly, during the guarantee period, we will send the replacement in next order.
