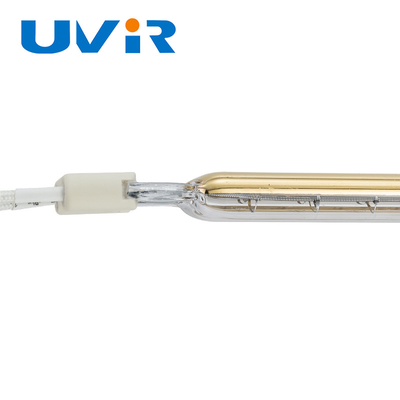

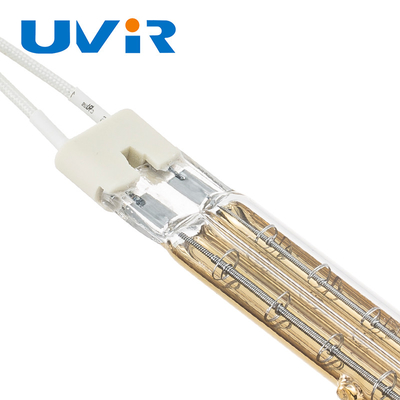

Gold Coated Twin Tube Short Wave Infrared Lamp 3500W

Name

Gold Coated Twin Tube Short Wave Infrared Lamp 3500W

Brand Name: UVIR
Model Number: TMG100177
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Tube Material:
Quartz Glass
Color:
Gold
Warranty:
1500W
Product Name::
Tungsten Halogen Lamp
Respend Time:
1-2s
Power:
3500W
Input Voltage(V)::
400V
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

400V Twin Tube Infrared Lamps

,

1500W Twin Tube Infrared Lamps

,

Tungsten Halogen Short Wave Infrared Lamp

Product Description
Gold Coating Twin Tube Infrared Lamps
Industrial Heating Short Wave Infrared Lamp
Product Specifications
Attribute Value
Tube Material Quartz Glass
Color Gold
Warranty 1500W
Product Name Tungsten Halogen Lamp
Response Time 1-2s
Power 3500W
Input Voltage 400V
Short Wave IR Lamp Advantages
  • Precise wavelength control (0.76~1.4μm) tailored to workpiece material characteristics
  • High thermal efficiency (86%+ infrared radiation efficiency) with rapid response (1-4 seconds to full power)
  • Compact design with high power capacity (single tube up to 6000W)
  • Optional gold-containing directional reflecting layer for enhanced efficiency
  • Premium quartz glass construction ensures long service life (5000+ hours)
  • Compatible with automated temperature control systems for precise regulation
Gold Coated Twin Tube Short Wave Infrared Lamp 3500W 0 Gold Coated Twin Tube Short Wave Infrared Lamp 3500W 1 Gold Coated Twin Tube Short Wave Infrared Lamp 3500W 2
Product Specifications Table
Gold Coated Twin Tube Short Wave Infrared Lamp 3500W 3
Voltage (V) Wattage (W) Twin Tube Total Length Heated Length Design Type Gold White Clear
If the parameter is not suitable for you, please contact us. We have a professional team to provide customized solutions.
Customized Service
  • Tailored infrared heater lamps designed to your exact specifications
  • Single unit available for quality testing before bulk orders
  • OEM services including custom logo printing
After-sale Service
  • 5,000 hours warranty for short wave infrared heat lamps
  • Free replacement for non-man-made quality issues during warranty period
Installation Precautions
  • Always turn off power before installation or replacement
  • Never exceed maximum rated voltage (V ≤ 110% of rated voltage)
Gold Coated Twin Tube Short Wave Infrared Lamp 3500W 4
