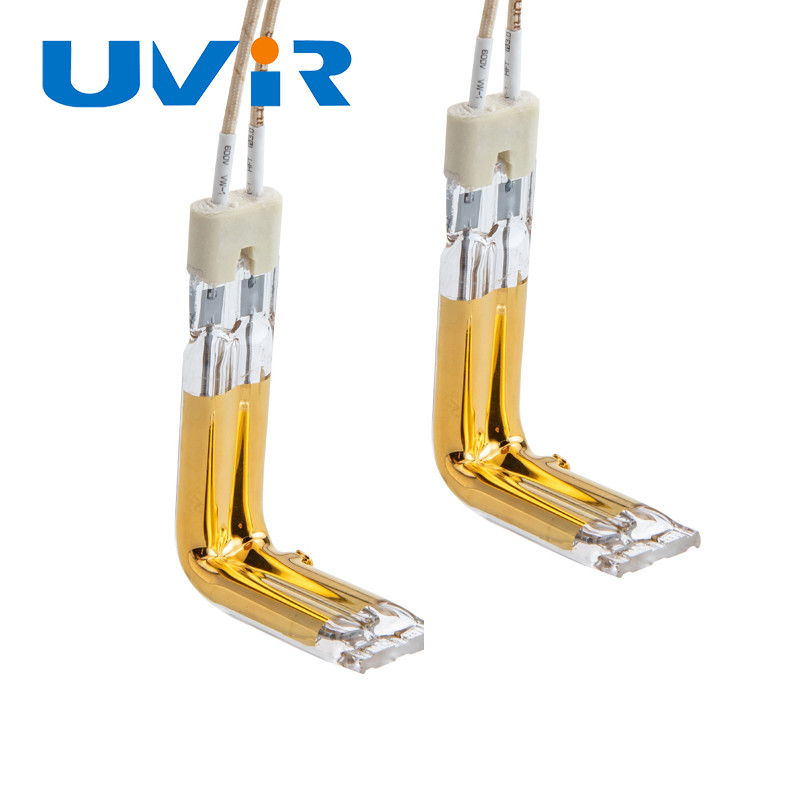

Gold Coated Halogen Quartz Infrared Heating Lamp 1380W 230V

Gold Coated Halogen Quartz Infrared Heating Lamp 1380W 230V

Brand Name:	UVIR
Model Number:	L-type
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lifespan (hours):

10000-20000h

Specification:

8-14mm

Name:

Electric Protection Glass Halogen Convection Oven Lamp

Filament Temp:

1100-2600C

Response Time:

1-2s

Power:

1380W

Voltage:

230V

Coating:

Gold

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

3D Contoured Infrared Lamp

Gold Coated Infrared Contour Lamps

Double Quartz Tube Infrared Heating Element

Product Description

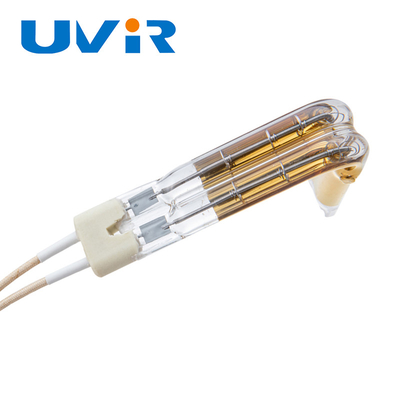

Double Tube Halogen Quartz Tube Infrared Heating Lamp Gold Coated

Product Specifications

Attribute	Value
Lifespan	10000-20000h
Specification	8-14mm
Name	Electric protection glass halogen convection oven lamp
Filament Temperature	1100-2600°C
Response Time	1-2s
Power	1380W
Voltage	230V
Coating	Gold

Product Description

Double tube gold coated halogen quartz tube infrared heating lamp with superior performance characteristics.

3D Contoured Infrared Lamp Advantages

Manufactured from imported high-end quartz tube materials
Extended service life: 5000 hours for mid-temp and low-temp models
High efficiency with over 85% heat efficiency at full power
Effective gold reflective layer concentrates radiation energy for maximum heating efficiency
Durable construction prevents surface corrosion and material degradation
Precise heat control with adjustable heating times
Clean operation with no environmental contamination or odors
Customizable wavelength, dimensions, and filaments to meet specific requirements
Energy efficient design reduces consumption while improving heating results

Technical Specifications

Parameter	Value
Product Name	3D Contoured Infrared Lamp
Reflector	Gold
Voltage Range	45-480V
Wattage Range	150-6000W
Quartz Tube Dimensions	8×18mm, 11×23mm, 15×33mm
Shape	3D

Available Parameters

115	410	10		SHG300169	SHW300001	SHC300002	280770

For custom parameter requirements, please contact our team. We provide professional consultation and technical drawings to meet your specific needs.

Our Services & Strength

Expert sales team for accurate communication
Professional technical team for product development
Technical production team for assembly line manufacturing
Quality inspection team for rigorous testing
Experienced after-sales team for customer support
