Gold Coated 1200W Twin Tube Halogen Infrared Heating Lamp

Gold Coated 1200W Twin Tube Halogen Infrared Heating Lamp

Brand Name: UVIR
Model Number: THG100162
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
CE & ROHS
Model No.:
THG100162
Material:
Glass Tube
Warranty Time:
5000 Hours
Heating Filament:
Tungsten
Color:
Gold
Type:
B
Power:
1200W
Voltage:
230V
Total Length:
405mm
Heating Length:
340mm
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box
Highlight:

Gold Coating Infrared Heat Lamp Tube

,

Infrared Heat Lamp Tube For Printing

,

SGS Infrared Heat Lamp Tube

Product Description
Gold Coating Twin Tube Halogen Infrared Heating Lamp
Product Specifications
Attribute Value
Model No. THG100162
Material Glass Tube
Warranty Time 5000 Hours
Heating Filament Tungsten
Color Gold
Type B
Power 1200W
Voltage 230V
Total Length 405mm
Heating Length 340mm
Key Advantages
  • Infrared heater provides energy savings up to 50% compared to other technologies
  • Consistent and reliable quality
  • 24-hour customer support
  • Certified with CE, ISO9001, RoHS, and SGS
  • Low minimum order quantity (1pc samples available)
Detailed Product Information
Type Twin Tube Short Wave Halogen Infrared Heating Lamp
Size 11X23mm
Coating Gold
Power 1200W
Voltage 230V
Customization Available for voltage, wattage, length, base, cables, and universal burning position

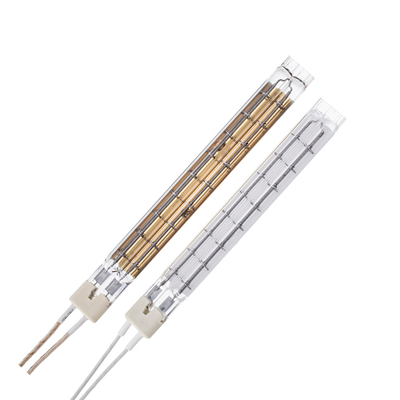

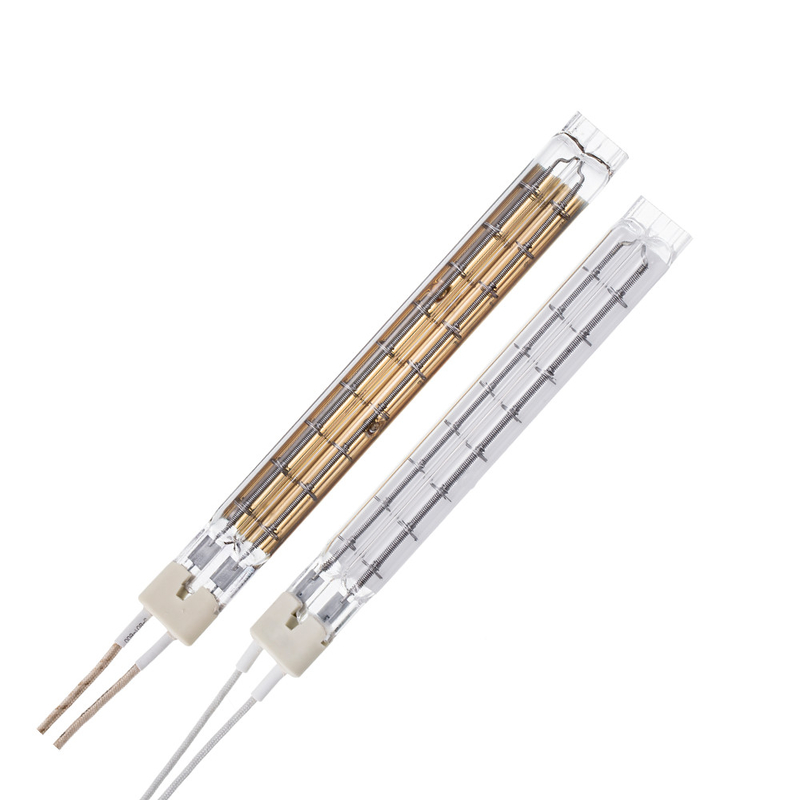

Gold Coated 1200W Twin Tube Halogen Infrared Heating Lamp 0 Gold Coated 1200W Twin Tube Halogen Infrared Heating Lamp 1
Standard Configurations
Contact us for custom configurations not listed below
Voltage (V) Wattage (W) Twin Tube Total Length Heated Length Design Type Gold White Clear
55 400 11x23 115 50 B THG100151 THW100025 THC100026
115 400 11x23 115 50 B THG100152 THW100026 THC100027
230 1200 11x23 405 340 B THG100162 THW100036 THC100037

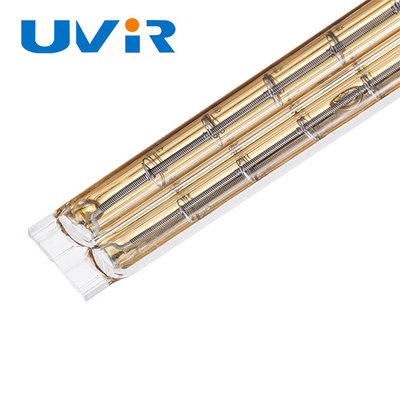

Gold Coated 1200W Twin Tube Halogen Infrared Heating Lamp 2
Applications
  • Industrial heating processes
  • Plastic welding and forming
  • Printing and drying applications
  • Food processing and packaging
  • Automotive and aerospace manufacturing
Gold Coated 1200W Twin Tube Halogen Infrared Heating Lamp 3
After Sales Service
  • Package tracking
  • Technical support
  • 24-hour response time
  • Discounts for repeat orders
  • Quality problem replacements
  • Customer information confidentiality
Frequently Asked Questions
Can I order samples?
Yes, we welcome sample orders to test quality. Mixed samples are acceptable.
What is the lead time?
Samples require 5-7 days, mass production about 30 days.
Is there a minimum order quantity?
Typically 2 pieces per model.
How are goods shipped?
Samples via DHL/UPS/FedEx/TNT. Large quantities by air or sea freight.
