700V 3000W UV Mercury Curing Lamp for Printing Machines

700V 3000W UV Mercury Curing Lamp for Printing Machines

Brand Name:	UVIR
Model Number:	XUV 025030 AC
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Mercury Lamp

Lifetime:

800-1000h

Total Length:

360mm

Power:

3Kw

Head Base:

Ceramic

Usage:

Electronic Components ,Printing，Furniture,Decorative Materials And Other Industries Curing

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

3000W Ultraviolet Mercury Lamp

700V Ultraviolet Mercury Lamp

Product Description

700V 3000W Ultraviolet Mercury Lamp For Offset Printing Machine

Product Specifications

Attribute	Value
Type	Mercury lamp
Lifetime	800-1000h
Total length	360mm
Power	3Kw
Head Base	Ceramic
Usage	Electronic components, Printing, Furniture, Decorative materials and other industries curing

Product Overview

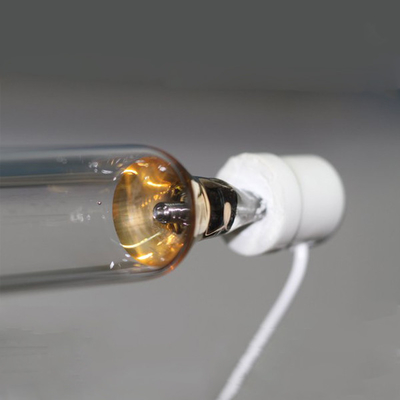

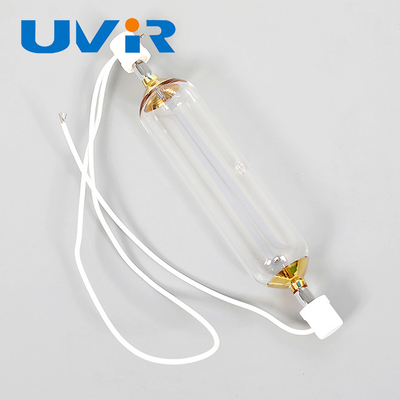

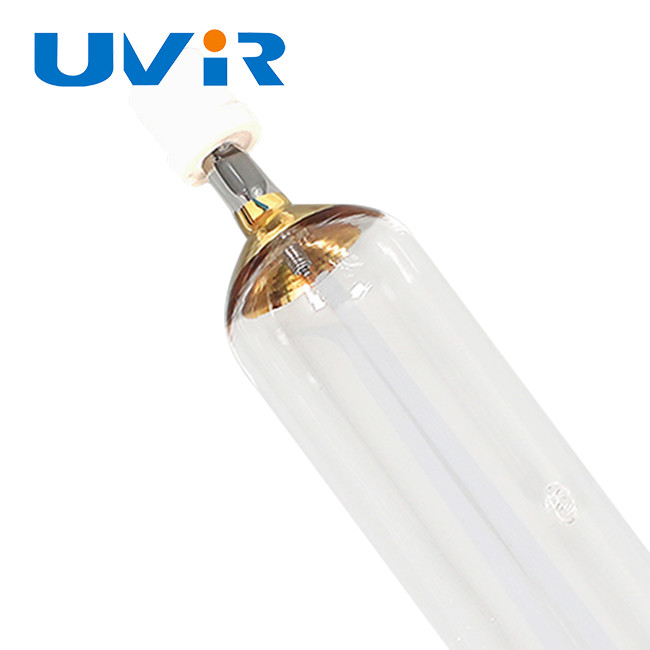

New Arrival Ultraviolet Mercury Quartz 700V 3000W UV Curing Lamp

This high-performance UV curing lamp is designed for offset printing machines, offering efficient curing with 3000W power output and 700V operating voltage.

UV Curing Industry Applications

Since its introduction in the 1960s, UV curing has become a multi-billion dollar industry worldwide, currently accounting for about 4% of the industrial coatings market. The technology grows by more than 10% annually, replacing traditional thermal curing processes with increased productivity, improved product quality, and environmental benefits.

Key Advantages of UV Curing

Significantly improved physical properties of inks, coatings and adhesives
Faster production speeds and increased capacity
Reduced work-in-progress inventory
Minimized setup and cleanup labor
Environmentally friendly - energy efficient with no emissions
Increased production yield with reduced waste

Technical Parameters

Parameter	Value
Power output	6KW
Wavelength	365nm
Arc length	640mm
Material	High Quality Quartz Tube
End caps	Ceramic / metal
Service life	800 to 1000 hours

The lamp can be customized according to specific requirements.

Product Details

Additional Model Specifications

Model No.	Power (KW)	Voltage (V)	Current (A)	Total Length (mm)	Arc length (mm)	Tube Φ (mm)	Lamp Base	Wave Peak
XUV 005004 FC	0.4	90	5	115	50	17	FC	365nm
XUV 020010 BC	1	135	8	335	200	22	BC	365nm
XUV 025020 AC	2	300	7.5	400	250	22.5	AC	365nm
XUV 025030 AC	3	700	5	360	250	25	AC	365nm
XUV 025040 DC	4	320	14	330	250	25	DC	365nm
XUV 070056 BC	5.6	950	7.2	825	700	25	BC	365nm
XUV 050060 AC	6	850	7.8	640	500	22.5	AC	365nm
XUV 065070 HC	7	928	7.4	780	653	22.5	HC	365nm
XUV 100080 BC	8	850	9	1172	1028	22.5	BC	365nm
XUV 124096 AC	9.6	1500	8	1387	1247	25	AC	365nm
XUV 112100 AC	10	1500	7.2	1260	1120	23	AC	365nm
XUV 130120 AC	12	1800	7.5	1440	1300	25	AC	365nm
XUV 120144 AA	14	2300	6.3	1328	1200	26	AA	365nm
XUV 077150 AH	15	1250	12	870	770	25	AH	365nm
XUV 107160 AC	16	2000	8	1185	1070	28	AC	365nm
XUV 150180 BC	18	1730	10.6	1600	1500	25	BC	365nm
XUV 105199 DC	19.9	660	30	1145	1055	27	DC	365nm
XUV 143200 AC	22	2000	11	1430	1530	28	AC	365nm

Primary Applications

UV Printing: Offset plate, letterpress, flexo, inkjet, glue, hot melting, and inseparable linked printing
UV Painting: For CDs, electronic components (PCBs, resistors), film coating, photo conductors, wood, plastic, and 3D objects
UV Disinfection: Sterilization of food packaging materials, air, and packaging films
UV Adhesion: For DVDs, electronic components, display screens, sensors, glass, jewelry, furniture, and medical devices
UV Embedment: Curing in glass industry, electronic components, medical technology, optical products, and stone manufacturing

Frequently Asked Questions

Q1: Are you factory or trading company?

A: We are trading company with factory.

Q2: Can I have a sample first before bulk order?

A: Yes. We offer you free sample to test the quality, you only undertake the freight.

Q3: What's your delivery date?

A: 5-7 working days for samples and 15-25 days for bulk order.

Q4: What's your shipping ways?

A: 1. By Express: TNT, DHL, FedEX, UPS, EMS, etc... Door to door
2. By Air: Please let us know your airport.
3. By Sea: Please let us know your delivery port.

Q5: What's your MOQ?

A: Our MOQ is 10pcs. First order as samples can be less than 10 pcs.

Q6: Are the products safe enough?

A: Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations.
