3.5KW UV Metal Halide Curing Lamp 417nm for Printing

3.5KW UV Metal Halide Curing Lamp 417nm for Printing

Brand Name:	UVIR
Model Number:	XUV 01 6050 ACG FS
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Total Length:

420mm

Arc Length:

290

Type:

Mercury Lamp

Wave Peak:

417nm

Place Of Origin:

Guangdong, China

Head Base:

Ceramic

Voltage:

220V

Application:

Light Curing, UV Printing,UV Drying

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

3.5KW UV metal halide lamp

UV curing lamp for printing

high-power UV curing system

Product Description

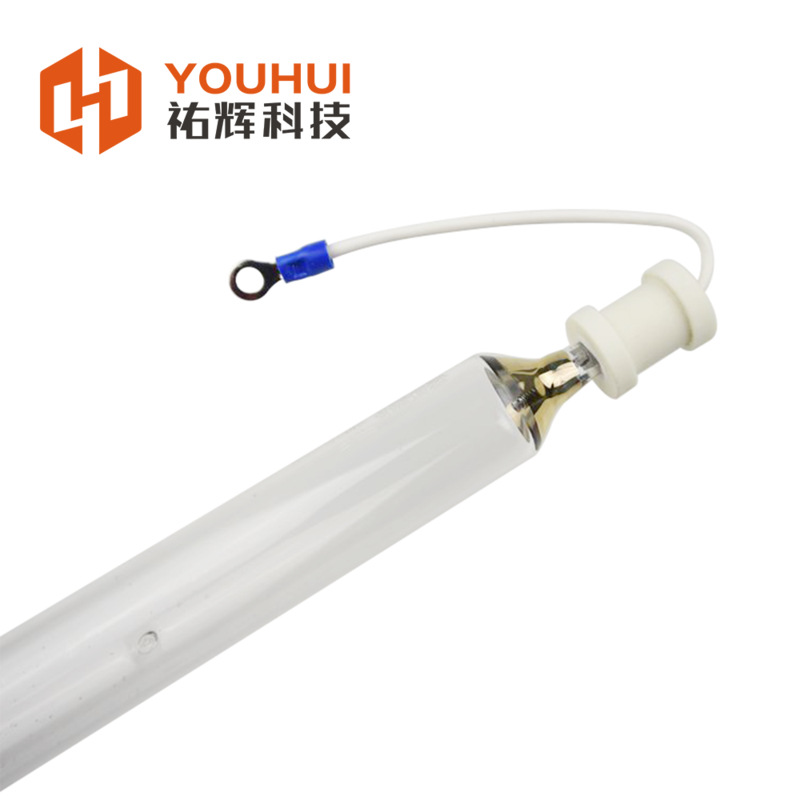

3.5KW UV Metal Halide Curing Lamp for Printing Machines

Product Specifications

Total Length	420mm
Arc length	290mm
Type	Mercury lamp
Wave Peak	417nm
Place of Origin	Guangdong, China
Head Base	Ceramic
Voltage	220V
Application	Light curing, UV printing, UV drying

Product Description

UV curing lamp, metal halogen curing lamp, exposure lamp for printing machine

Iodine Gallium Lamp Introduction

Iodine gallium lamp, or plate burning lamp, also known as exposure lamp, is a kind of metal halide lamp, divided into two types: fast and slow starting. It produces strong emission lines within the wavelength of 350nm-450nm, with peak value reaching 417nm. Widely used in PS plate burning, film, resin plate exposure, lithography and other photochemical fields.

Key Features

Multiple specifications with power ranging from 0.5KW to 8KW
Accurate spectral peak values and fast start up
Certified by relevant regulators
Short plate burning time with high efficiency
Protects plate making and photographic quality

Lamp Parameters

Power output	3.5KW
Wavelength	417nm
Arc length	290mm
Material	High Quality Quartz Tube
End caps	Ceramic / metal
Service life	800 to 1000 hours

Professional Curing Solutions

Our professional team can customize UVA-UVB-UVC-UVV spectrum solutions. We provide technical support and overall design services for painting, coating, glue, paint ink, UV curing, air purification, water treatment, and UV photochemical reactions.

Additional Specifications

Model No.	Watt (W)	Voltage (V)	Current (A)	Total length (mm)	Arc length (mm)	Tube φ (mm)	Base	Wave Peak (nm)
XUV 011020 HCG FS	2	380	5.2	175	110	22.5	HC	417
XUV 014010 ACG FS	1	160	6.2	260	140	22.5	AC	417
XUV 024020 ACG FS	2	135	15	360	240	20	AC	417
XUV 014020 ACG FS	2	160	12.5	260	140	22.5	AC	417
XUV 014020 ACG FS	2	260	7.7	260	140	22.5	AC	417
XUV 014030 ACG FS	3	220	14	260	140	25	AC	417
XUV 029035 ACG FS	3.5	220	22	420	290	15	AC	417
XUV 030036 ACG FS	3.6	220	22	420	300	20	AC	417
XUV 021040 BCG FS	4	450	9	280	210	23	BC	417
XUV 016050 ACG FS	5	380	13	285	160	28	AC	417
XUV 023060 BCG FS	6	500	12	350	230	26	BC	417
XUV 127100 BCG FS	10	1570	7	1425	1270	23	BC	417

Contact us if these parameters don't meet your requirements. Our professional team can provide customized solutions and technical drawings.

Application Areas

UV ink, UV glue, UV painting, UV coating
Paper glazing and printing circuit boards
Decoration and wooden floor manufacturing
Flexible packaging and color printing
Electronics, glass, and furniture industries

After-Sales Service

Package tracking
One year guarantee
Technical support
Discount for reorder
Replacements for quality problems
Confidentiality of customer information
