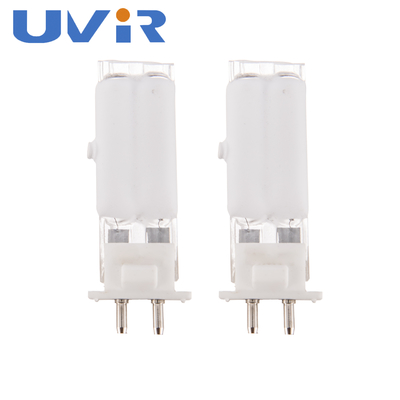

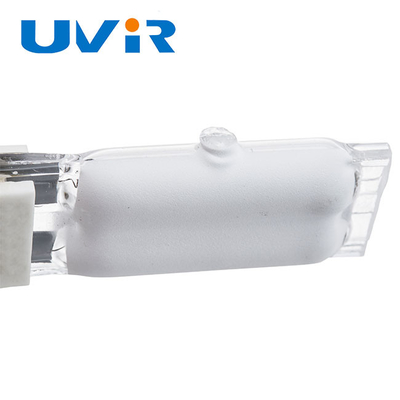

250W 115V White Coating Twin Tube Short Wave Infrared Lamp

250W 115V White Coating Twin Tube Short Wave Infrared Lamp

Brand Name:	UVIR
Model Number:	THW100006
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Tube Name:

High Purity Quartz Glass

Material:

Tungsten Material

Figure:

Straight Jeans

Heating Time:

Coating:

White

Power:

250W

Voltage:

115V

Place Of Origin:

Guangdong, China

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Twin Tube Infrared Lamps 250W

Twin Tube Infrared Lamps 115V

White Coating short wave infrared lamp

Product Description

Straight White Coating Twin Tube Infrared Lamps Short Wave 250W 115V

Product Specifications

Attribute	Value
Tube Name	High Purity Quartz Glass
Material	Tungsten Material
Figure	Straight Jeans
Heating time	2s
Coating	White
Power	250W
Voltage	115V
Place of Origin	Guangdong, China

Straight White Coating Twin Tube Short Wave Halogen Infrared Heating Lamp

Industrial Applications

Solar PV industry for preheating, soldering, and heating processes in stringers, furnaces, ovens, and PECVD equipment
PET preform heating in stretch blow moulding machines
Powder coating curing
Resins hardening and rubber coating drying
Adhesives end polymerization
Food pasteurization and sterilization
Paper industry humidity control
Industrial drying of paint, varnishes, and dyeing
Semi conductor industries for wafer heating
Printing ink drying in screen and offset machines
Plastic welding
Drying of water-repellent coating on fabric
Textile embossing and laminating

Technical Parameters

Power	250W
Voltage	115V
Material	Quartz
Head Base	Ceramic White

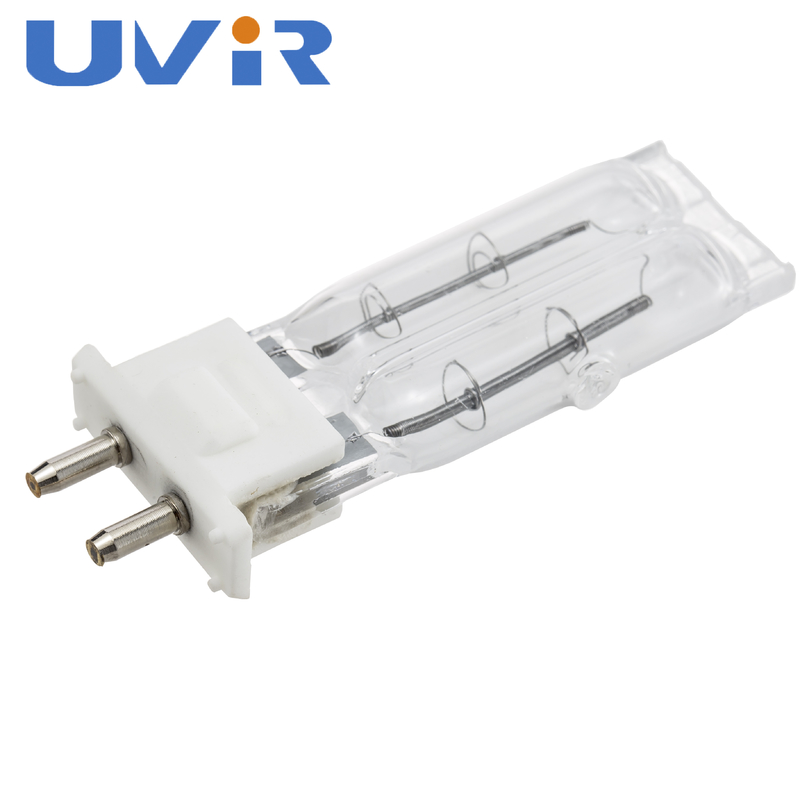

Twin Tube Infrared Lamp Components

Fused silica
Tungsten heating elements
Supports for heating wire
End plate and ceramic end
Wire leads
Reflective layer (gold layer shown)
Proprietary gas composition

Product Details

Stock and Standard Twin Tube Short-Wave Spotty Lamps

Voltage	Power	THG	THW	THC	Code
115	200	THG100145	THW100005	THC100005
115	250	THG100146	THW100006	THC100006
115	450	THG100147	THW100007	THC100007	80045902
220	200	THG100148	THW100008	THC100008
220	300	THG100149	THW100009	THC100009
220	450	THG100150	THW100010	THC100010

If these parameters don't match your requirements, please contact us. Our professional team can provide technical knowledge and custom drawings.

Quality Assurance

Our infrared heater lamps meet CE and ROHS standards with strict quality control to ensure each IR lamp performs perfectly.

Customization Services

We customize infrared heater lamps according to your specific requirements. Our professional technicians provide one-to-one service and can produce a single IR lamp for quality testing.

We offer OEM services and can print your logo on infrared heating lamps as requested.

Warranty & Support

Short wave infrared heat lamp warranty: 5,000 hours

During warranty period, any non-manufacturing defects will be replaced immediately at no charge.

Frequently Asked Questions

How to place an order?

Provide your required lamp specifications (type, diameter, length, power, voltage, reflector). We'll send a quotation. After payment, production begins and completed lamps will be shipped to you.

Why use a reflector?

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase effectiveness. Coated emitters convert nearly all electrical power to heat. For high watt density or temperatures above 800°C, we recommend ceramic coating (resistant to 1000°C). We offer 180° (half-tube) coating or custom degrees.

Do you supply mounting clamps?

Yes, we provide mounting clamps free with purchased lamps in corresponding quantities.

Can you produce custom designs?

Send us drawings, sketches, or samples for a quote. We specialize in small runs and custom designs, while remaining competitive on large orders.
