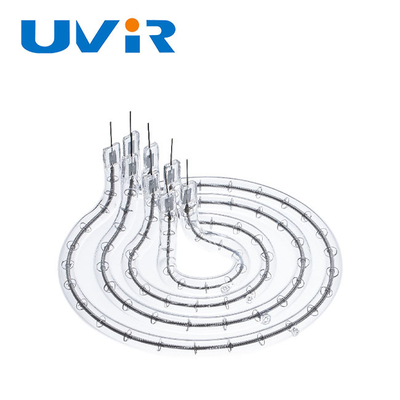

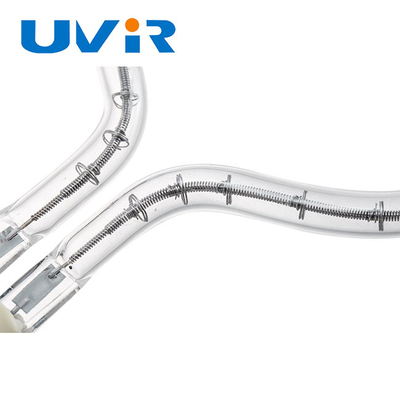

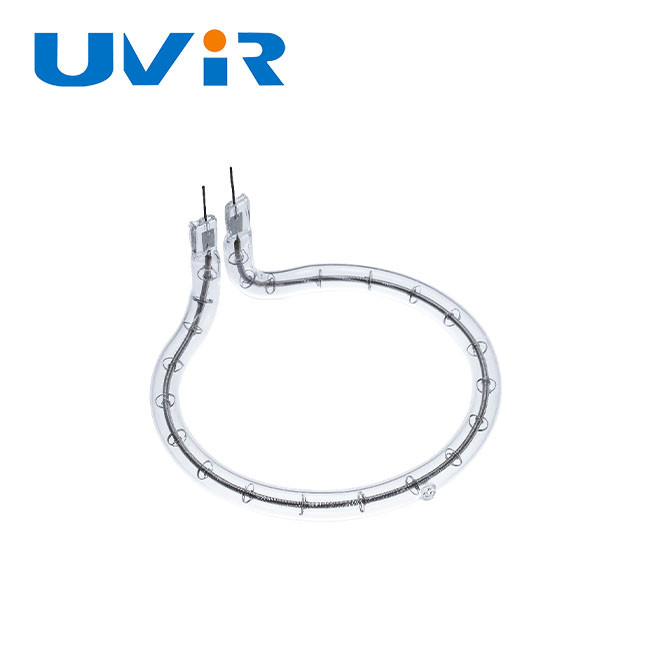

240V 1000W Halogen Quartz Ring Infrared Heater Lamp

240V 1000W Halogen Quartz Ring Infrared Heater Lamp

Brand Name:	UVIR
Model Number:	RHC800029
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Heating Element:

Halogen Quartz

Name:

Heating Lamps

Power:

1000W

Application:

Heater, Car Painting, Printing, Etc.

Wave Length:

Short Wave

Standard Packing:

Industrial Card / Single White Box

Voltage:

240V

Tube Diameter:

8mm

IR Diameter:

65mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

PET Machine Ring Infrared Lamps

480V Ring Infrared Lamps

6000W Halogen Heater Rod

Product Description

Quartz Tube Ring Infrared Lamps, 240V 1000W Halogen Heater Rod

Product Specifications

Attribute	Value
Heating Element	Halogen Quartz
Name	Heating Lamps
Power	1000W
Application	Heater, Car Painting, Printing, etc.
Wave Length	Short Wave
Standard Packing	Industrial card / Single white Box
Voltage	240V
Tube diameter	8mm
IR diameter	65mm

Main Design Characteristics

Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, Medium and Long-Wave IR designs
Availability in various tube colors
The tube diameter can be from 8 - 14 mm
Standard stock items for immediate delivery
Custom and OEM designs are available

Technical Details

Filament	Halogen
Coating	Without Coating
Tube diameter	8mm
Voltage	240V
Power	1000W
Certification	CE, ROHS
IR Diameter	65mm
Life Time	5000 Hours

Standard Specifications

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

If the parameter is not suitable for you, please contact us. We have a professional team that will provide technical knowledge and drawings for your specific requirements.

Why Use Reflector Coating

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For emitters with high watt density or surface temperature above 800°C, we recommend ceramic coating as reflector because its temperature resistance is up to 1000°C. In addition to 180° (half-tube) coating, we also provide customer specified degrees.

Selected Infrared Heating Applications

Plastic forming
Bottle blowing
Paint drying
Food catering/processing
Pre-heating of PET perform
Fusing printing ink
Drying process in paper mill
Plastics thermoforming
Silicon wafer manufacturing process in Semiconductor
Various kind of drying processes

Frequently Asked Questions

1. Have an unusual design?

Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

2. Could you provide sample for performance testing and appearance checking?

Yes, we can provide the sample based on your required specs.

3. Can I have samples? Is it free?

Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will confirm with you whether it's free sample or not.

4. Where is your factory? Can I visit your factory?

We're in city Changzhou, middle of China. It's 1 hour by train from Shanghai, 2 hours by plane from Guangzhou. You are warmly welcome to our factory, we will be happy to show you our production, QC, warehouse, etc.
