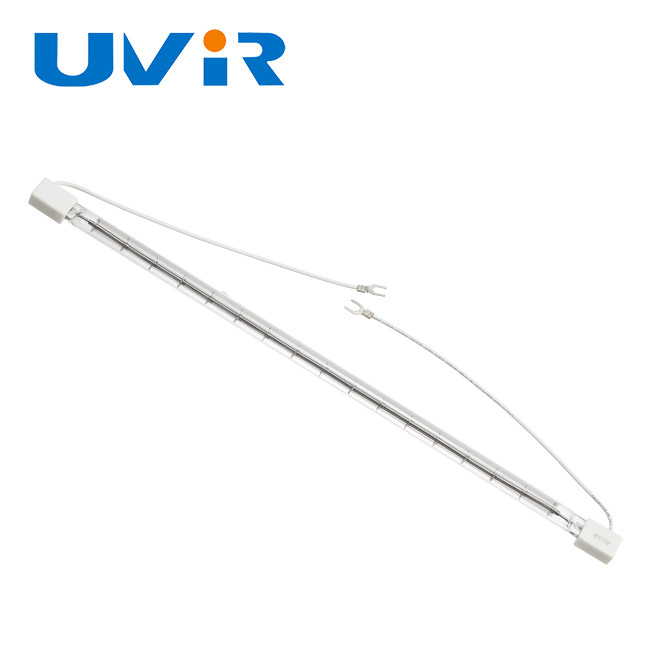

235V 2000W Infrared Halogen Heating Lamp SK18 Base

235V 2000W Infrared Halogen Heating Lamp SK18 Base

Brand Name: UVIR
Model Number: SHW100018-8
MOQ: 10
Price: Negotiable
Detail Information
Place of Origin:
China
Certification:
CE
Keywords:
Infrared Lamp Heater
Type:
Single Tube
Wavelength:
1-2μm
Work Time:
5000h
Color:
White
Material:
Quartz Tube/tungsten Wire
Heating Length:
270mm
Total Length:
355mm
Tube Diameter:
10.5mm
Voltage:
235V
Watts:
2000W
Base Type:
SK18
Packaging Details:
Each lamp in a cylinder .Then in a professional plywood box.
Highlight:

drying IR Halogen Lamps

,

Quartz Heating Lamp 235V

,

IR Halogen Lamps 2000W

Product Description
Paint Drying IR Halogen Lamps, Quartz Heating Lamp 235V 2000W
Product Specifications
Attribute Value
Type Single tube
Wavelength 1-2μm
Work time 5000h
Material Quartz tube/tungsten wire
Heating length 270mm
Total length 355mm
Tube diameter 10.5mm
Voltage 235V
Watts 2000W
Base type SK18
Key Advantages
  • Premium materials: Manufactured from imported high-end quartz tube
  • Extended lifespan: 5000 hours operation time
  • High efficiency: Over 85% heat efficiency at full power
  • Energy-saving design: Gold or non-organic reflective layer concentrates radiation energy
  • Clean heating: No surface corrosion or contamination
  • Precise control: Adjustable heating time as needed
  • Environmentally friendly: No odor or contamination risk
  • Customizable: Adjustable wavelength, dimensions, and filaments
  • Energy efficient: Lower consumption with superior heating results
Technical Details
  • Product Name: Infrared heating lamp
  • Material: Quartz tube and tungsten wire
  • Voltage: 235V
  • Wattage: 2000W
  • Base: SK18
  • Warranty: 5000 hours
  • Reflector: Ceramic white
  • Customization: Available for voltage, wattage, length, base, and cables

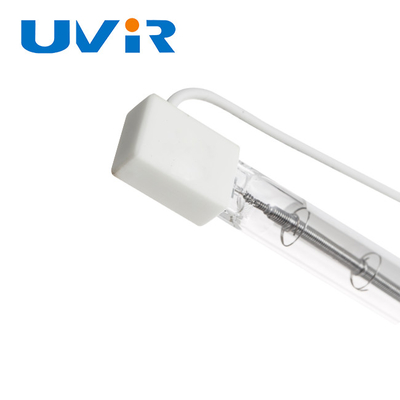

Product Images
235V 2000W Infrared Halogen Heating Lamp SK18 Base 0 235V 2000W Infrared Halogen Heating Lamp SK18 Base 1 235V 2000W Infrared Halogen Heating Lamp SK18 Base 2
Industrial Applications
Plastics Processing
  • Drying coatings on plastics
  • Stretching or shrinking plastics
  • Plastic packaging
  • Blow moulding of PET bottles
Photovoltaic Industry
  • String soldering
  • Preheating for sputtering processes
Printing Industry
  • Curing ink on cloth
  • Drying for inkjet-based CTP plates
  • Drying printing products (banners machine)
Food and Chemical Industry
  • Disinfection of tableware
  • Heating of chicken and vegetables
  • Processing natural herbal medicine
  • Removing snow and ice
Additional Applications
  • Glass industry: preheating, coating drying, laminated glass production
  • Textiles: coating drying, fabric laminating
  • Electronics: component coating, aging processes
  • Floor, metal, paper, packaging, powder, rubber, wood, semiconductors
Custom solutions available for specific industrial requirements. Contact us for specialized applications.
Manufacturing Capabilities

Our facility specializes in production and wholesale of:

  • Ultraviolet lamps
  • Infrared lamps
  • Ultraviolet germicidal lamps
  • Xenon lamps
  • Special light sources and accessories
  • Lamp stands and transformers

Custom configurations available to meet specific customer requirements.
