235V 1000W SK17 White Coating Quartz Infrared Heating Lamp

Name

235V 1000W SK17 White Coating Quartz Infrared Heating Lamp

Brand Name:	UVIR
Model Number:	SHW100066
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Reflector:

White

Voltage:

235V

Warranty(Year):

1-Year

Tube Diameters:

10mm

Material:

Quartz Tube/tungsten Wire

Application:

Infrared Heater, Painting Drying

Working Time:

5000h

Power:

1000W

Total Length:

350mm

Heating Length:

280mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

Quartz Infrared Lamp 384V

,

Quartz Infrared Lamp 3200W

Product Description

Semi Plated White Coating Quartz Infrared Lamp 235V 1000W SK17

Product Specifications

Attribute	Value
Reflector	White
Voltage	235V
Warranty	1-Year
Tube diameters	10mm
Material	Quartz tube/tungsten wire
Application	Infrared heater, Painting drying
Working Time	5000h
Power	1000W
Total length	350mm
Heating length	280mm

235V 1000W SK17 Single Tube Shortwave White Coating Infrared Heated Lamp

Benefits of IR Heat Lamp

Infrared radiators are superior to traditional hot air, ceramic, gas, and metal radiators. They feature:

No contact or intermediate conversion medium required
Rapid energy release for precise heating control
Energy savings up to 50% compared to conventional methods

Product Details

Product Name	Short wave heating lamp
Material	Quartz tube and tungsten wire
Voltage	235V
Wattage	1000W
Base	SK17
Warranty	5000 hours
Reflector	White
Customization	Available for voltage, wattage, length, base, cables, and burning position

High-quality transparent quartz tube material increases infrared radiation density.

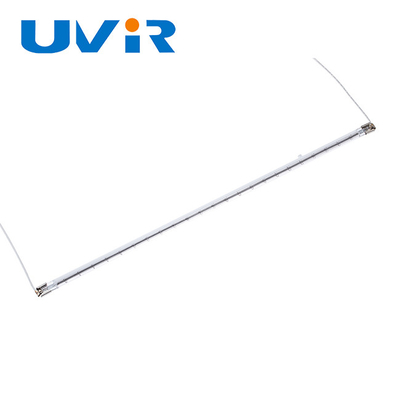

235V 1000W SK17 White Coating Quartz Infrared Heating Lamp 0

Premium Coating Technology

The semi-plated white coating uses quartz powder technology to reflect over 90% of infrared heat in one direction, minimizing energy loss.

Applications

Plastics Processing: IR drying, stretching, blow molding of PET bottles
Photovoltaic Industry: String soldering, sputtering preheating
Printing Industry: Ink curing, drying for printing products
Food & Chemical Industry: Disinfection, food heating, snow removal
Glass Industry: Preheating, coating drying, laminated glass
Textiles Industry: Fabric coating drying, laminating
Electronic Industry: Component coating, aging processes

Also suitable for flooring, metal, paper, packaging, rubber, wood, semiconductors and more. Contact us for custom requirements.

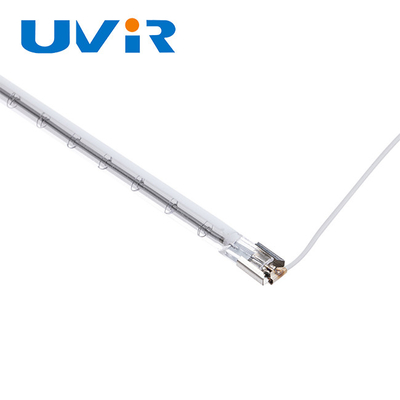

235V 1000W SK17 White Coating Quartz Infrared Heating Lamp 1

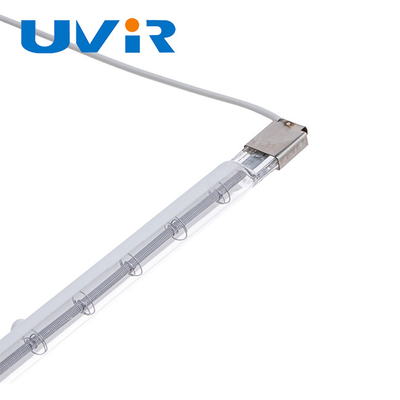

235V 1000W SK17 White Coating Quartz Infrared Heating Lamp 2

After Sales Service

Package tracking
Technical support
24-hour service
Reorder discounts
Quality problem replacements
Customer information confidentiality
