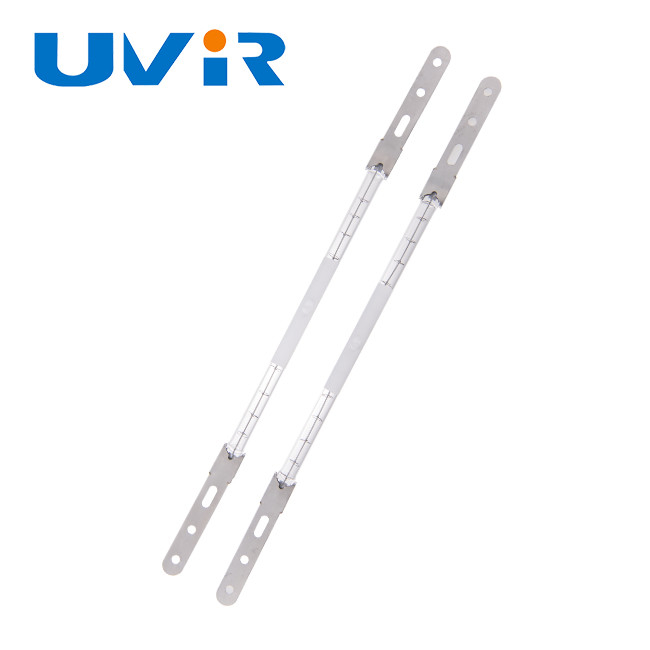

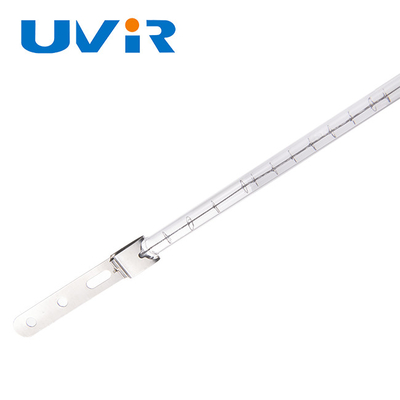

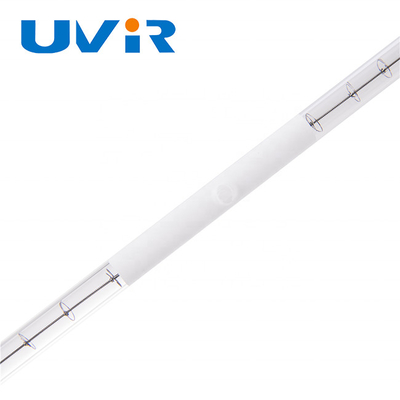

235V 1000W Short Wave IR Halogen Lamp for Heating and Drying

235V 1000W Short Wave IR Halogen Lamp for Heating and Drying

Brand Name:	UVIR
Model Number:	SHW100065
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Item:

Short Wave Single IR Lamp

Lamp Base:

Power:

1000W

Total Length:

370mm

Tube Diameters:

10mm

Heating Length:

280mm

Worktime:

5000h

Wavelength:

1-2μm

Application:

Infrared Heater, Painting Drying

Voltage:

235V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

230V IR Halogen Lamps

5000h IR Halogen Lamps

3000W Short Wave Infrared Heat Lamp

Product Description

235V 1000W IR Halogen Lamps, 5000h Short Wave Infrared Heat Lamp

Product Specifications

Attribute	Value
Item	Short wave Single IR Lamp
Lamp Base	X
Power	1000W
Total length	370mm
Tube diameters	10mm
Heating length	280mm
Worktime	5000h
Wavelength	1-2μm
Application	Infrared heater, Painting drying
Voltage	235V

Product Description

235V 1000W X Single tube short wave IR infrared lamp halogen bulb designed for PET Blowing machines and various industrial heating applications.

Infrared Lamp Applications

Heater: Space heater, Sauna, Electric hot table, Incubating, Brooders, Farm green house
Automotive: Primer/Color/Powder coat, Seat de-wrinkling, Head liner forming
Plastics: Welding, Forming, Softening, Curing, Drying
Printing: Ink drying, Silk Screening, Bindings, Glue drying
Food: Baking, Browning, Dehydrating, Pasteurizing
Textiles: Web Drying, Finishing, Pre-shrinking
Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit

Technical Parameters

Product name	Single tube shortwave IR Lamp
Filament	Tungstan
Voltage(V)	235V
Wattage(W)	1000W
Base type	X
Tube material	Quartz tube/tungsten wire
Reflector	White
OEM/ODM	Custom voltage, wattage, length, base, cables available

High Temperature Heating with Long Life

Tungsten wire heats the gas in the quartz tube under AC voltage, producing efficient infrared radiation. Features high thermal efficiency, rapid heating, power saving, and extended lifespan up to 5000 hours.

Infrared radiators outperform traditional heating methods with direct energy transfer, no contact requirements, and up to 50% energy savings compared to hot air, ceramic, or gas heating systems.

Custom parameters available - Contact us for specialized configurations and technical drawings.

Our Company

We specialize in manufacturing and wholesale of ultraviolet lamps, infrared lamps, germicidal lamps, xenon lamps, and related accessories. Custom solutions available to meet specific requirements.

After Sales Service

Package tracking
Technical support
24 hours working time
Discount for reorder
Replacements for quality problems
Confidentiality of customer information
