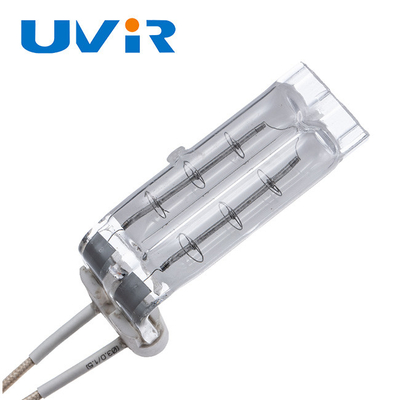

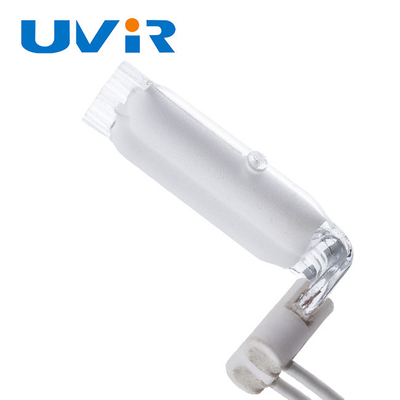

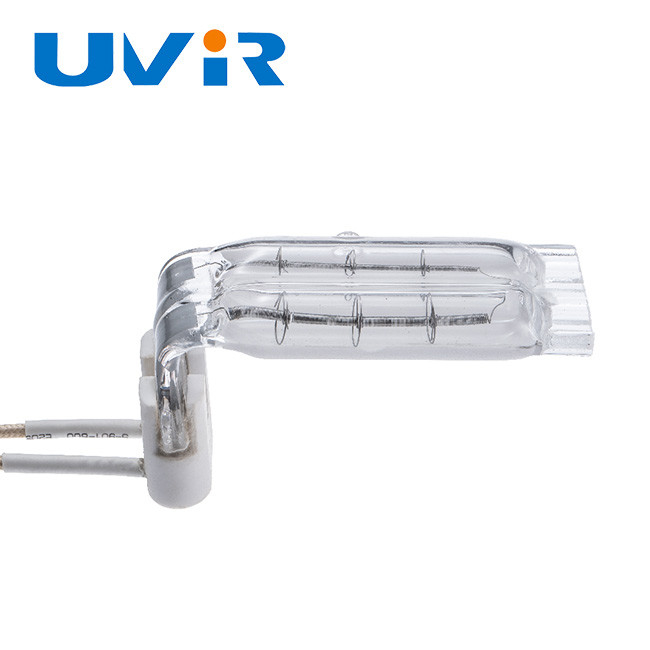

230V 2800W White Infrared Heating Element Tube

230V 2800W White Infrared Heating Element Tube

Brand Name:	UVIR
Model Number:	THW300002
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Product Name::

3D Contoured Infrared Lamp

Voltage::

230V

Lifespan (hours)::

10000-20000h

Color::

White

Material::

Glass, Tungsten (filament) Quartz (Tube)

Power::

2800W

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

While Reflector Infrared Heating Element Tube

Infrared Heating Element Tube L Type

Product Description

3D Contoured Infrared Lamp - 400V 3150W L Type Shortwave Infrared Heating Parts

Product Specifications

Attribute	Value
Product Name	3D Contoured Infrared Lamp
Voltage	230V
Lifespan	10,000-20,000 hours
Color	White
Material	Glass, Tungsten (filament), Quartz (Tube)
Power	2800W

Key Advantages

Superior to traditional hot air, ceramic, gas, and metal radiators
Direct energy transfer with no contact or intermediate conversion medium
Rapid heating capability for precise temperature control
Energy savings up to 50% compared to conventional heating methods

Technical Parameters

UVIR No.	THW300002
Voltage	230V
Wattage	2800W
Material	Quartz Tube
Light Source	Tungsten filament
Reflector	White

Available Configurations

115	410	10		SHG300169	SHW300001	SHC300002	280770
115	510	10		SHG300049	SHW300002	SHC300003	284343
115	520	10		SHG300043	SHW300003	SHC300004	282094
115	600	10		SHG300050	SHW300004	SHC300005	282016
115	710	10		SHG300164	SHW300005	SHC300006	282014
115	1100	10		SHG300165	SHW300006	SHC300007	283932
115	1100		11x23	THG300039	THW300001	THC100001	282002
115	1320	10		SHG300037	SHW300007	SHC300008	280773
120	1330	10		SHG300166	SHW300008	SHC300009	284058
120	1450	10		SHG300170	SHW300009	SHC300010	305417
120	1630	10		SHG300035	SHW300010	SHC300011	305418
230	2000	10		SHG300167	SHW300011	SHC300012	314255
230	2200	10		SHG300045	SHW300012	SHC300013	282009
230	2200	10		SHG300046	SHW300013	SHC300014	282008
230	2290	14		SHG300171	SHW300014	SHC300015	297058
230	2800		11x23	THG300038	THW300002	THC300002	281997
240	800	10		SHG300052	SHW300015	SHC300016	283640
240	810	10		SHG300168	SHW300016	SHC300017	280728
240	800	10		SHG300042	SHW300017	SHC300018	292093
240	880	10		SHG300056	SHW300018	SHC300019	280727

Applications

Industrial heating processes
Material curing applications
Food processing equipment
Plastic welding systems
Printing and drying systems

After-Sales Support

Package tracking for all shipments
Comprehensive technical support
24-hour customer service availability
Discounts for repeat orders
Quality problem replacements
Strict confidentiality of customer information

Frequently Asked Questions

What information should I provide when inquiring?

Please provide: lamp type, total length, heating length, wattage, voltage, ceramic end connection specifications, lead length in mm (standard is 300mm), and preferred coating (gold or ceramic). Providing drawings or pictures is highly recommended.

Could you provide samples for performance testing?

Yes, we can provide samples based on your required specifications for performance evaluation and appearance verification.

Payment Methods

We accept T/T (bank transfer), Escrow, and Western Union payments.

Order Process

We typically provide our best price within 24 hours of receiving your inquiry. Sample production usually takes 5-7 days.
