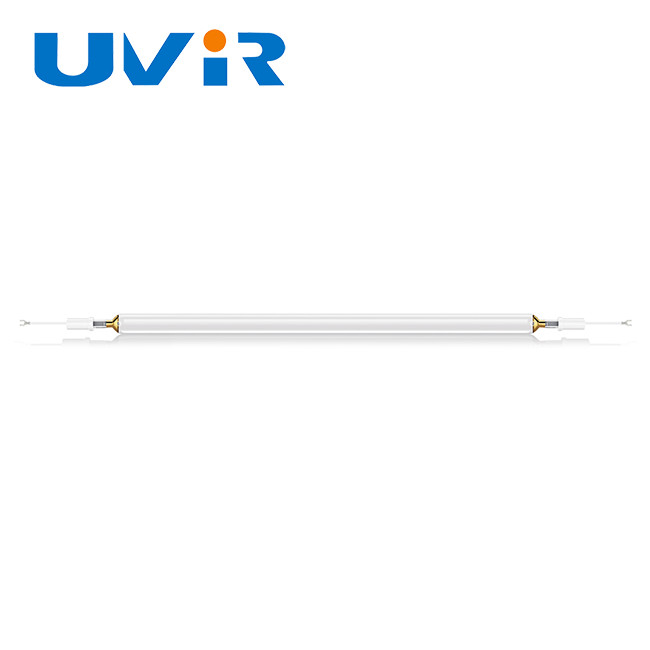

2300V 14kw Metal Halide UV Curing Lamp for Electronic Coating

2300V 14kw Metal Halide UV Curing Lamp for Electronic Coating

Brand Name:	UVIR
Model Number:	XUV 120144AA
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Base:

Current:

6.3

Application:

Light Curing, UV Printing,UV Drying

Power:

14kw

Voltage:

2300

Type:

Metal Halide Lamp

Place Of Origin:

Guangdong, China

Material:

High Quality Quartz Tube

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

14kw UV Curing Lamp

2300V UV Curing Lamp

Product Description

2300V 14kw UV Curing Lamp Quartz Tube For Electronic Product Coating

Product Specifications

Attribute	Value
Base	AA
Current	6.3
Application	Light curing, UV printing, UV drying
Power	14kw
Voltage	2300
Type	Metal halide lamp
Place of Origin	Guangdong, China
Material	High Quality Quartz Tube

Product Description

2300V 14kw Metal halide lamp UV curing lamp for electronic product coating

About Metal Halide Lamp

Metal Halide - By adding other elements/additives such as iron, lead, gallium, indium, etc. to the lamp tube, we can make a range of metal halide lamps. These additives alter the wavelength composition of the UV output of the lamp, making it suitable for deep UV curing of ultra-thick coatings. According to this characteristic, our metal halide lamps are widely used in PCB, wood-based coating, electronic product coating, optical fiber manufacturing, etc.

Lamp Parameters

Parameter	Value
Power output	14KW
Wavelength	365nm
Arc length	1200mm
Material	High Quality Quartz Tube
End caps	Ceramic / metal
Service life	800 to 1000 hours

Product Details

Technical Specifications

Model No.	Power (KW)	Voltage (V)	Current (A)	Total Length (mm)	Arc Length (mm)	Tube Φ (mm)	Lamp Base	Wave Peak
XUV 005004 FC	0.4	90	5	115	50	17	FC	365nm
XUV 020010 BC	1	135	8	335	200	22	BC	365nm
XUV 025020 AC	2	300	7.5	400	250	22.5	AC	365nm
XUV 025030 AC	3	700	5	360	250	25	AC	365nm
XUV 025040 DC	4	320	14	330	250	25	DC	365nm
XUV 070056 BC	5.6	950	7.2	825	700	25	BC	365nm
XUV 050060 AC	6	850	7.8	640	500	22.5	AC	365nm
XUV 065070 HC	7	928	7.4	780	653	22.5	HC	365nm
XUV 100080 BC	8	850	9	1172	1028	22.5	BC	365nm
XUV 124096 AC	9.6	1500	8	1387	1247	25	AC	365nm
XUV 112100 AC	10	1500	7.2	1260	1120	23	AC	365nm
XUV 130120 AC	12	1800	7.5	1440	1300	25	AC	365nm
XUV 120144 AA	14	2300	6.3	1328	1200	26	AA	365nm
XUV 077150 AH	15	1250	12	870	770	25	AH	365nm
XUV 107160 AC	16	2000	8	1185	1070	28	AC	365nm
XUV 150180 BC	18	1730	10.6	1600	1500	25	BC	365nm
XUV 105199 DC	19.9	660	30	1145	1055	27	DC	365nm
XUV 143200 AC	22	2000	11	1430	1530	28	AC	365nm

If the parameter is not suitable for you, please contact us. We have a professional team that will provide technical knowledge and drawings for your specific requirements.

Frequently Asked Questions

Q1. Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 5-7 days, about 30 days for mass production.

Q3. Do you have any MOQ limit?

A: Usually MOQ is 100pcs for each model.

Q4. How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT for samples. Airline and sea shipping for large quantities.

Q5. How to proceed an order?

Let us know your requirements or application
We quote according to your requirements
Customer confirms the samples and places deposit for formal order
We arrange the production

Q6: How to deal with the faulty?

A: Our products are produced under strict quality control. During the guarantee period, we will send replacements in your next order.
