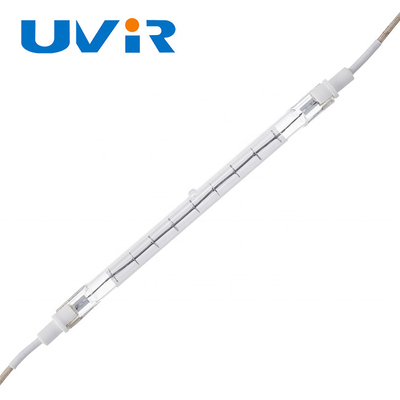

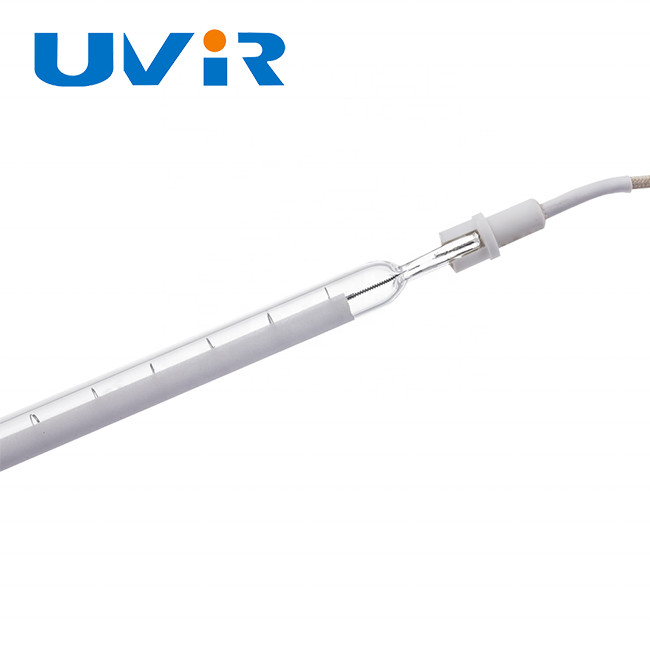

2000W Quartz Infrared Heating Lamp 220V 5000h Life

2000W Quartz Infrared Heating Lamp 220V 5000h Life

Brand Name:	UVIR
Model Number:	SHW100325
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Usage:

Heating

Warranty(Year):

1-Year

Wavelength:

1-2μm

Filament Type:

Tungsten

Tube Material:

Tungsten(filament),quarz(tube)

Filament Temperature:

1100-2600°C

Working Time:

5000h

Power:

2000W

Voltage:

220V

Total Length:

500mm

Heating Length:

430mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

2500W Quartz Infrared Lamps

RS Quartz Infrared Lamps

5000 Hours Halogen Heater Lamp

Product Description

RS 2500W Quartz Infrared Lamps, 5000 Hours Halogen Heater Lamp

Product Specifications

Attribute	Value
Usage	Heating
Warranty	1-Year
Wavelength	1-2μm
Filament type	Tungsten
Tube Material	Tungsten (filament), Quartz (tube)
Filament temperature	1100-2600°C
Working time	5000h
Power	2000W
Voltage	220V
Total length	500mm
Heating length	430mm

Short Wave IR Halogen Lamp Quartz Heating Emitters

High-performance infrared curing lamp with exceptional durability and heating efficiency.

Key Features

Carbon Fiber Heat Lamp: High-quality imported carbon fiber filament with smooth finish and maximum longevity
Quartz Glass Tube: High-temperature resistant quartz glass with 5000+ hour service life
Environmentally friendly - no toxic emissions or contamination risks
Customizable voltage, wattage, length, and base configurations available
Universal burning position for flexible installation

Product Details

Product Name	Short wave IR halogen lamp
Tube Material	Quartz tube and tungsten wire
Voltage	220V (customizable)
Wattage	2000W (customizable)
Base	RS
Warranty	5000 hours
Reflector	White

Standard Single Tube Construction

Additional standard end terminations available upon request

Infrared Heater Applications

Plastics Processing: IR drying of coatings, stretching/shrinking plastics, blow molding of PET bottles
Photovoltaic Industry: String soldering, preheating for sputtering processes
Printing Industry: Curing ink on cloth, drying printing products
Food & Chemical Industry: Disinfection, food heating, herbal medicine processing
Glass Industry: Preheating car glass, drying coatings, laminated glass manufacturing
Textiles Industry: Drying coatings, laminating fabrics
Electronic Industry: Coatings on components, component aging
