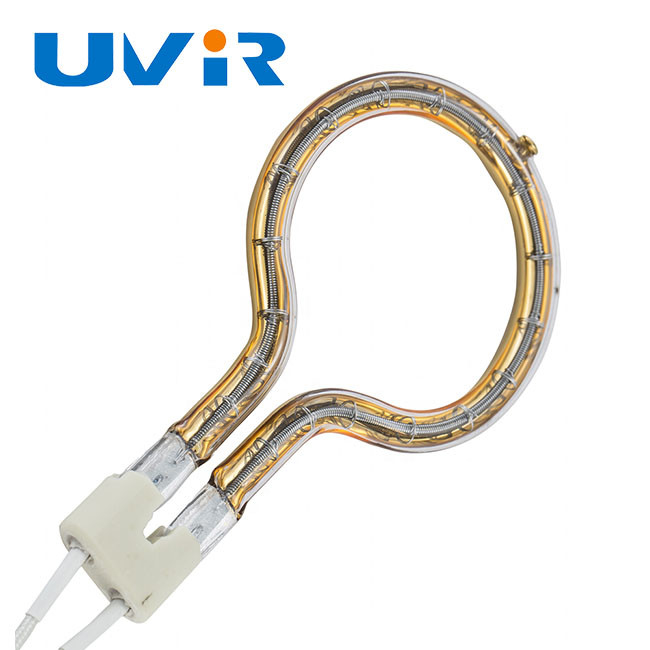

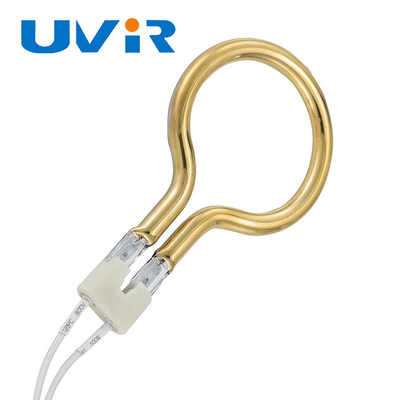

2000W Gold Coated Quartz Ring Infrared Lamp 8mm Diameter

Name

2000W Gold Coated Quartz Ring Infrared Lamp 8mm Diameter

Brand Name:	UVIR
Model Number:	RHG800073
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Lamp Power(W)::

2000W

Color ::

Gold Reflector

Warranty ::

230V

Tube Diameter::

8mm

Respend Time ::

1-2

Cable Wire::

Teflen / Textile Wire / High Temperature Resistant Wire

Filament Temperature::

1100-2600 ℃

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Quartz Ring Infrared Lamps

,

Infrared Heat Lamp Tube 8mm

,

8mm Ring Infrared Lamps

Product Description

Quartz Ring Infrared Lamps, Infrared Heat Lamp Tube 8mm Diameter

Product Specifications

Attribute	Value
Lamp Power (W)	2000W
Color	Gold Reflector
Warranty	230V
Tube diameter	8mm
Response Time	1-2 seconds
Cable Wire	Teflon / textile wire / High Temperature Resistant wire
Filament Temperature	1100-2600 ℃

Customized Quartz Heating Accessories Ring Type Infrared Lamp with Gold Coating

Short Wave IR Lamp Advantages

Wavelength controlled in the range of 0.76 ~ 1.4 μm, allowing selection based on workpiece material characteristics
High thermal efficiency with infrared radiation efficiency exceeding 86% in specific wavelengths
Minimal thermal inertia - reaches 50% rated power in 1-2 seconds, full power in 2-4 seconds
Compact size with large power capacity - single heating tube can exceed 6000W

Product Details

Type	Ring tube IR lamp
Voltage	230V
IR diameters	154mm
Power	2000W
Lamp tube material	8mm
Angle of use	Horizontal/vertical

Ring Tube IR Lamps Features

Ring diameter options from 39mm to 600mm
Voltage range from 24V to 575V
Available in Short, Medium and Long-Wave IR designs
Multiple tube color options
Tube diameter options from 8-14mm
Standard stock items for immediate delivery
Custom and OEM designs available

2000W Gold Coated Quartz Ring Infrared Lamp 8mm Diameter 0

2000W Gold Coated Quartz Ring Infrared Lamp 8mm Diameter 1

2000W Gold Coated Quartz Ring Infrared Lamp 8mm Diameter 2

Stock and Standard (Non-Stock) Short-Wave Ring Lamps

2000W Gold Coated Quartz Ring Infrared Lamp 8mm Diameter 3

115	250	8	39	0	RHC800023	RHG800063	RHG800064	RHG800065
120	650	10	32	90	RHC800028	RHG800078	RHG800043	RHG800093
230	1500	8	80	0	RHC800024	RHG800066	RHG800067	RHG800068
230	1850	8	102	90	RHC800025	RHG800025	RHG800025	RHG800025
230	2000	8	154	90	RHC800026	RHG800072	RHG800073	RHG800074
230	2200	8	180	90	RHC800027	RHG800075	RHG800076	RHG800077

If the parameter is not suitable for you, please contact us. Our professional team can provide expert knowledge and custom drawings.

Product Coding Rule Table

2000W Gold Coated Quartz Ring Infrared Lamp 8mm Diameter 4

Customized Service

All infrared heater lamps are customized to your specific requirements
Professional technicians provide one-to-one service
Can produce single units for quality testing
OEM services available including logo printing

After-sale Service

Warranty: 5,000 hours for Short wave Infrared heat lamps
Non-man-made quality issues during warranty period will be replaced immediately at no charge

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for you to check and test.

Do you have any MOQ limit?

Low MOQ, 1 piece for sample checking is available.

What about the lead time?

15 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." We maintain strict QC from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.

About customized service?

We can provide the right heat solution and offer OEM services, including logo printing on your products.

About after-sale service?

Any confirmed quality issues will be compensated.
