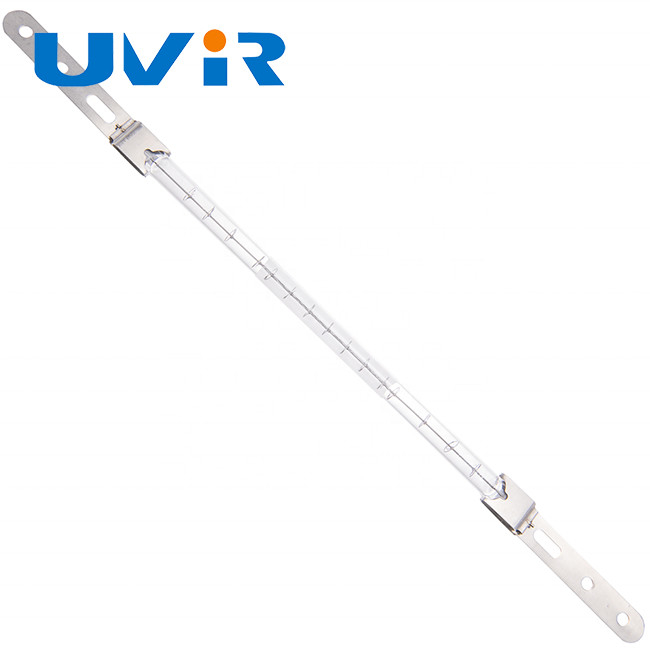

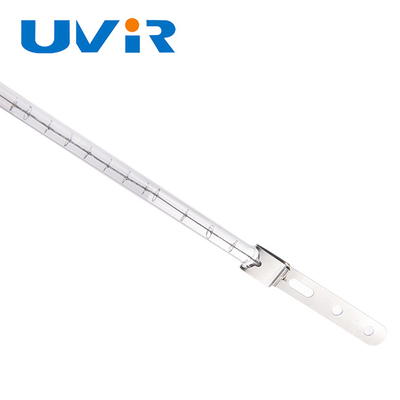

1500W Short Wave IR Halogen Heating Lamp 230V X Base

1500W Short Wave IR Halogen Heating Lamp 230V X Base

Brand Name:	UVIR
Model Number:	SHW100057
MOQ:	10
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Wave Length:

Short Wave

Usage:

Heating

Wattage/Power:

1500W

Reflector:

White

Tube Diameters:

11.5mm

Material:

Quartz Tube/tungsten Wire

Warranty(Year):

1-Year

Total Length:

900mm

Heating Length:

800mm

Voltage:

230V

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box.

Highlight:

1500W IR Halogen Lamps

X Base IR Halogen Lamps

Single Tube IR Halogen Lamps

Product Description

X Base 1500W IR Halogen Lamps Emitters High Power Single Tube

Product Specifications

Attribute	Value
Wave Length	short wave
Usage	Heating
Wattage/Power	1500W
Reflector	White
Tube diameters	11.5mm
Material	quartz tube/tungsten wire
Warranty	1-Year
Total length	900mm
Heating length	800mm
Voltage	230V

X Base 1500W High Power Single Tube Infrared Emitters Heating Halogen Lamp

Key Benefits

Carbon Fiber Heat Lamp

High-priced imported carbon fiber filament
Smooth finished filament that doesn't fluff
Optimum power and maximum longevity

Quartz Glass Tube

High quality high-temperature quartz glass
Long service life: over 5000 hours
Nontoxic with no peculiar smell, eliminating risk of contamination

Product Details

Product name	Short wave IR heating lamp
Heating length	800mm (Customizable)
Voltage	235V (Customizable)
Wattage	1500W (Customizable)
Base	X
Material	Quartz tube
Reflector	White
OEM/ODM	Custom voltage, wattage, length, base, cables available

X-type Halogen Heating Lamps

Adopt high-quality transparent quartz tube material, effectively increasing the radiation density of infrared rays.

Infrared wavelengths are in the range of the 750nm to 1mm electromagnetic spectrum.

Stock and Standard (Non-Stock) Single Tube Short-Wave Lamps

If the parameter is not suitable for you, please contact us. Our professional team will provide expert knowledge and drawings for your specific needs.

Product Coding Rule Table

Application Scenarios

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products, such as using in banners machine

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical specifications.

We can produce many sizes and types of heat lamps according to customer requirements. If you have drawings available, we can create samples for you.
