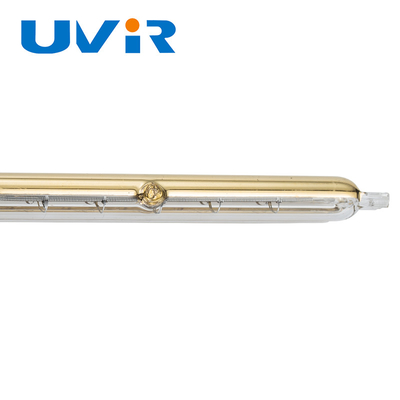

1100W Short Wave Halogen Infrared Heater for Edge Banding Machines

1100W Short Wave Halogen Infrared Heater for Edge Banding Machines

Brand Name:	UVIR
Model Number:	THC100897
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ROHS

Type:

Short Wave Halogen Infrared Heater

Material:

Quartz Glass

Warrant Time:

5000 Hours

Shape:

Straight

Power:

1100w

Place Of Origin:

Guangdong, China

Voltage:

230V

Length:

255mm

Packaging Details:

Each lamp in a cylinder .Then in a professional plywood box

Highlight:

Halogen Infrared Heater 1100w

Preheating Baking Infrared Lamp

255mm Infrared Lamp

Product Description

Edge Banding Machine Fast Heating Infrared Lamp For Preheating Baking

Product Specifications

Attribute	Value
Type	Short Wave Halogen Infrared Heater
Material	Quartz Glass
Warrant Time	5000 Hours
Shape	Straight
Power	1100w
Place of Origin	Guangdong, China
Voltage	230V
Length	255mm

Key Advantages

Infrared heater provides energy savings of up to 50% over other technologies
Consistent and reliable quality
24-hour customer support
CE, ISO9001, RoHS, SGS certified
Low minimum order quantity (1pc sample available)

Technical Parameters

Product name	Twin tube infrared lamp
UVIR NO.	THC100897
Voltage	230V
Power	1100W
Material	Quartz Glass
Color	Gold
Filament Temperature	1800-2400 ℃
OEM/ODM	Custom voltage, wattage, length, base, cables available

Premium Construction

Combining high-quality transparent quartz tube materials with halogen principles, this lamp effectively increases infrared radiation density to achieve optimal heating performance.

Technical Specifications

The quartz tube strength is significantly enhanced by a steel beam-inspired design, allowing twin tube lengths up to 6 meters (cross section: 33 X 14 mm).

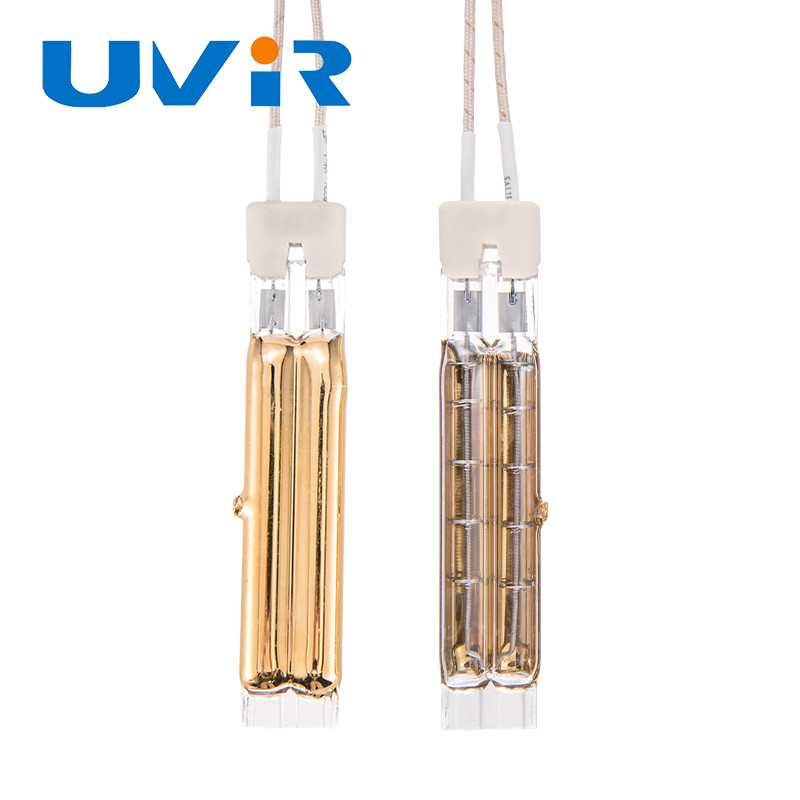

Twin Tube Specifications

Cross-Section	Maximum Length (m)	S-W	M-W
8x18	2.1	N	Y
23x11	3.5	Y	Y
33x14	4.0	Y	Y

Heater dimensions depend on required voltage/wattage relationship.

Standard Twin Tube Short-Wave Lamps

Voltage (V)	Wattage (W)	Twin Tube	Total Length	Heated Length	Design Type	Gold	White	Clear
55	400	11x23	115	50	B	THG100151	THW100025	THC100026
115	400	11x23	115	50	B	THG100152	THW100026	THC100027
115	450	11x23	70	25	B	THG100153	THW100027	THC100028
115	450	11x23	72	25	B	THG100154	THW100028	THC100029
115	600	11x23	145	80	B	THG100155	THW100029	THC100030

Quality Assurance

Our infrared heater lamps meet CE & ROHS standards, with strict quality control ensuring each unit meets exacting performance standards.

Customization Services

Custom infrared heater lamps tailored to your specific requirements
Professional technical support for one-to-one service
Single unit available for quality testing
OEM services including custom branding

Warranty & Support

5,000 hour warranty for short wave infrared heat lamps
Non-manufacturing defect replacements provided during warranty period

Frequently Asked Questions

What is the payment term?

100% prepayment via wire transfer, Paypal, or Western Union.

Can you provide samples for testing?

Yes, we can provide samples based on your required specifications.

What information should I provide when inquiring?

Please provide lamp type, dimensions, wattage, voltage, connection type, lead length, and coating preference. For new projects, include application details like material, required temperature, and heating size.
